GM LS3 Cylinder Heads - 3D Scan (STL) [Item: SBU]

Contributor: Scottify Designs

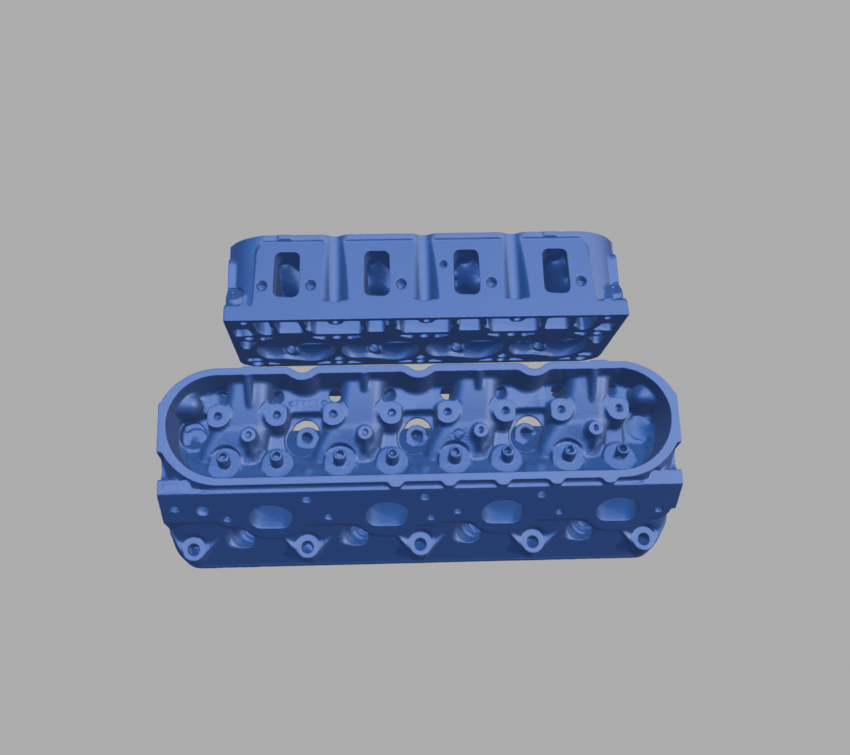

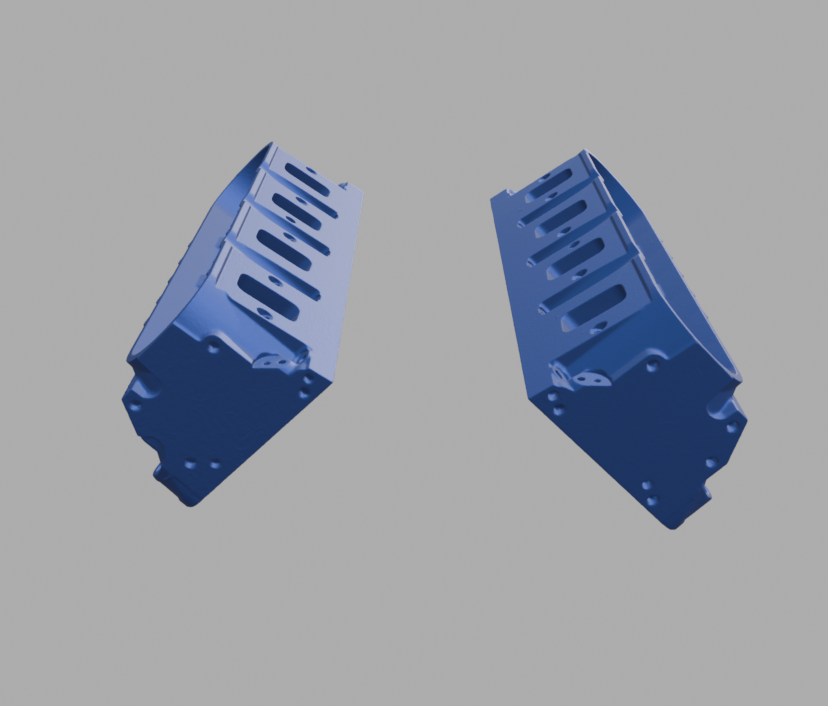

This high-resolution 3D scan captures a complete pair of GM LS3 cylinder heads, accurately representing their exterior geometry and mounting interfaces. The scan is intended for precise layout, fitment, and design work where LS3 head geometry is required.

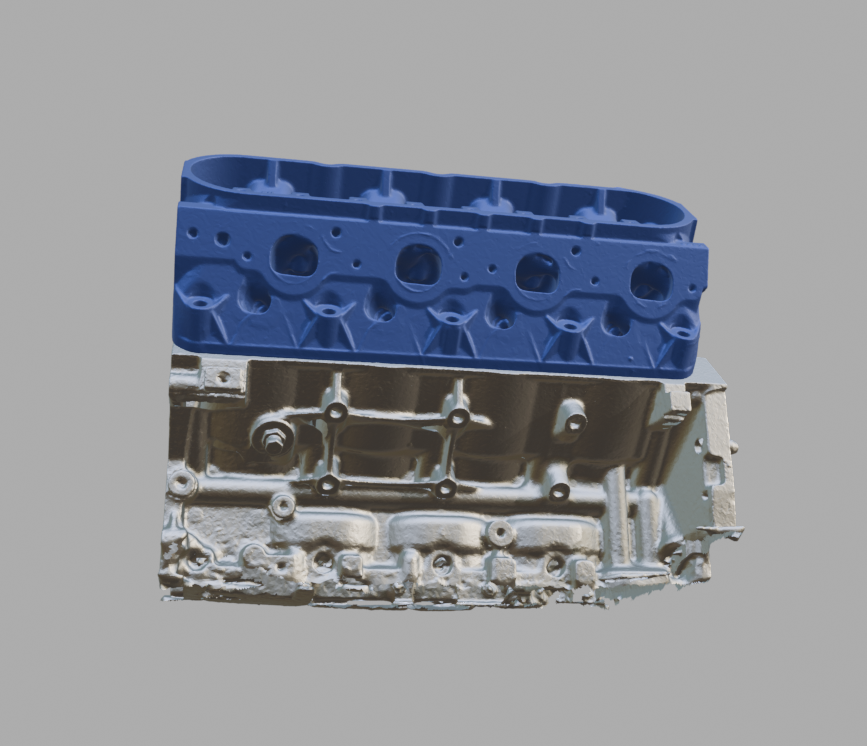

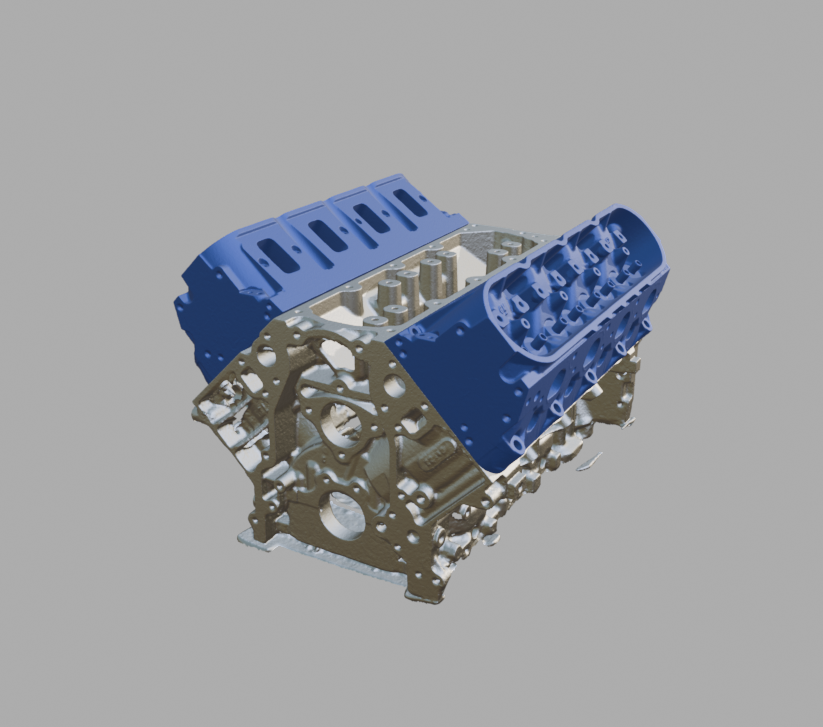

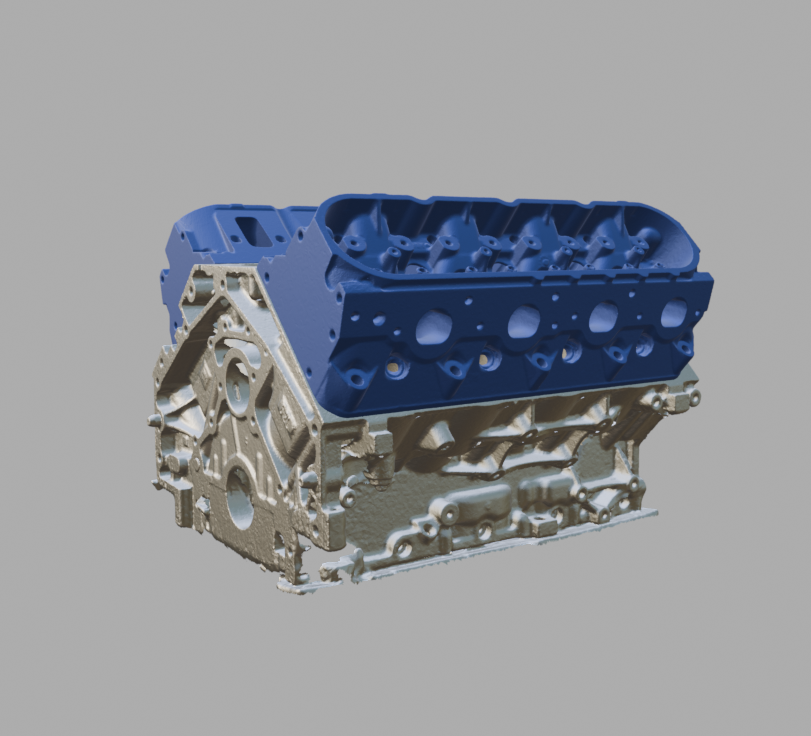

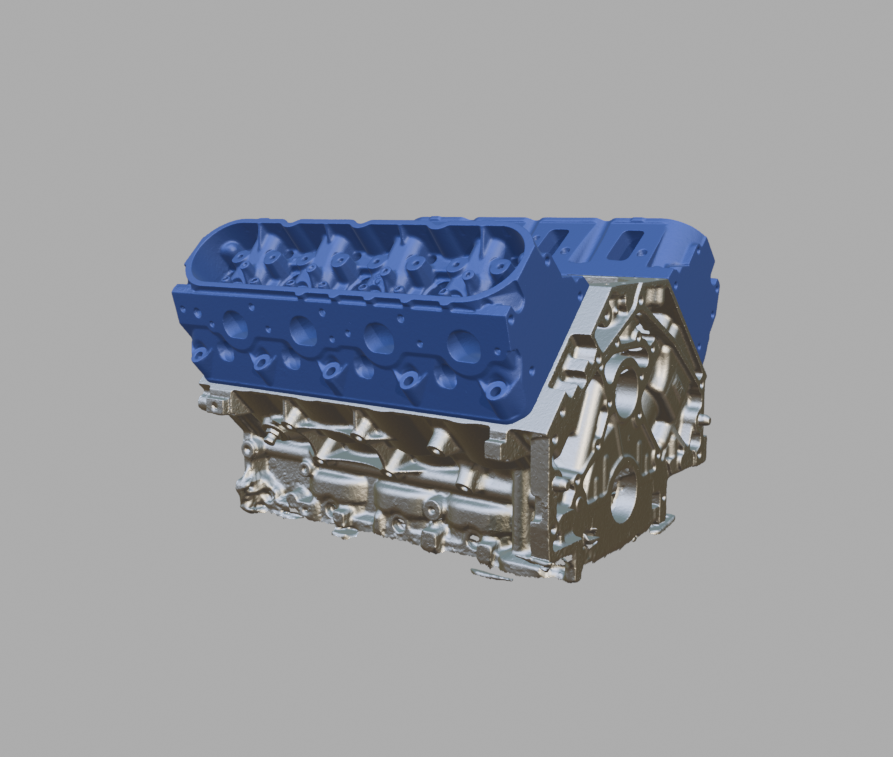

The heads have been digitally aligned to an LS engine block scan to ensure correct real-world positioning and orientation. The LS block itself is not included and is available as a separate scan.

The file is delivered as a clean STL at real-world scale and is compatible with most CAD, simulation, and 3D modeling software.

Important notes:

• This product includes LS3 cylinder heads only

• The LS block shown for alignment reference is not included

• Exterior geometry only (no internal port geometry)

Applications include:

• Engine bay and hood clearance studies

• Intake and exhaust manifold design

• Valve cover and accessory fitment

• Powertrain visualization and mock-ups

• Reverse engineering and CAD reference

File details:

• Format: STL

• Real-world scale

• Exterior geometry only

• LS3 heads aligned to LS block reference

• LS block not included

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

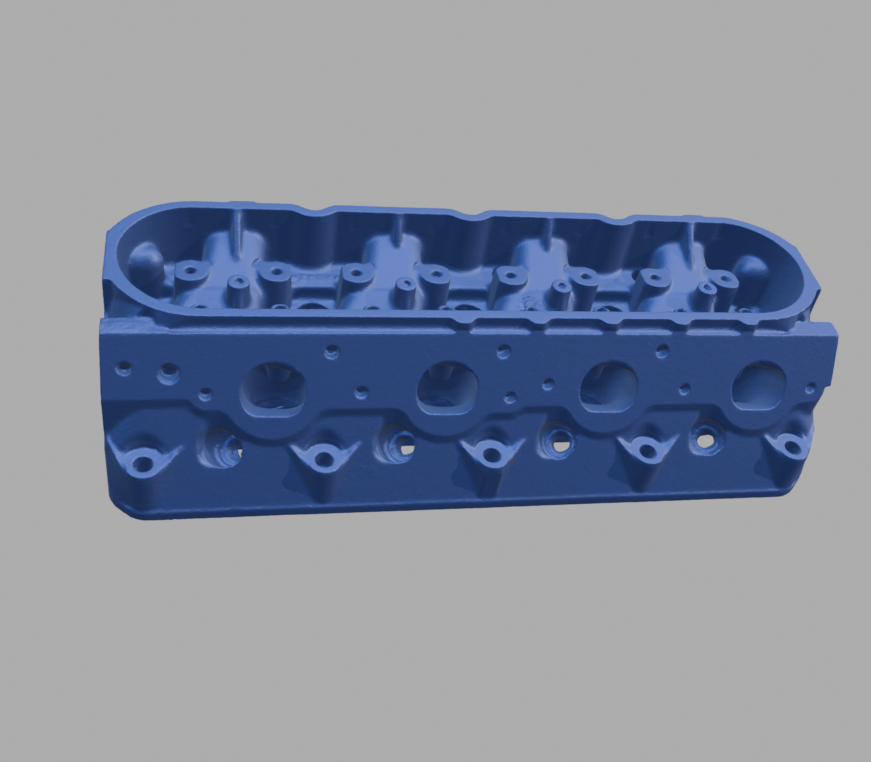

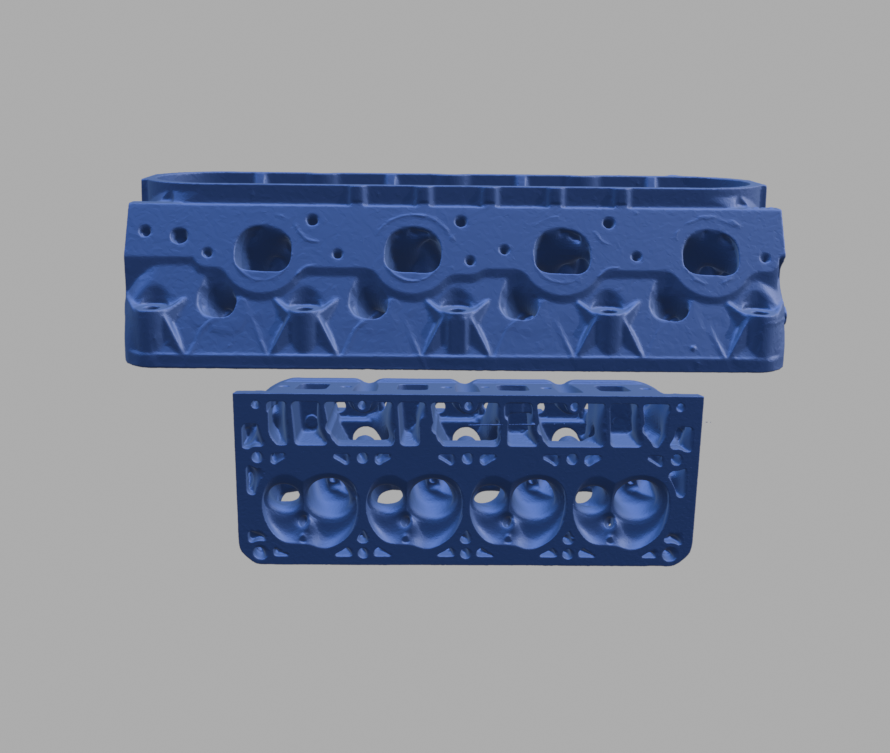

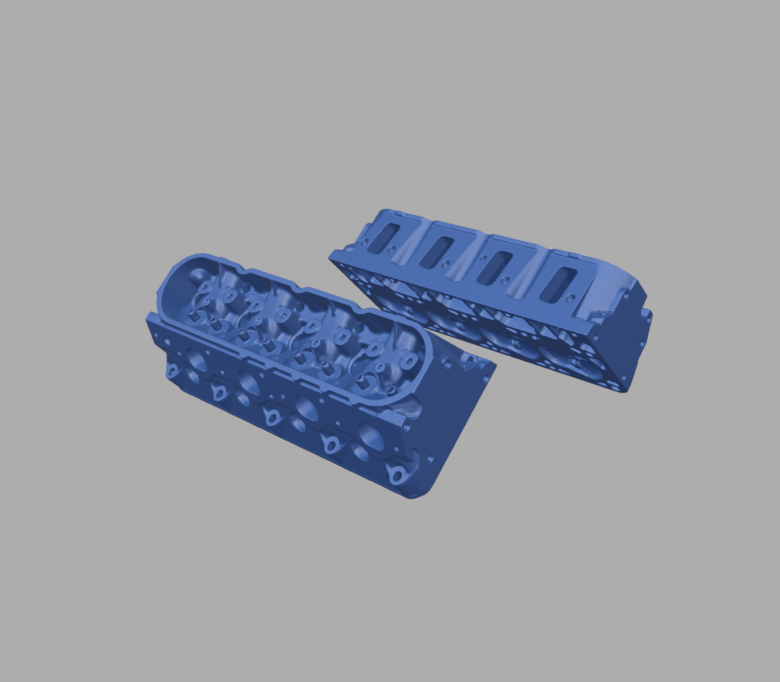

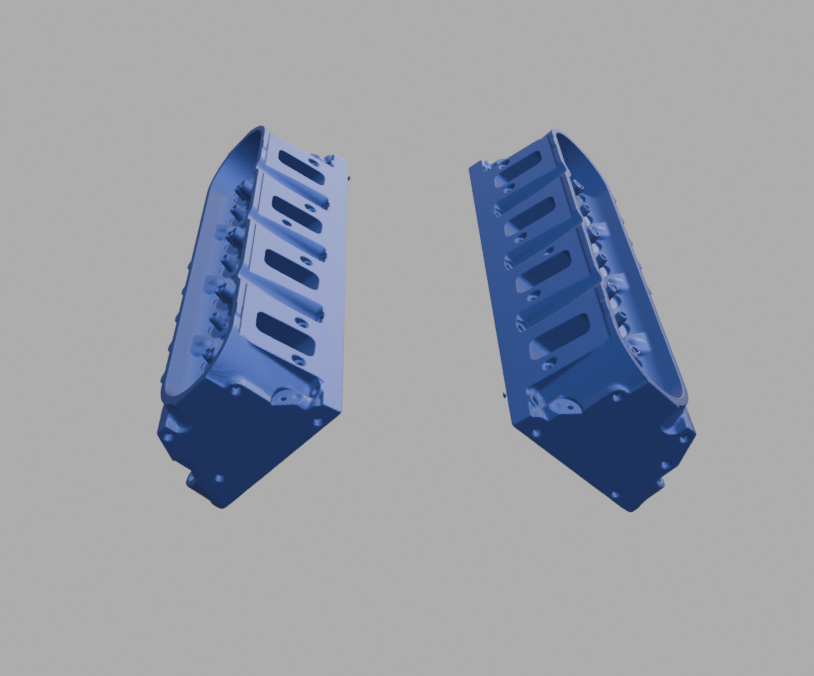

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
