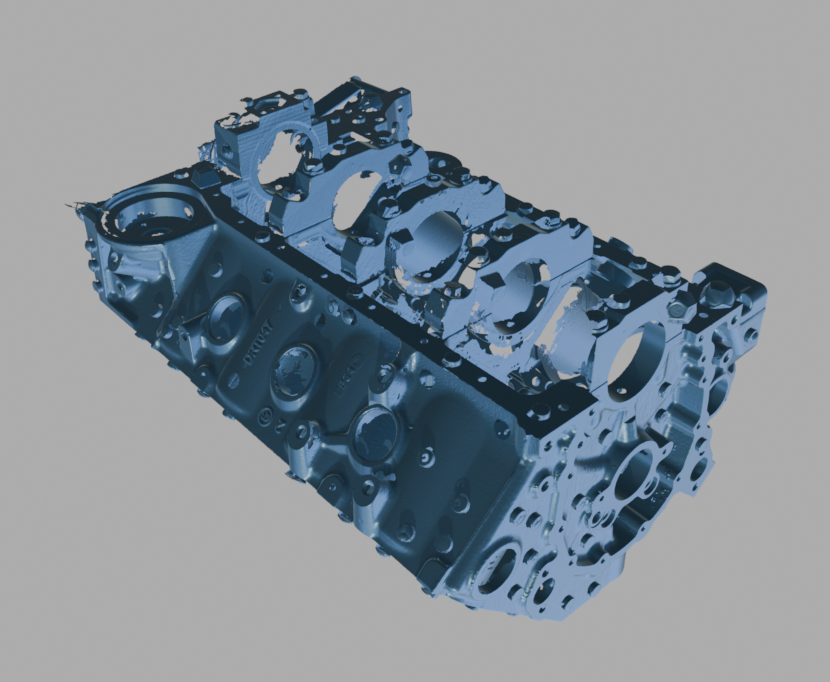

LS Engine Block - 3D Scan (STL) [Item: SBU]

Contributor: Scottify Designs

This 3D scan of a GM LS engine block captures most of the exterior geometry, making it ideal for engineering, packaging, and visualization work. The scan is suitable for CAD reference, mock-ups, reverse engineering, and digital twin applications where precise spatial relationships matter.

Detail has been preserved for Intake manifold design. Bottom of the block has not been fully captured.

This scan is delivered as a clean STL file, ready for immediate use in most CAD, simulation, and 3D printing workflows.

Applications include:

• Engine bay packaging and clearance checks

• Accessory bracket and mount design

• Powertrain integration and chassis development

• Visualization, rendering, and technical illustration

• Reverse engineering and reference modeling

File details:

• Format: STL

• Coordinate-accurate, real-world scale

• Exterior geometry only (no internal porting)

• Compatible with most CAD and 3D software

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

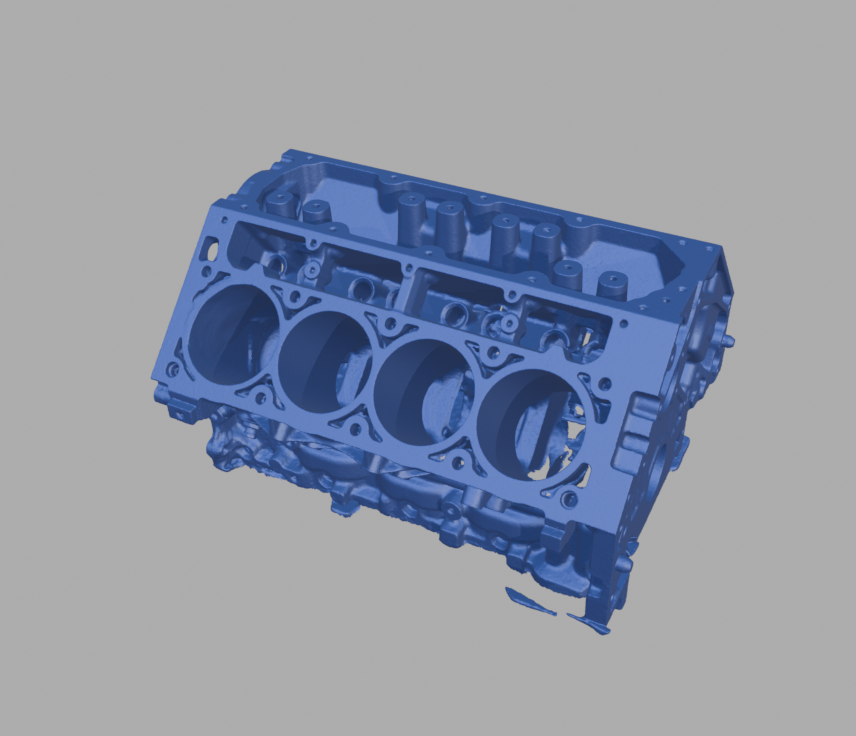

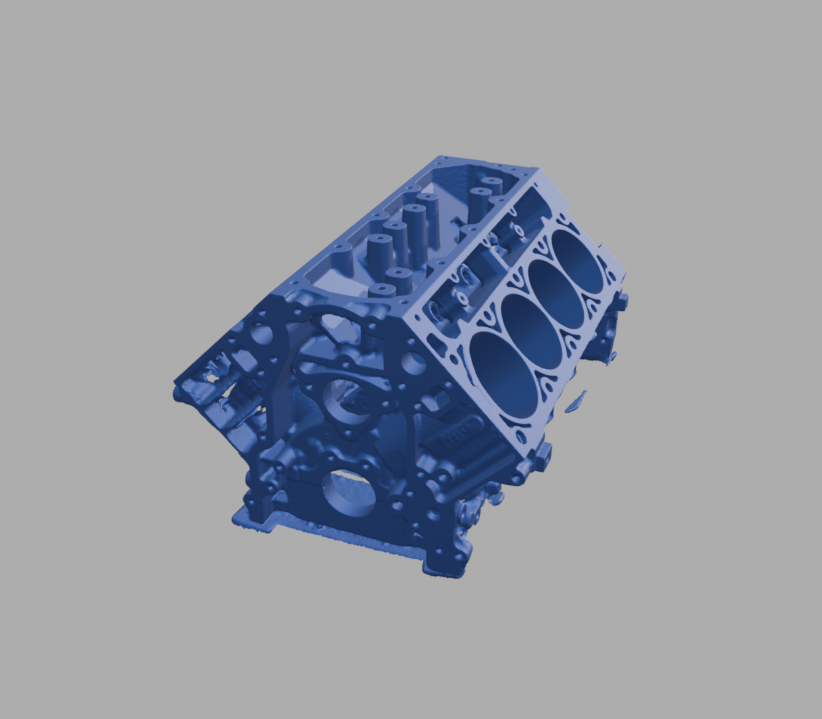

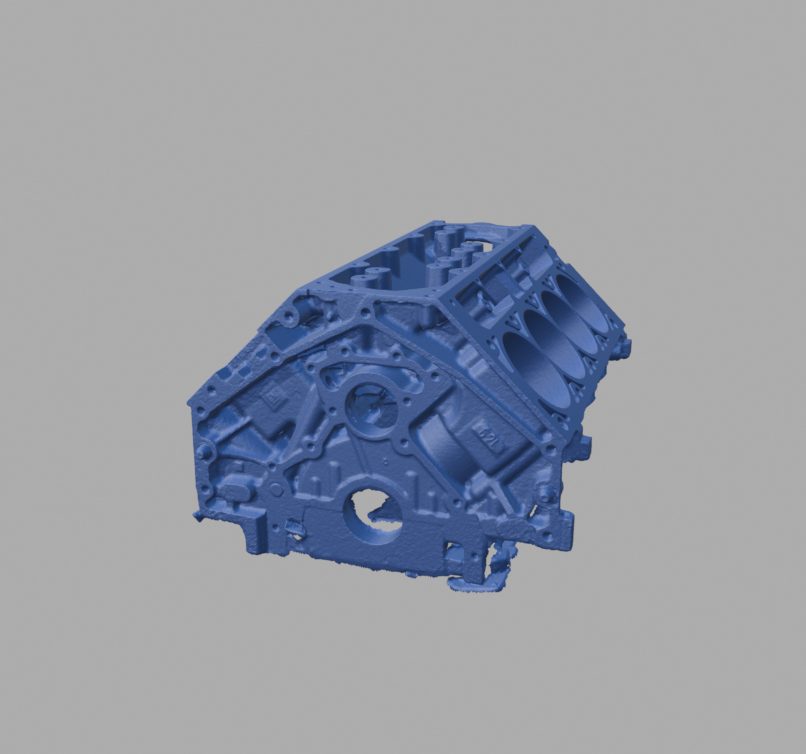

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
