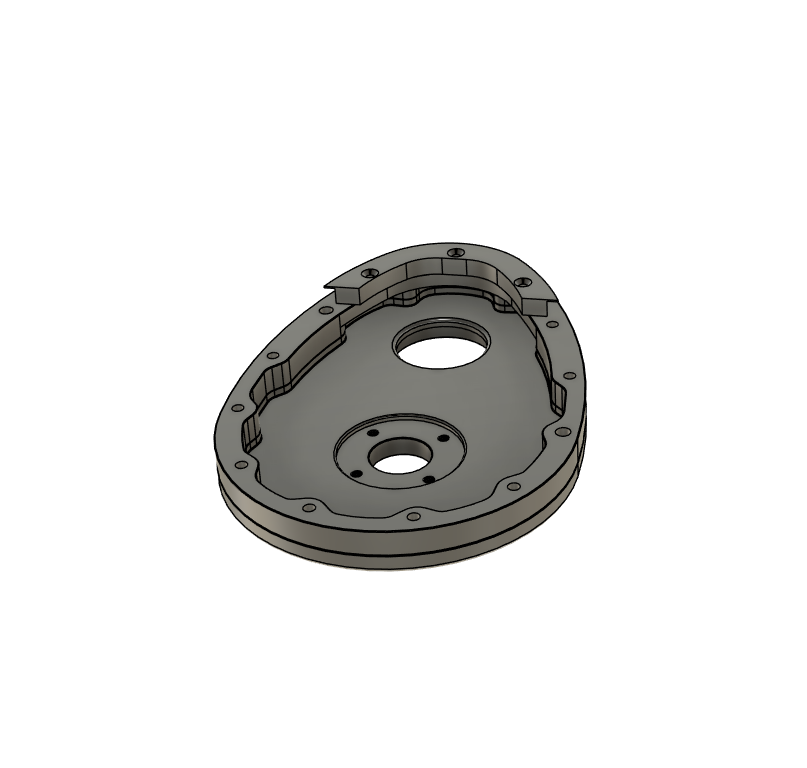

Small Block Chevrolet Automotive Timing Cover – CAD (.STEP) [Item: MHI]

Contributor: Matthew Hillocks

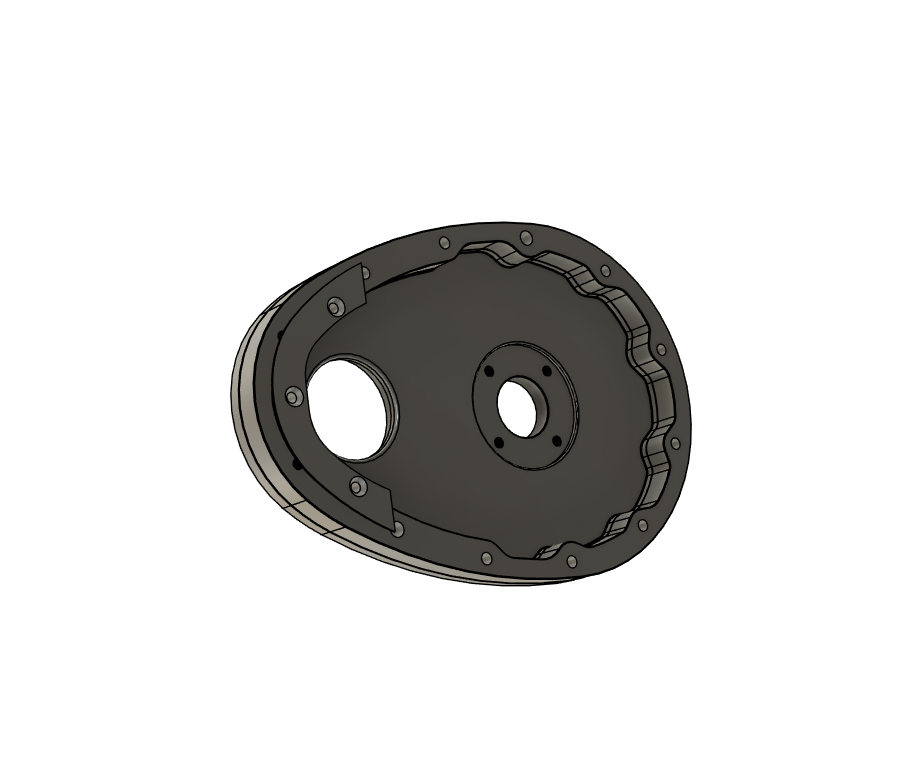

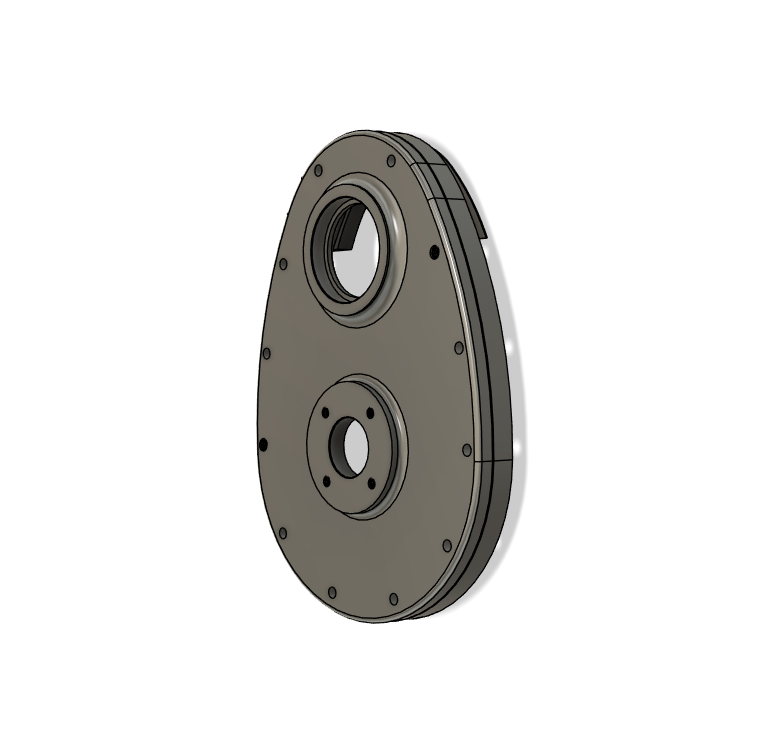

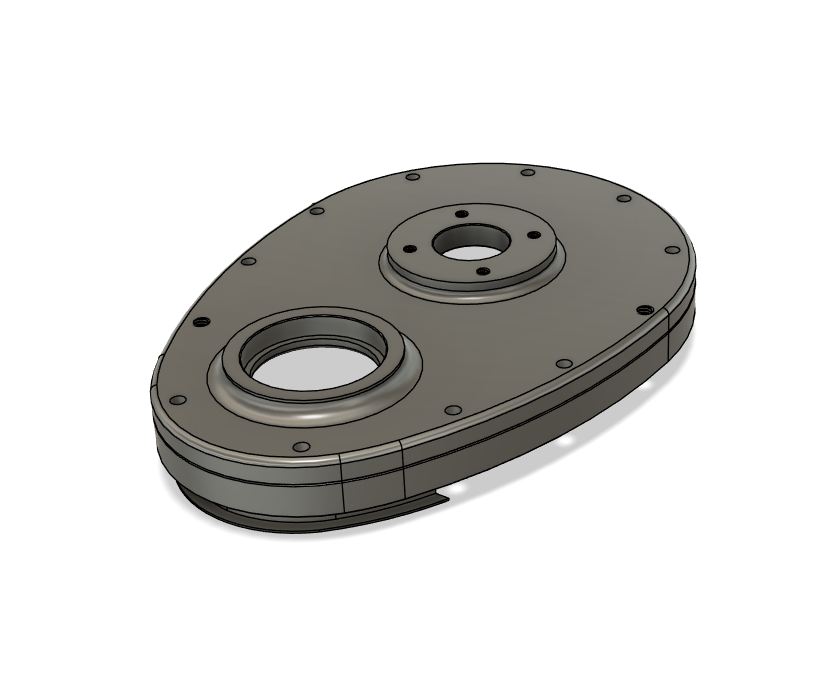

This listing provides a fully modeled CAD representation of a Small Block Chevrolet automotive timing cover, supplied as a STEP file for direct use in engineering and design workflows.

This version does not include marine water fitting tabs. It represents the standard automotive-style timing cover configuration used in conventional Small Block Chevrolet applications.

The file is delivered as a structured multi-body STEP model (not a scan), making it suitable for parametric editing, assembly integration, and custom accessory development.

Key Features

• Small Block Chevrolet automotive timing cover geometry

• No marine water fitting tabs

• Bolt hole locations and mounting flanges defined

• Front seal and accessory mounting interfaces modeled

• Multi-body STEP structure for easier modification and integration

• Thread clarifications included where applicable

Common Applications

• Automotive accessory bracket design

• Custom front drive system development

• Engine swap packaging studies

• Replacement component design

• CAD reference for drivetrain and front-end integration

File Suitability

Delivered as a STEP file compatible with most major CAD platforms including SolidWorks, Fusion, Inventor, Creo, and similar systems.

The multi-body structure allows users to isolate and modify features as needed within assembly workflows.

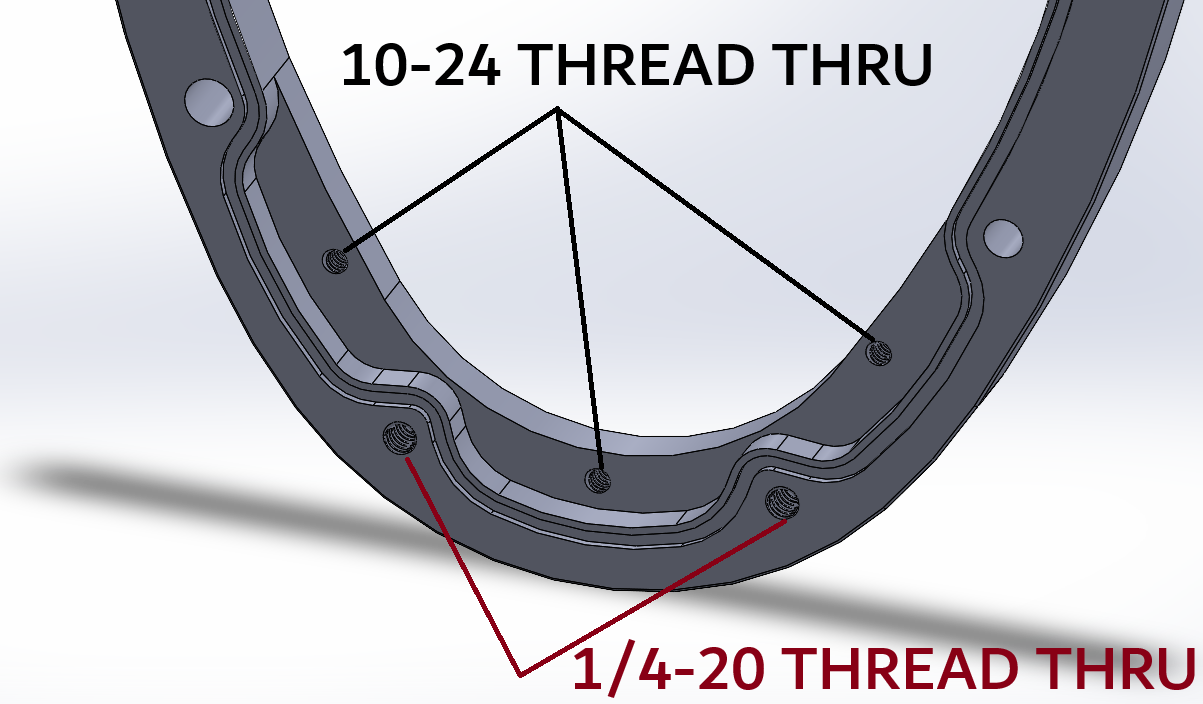

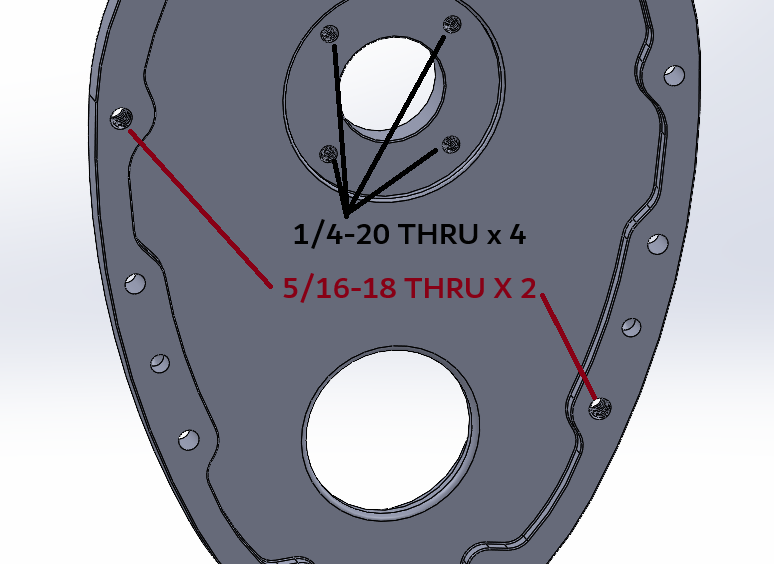

Thread callouts and clarifications are included to assist with correct fastener specification. Users should verify thread standards and seal compatibility for their specific engine configuration.

Disclaimer

Please review the provided images and file details prior to purchase to ensure suitability for your intended application.

While care has been taken to accurately model mounting geometry and interfaces, critical dimensions and sealing surfaces should be verified against your physical component if your project requires tight tolerances or production-level validation.
