73-79 Ford F-100 Short-Bed (SB) 2WD Partial Frame CAD [Item: PSU]

Contributor: Patrick Sukraw

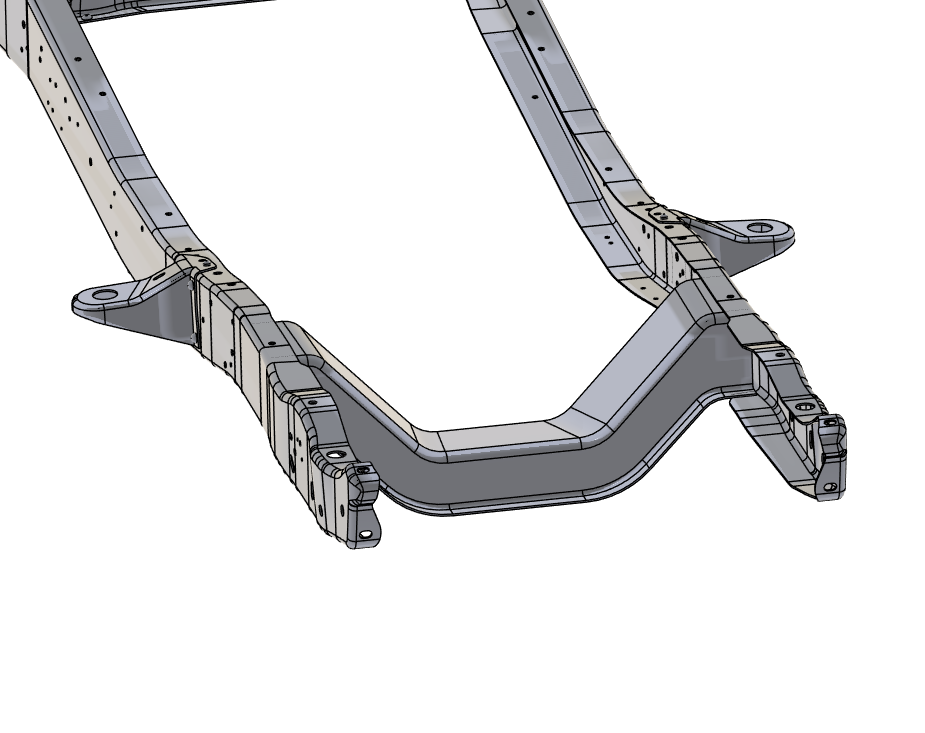

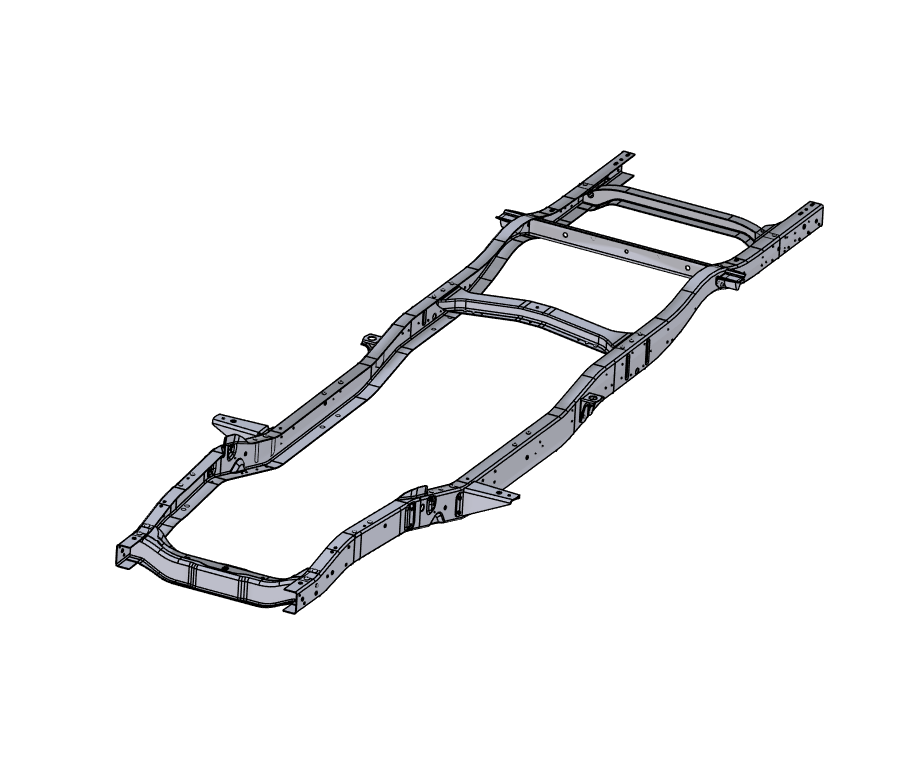

Partial CAD model of a 1973-1979 Ford F-100 short bed frame, supplied in Parasolid (.x_t / .x_b) format for professional CAD workflows.

This dataset represents the core frame rail geometry of the chassis but is not a complete frame model. Some crossmembers and secondary structural elements are missing. The model is best suited as a starting point or reference, rather than a fully finished chassis CAD.

Typical use cases include:

• Frame rail geometry reference

• Custom crossmember design and integration

• Suspension and drivetrain packaging studies

• Concept development and preliminary layout work

• Reverse engineering and fabrication planning

Because certain crossmembers are not present, users are expected to design or source those components independently based on their specific application. This model is ideal for engineers and builders who need accurate rail geometry and overall proportions without requiring a fully populated chassis assembly.

As with all reference CAD data, this model should be validated against physical measurements before manufacturing or structural use.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
