67-72 Ford F-100 Short-Bed (SB) 2WD Frame CAD [Item: PSU]

Contributor: Patrick Sukraw

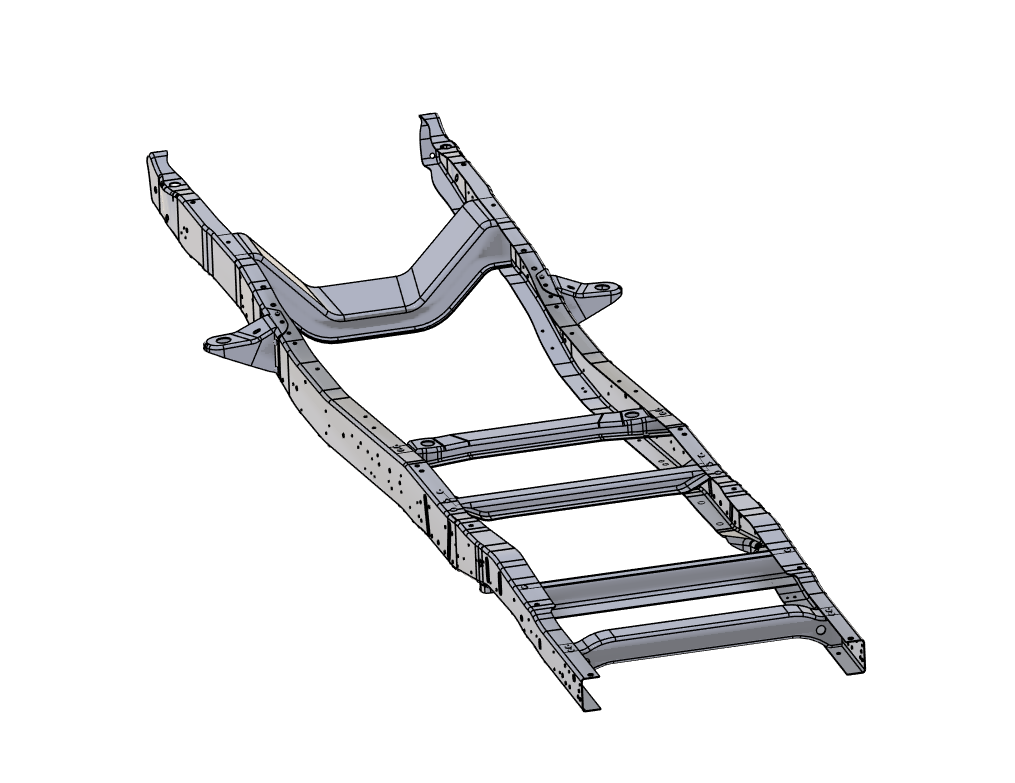

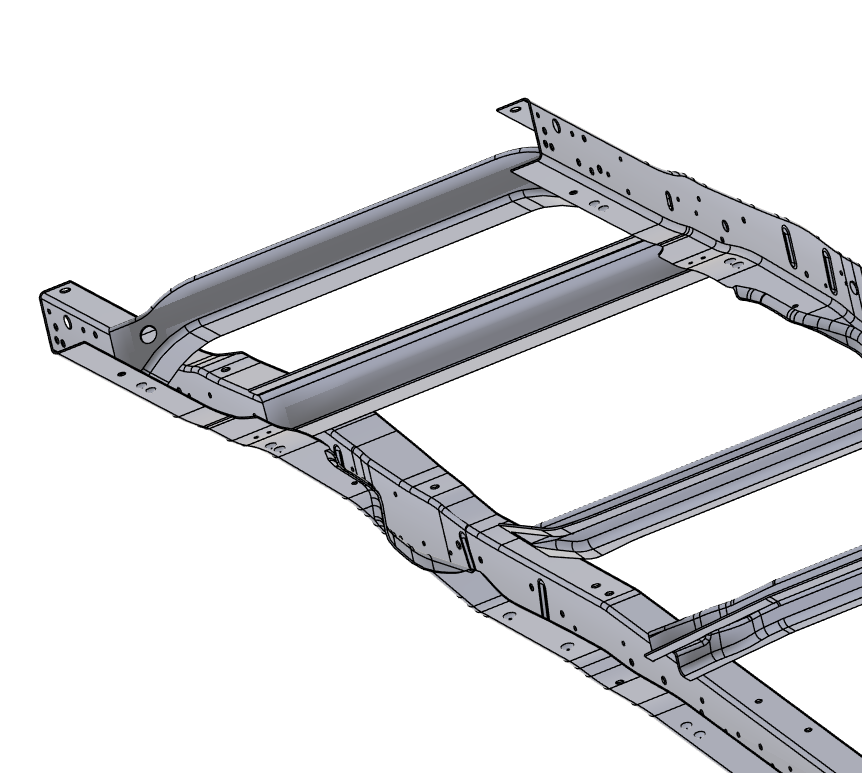

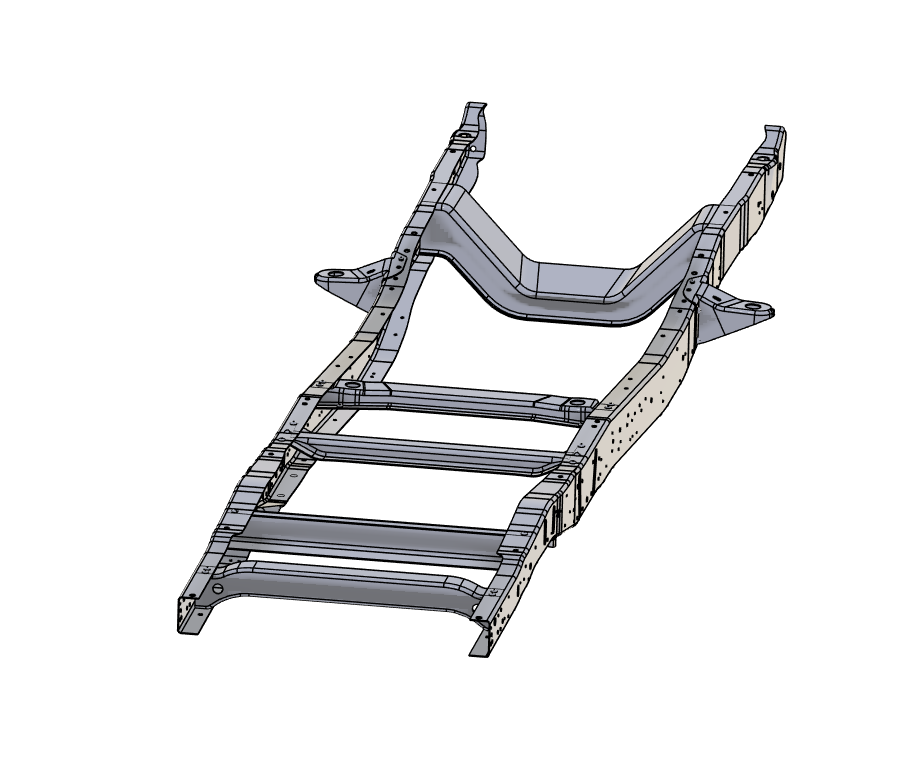

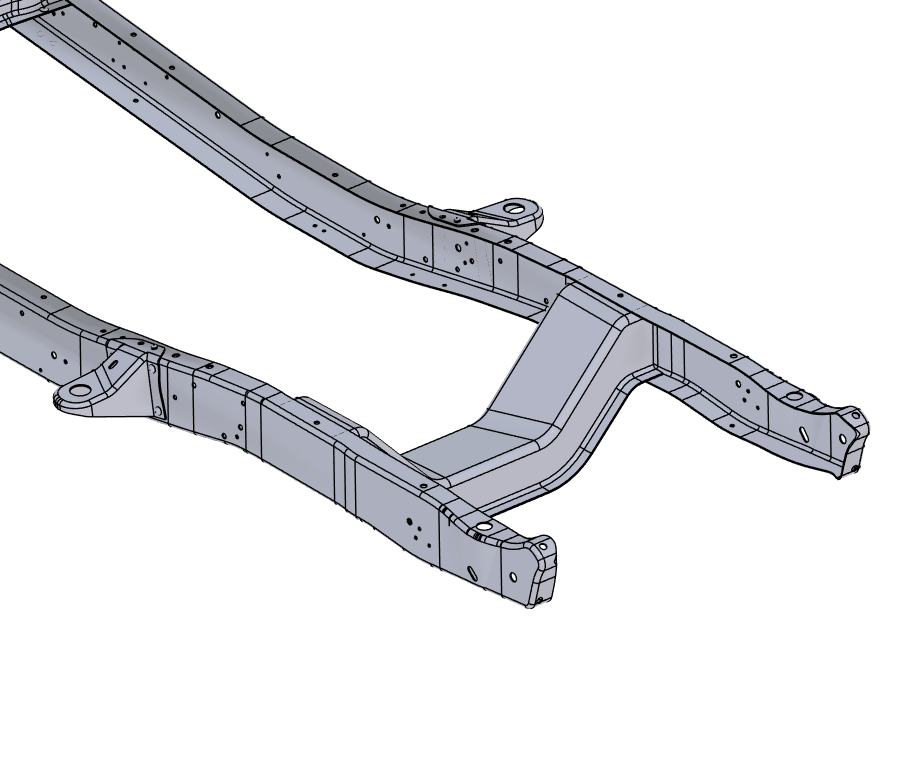

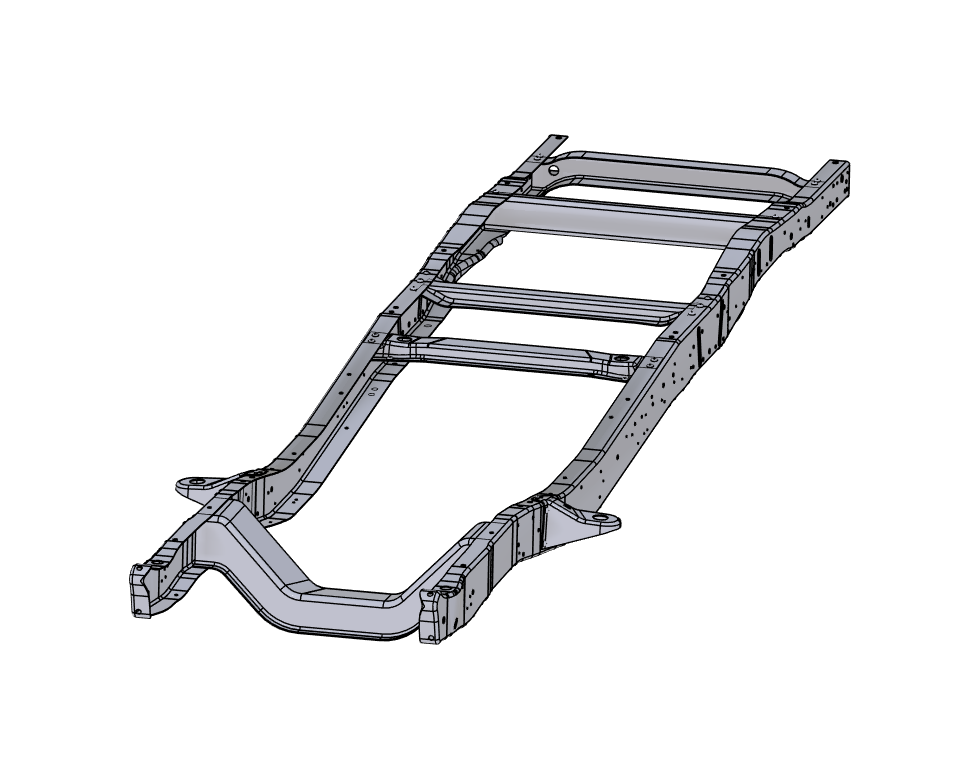

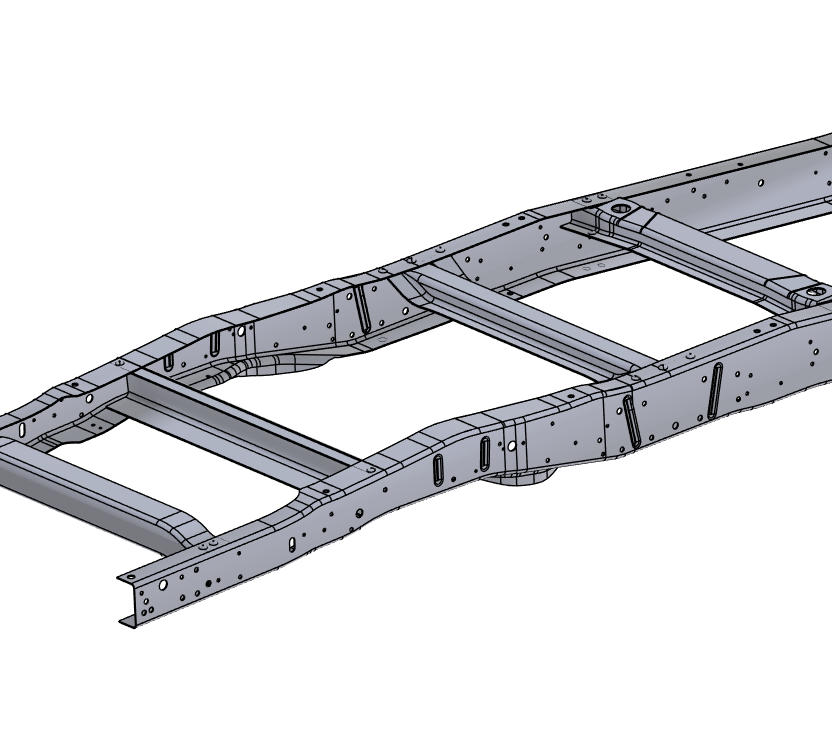

Comprehensive CAD model of a 1967-1972 Ford F-100 short bed 2WD frame, provided in Parasolid (.x_t / .x_b) format for professional CAD and engineering use.

This is a largely complete frame model, capturing the primary structural geometry of the chassis. It includes the main frame rails, crossmembers, mounting points, and overall layout suitable for detailed digital mockups and vehicle packaging work.

Typical applications include:

• Full vehicle layout and packaging studies

• Suspension and drivetrain fitment planning

• Body-to-frame alignment

• Custom chassis modification and fabrication reference

• Engineering analysis and concept development

The model is well-suited for designers, builders, and engineers who require a high-fidelity digital representation of the 1967–1972 F-100 short bed 2WD frame. While the CAD is detailed, it should still be treated as reference data — manufacturing tolerances, material specifications, and regulatory compliance are not defined.

This dataset provides an accurate foundation for professional design work, custom builds, and advanced CAD integration, without the overhead of unnecessary cosmetic detail.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
