64 Dodge Short-Bed (SB) Frame CAD [Item: PSU]

Contributor: Patrick Sukraw

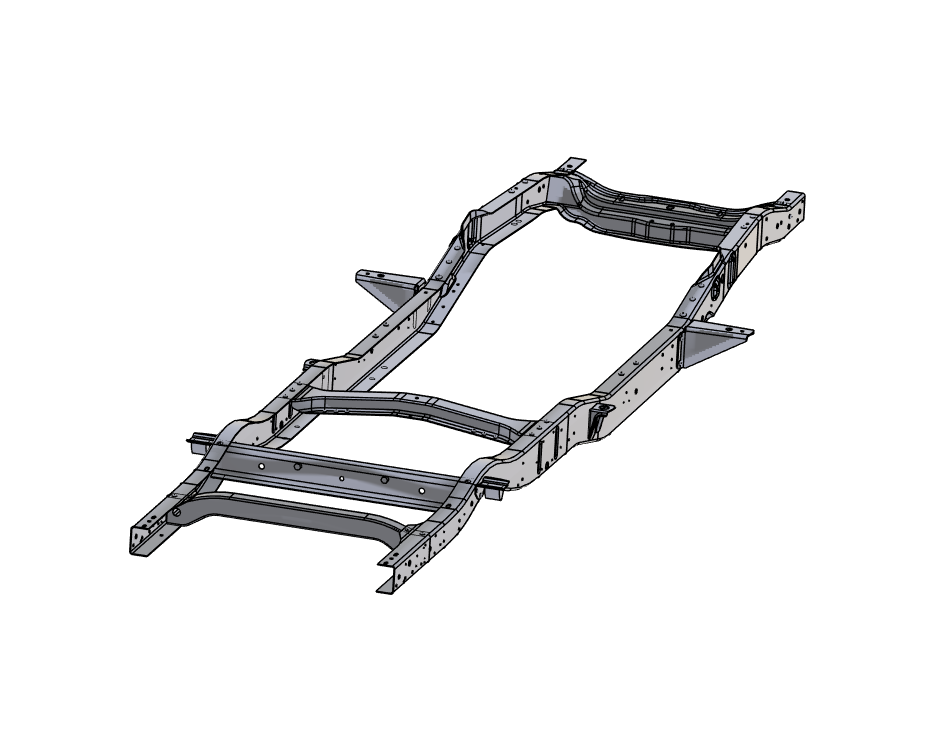

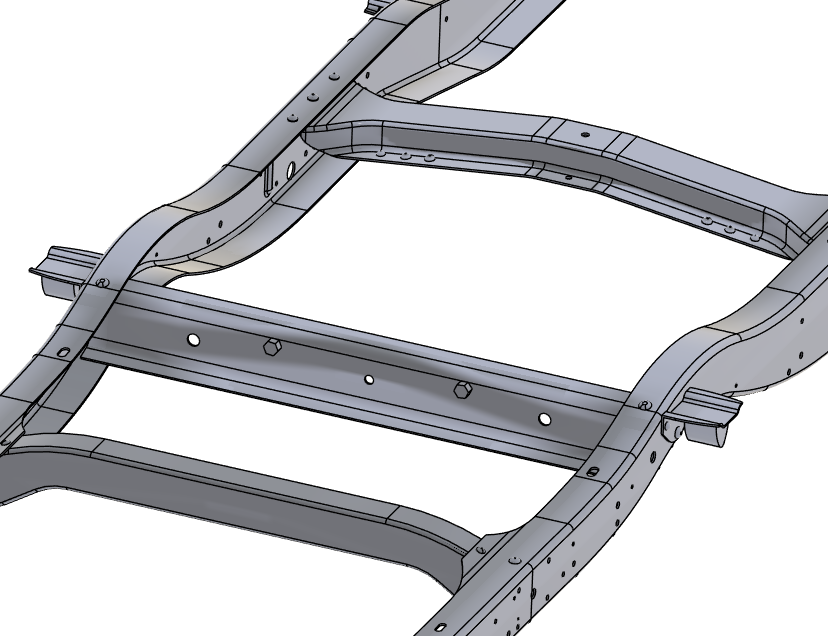

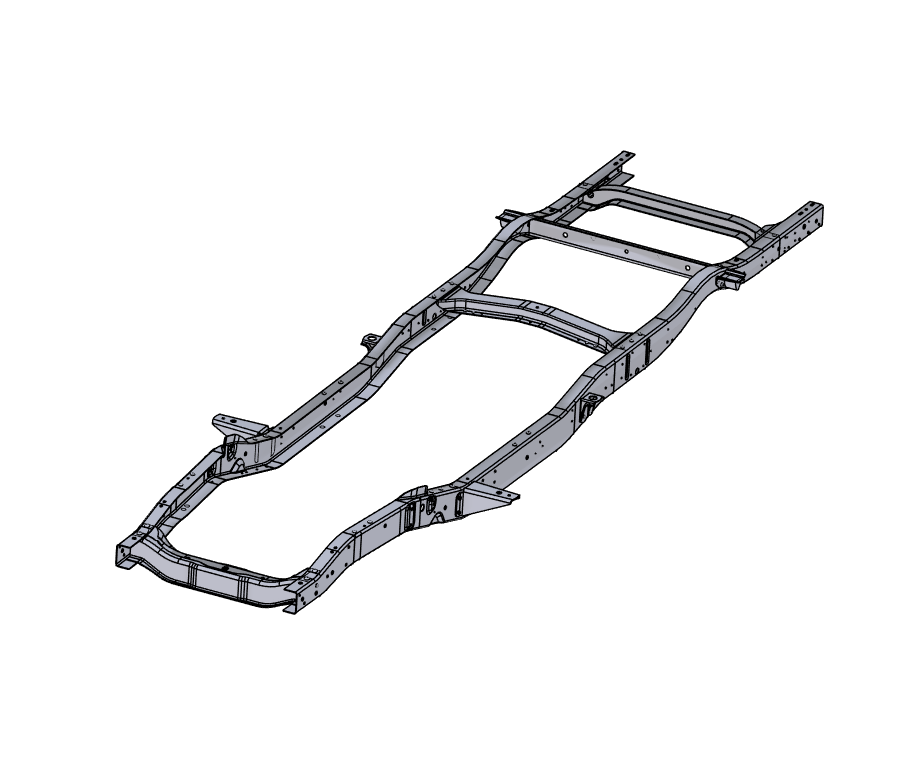

Precision CAD model of a 1964 Dodge Short-Bed (SB) frame, provided in Parasolid (.x_t / .x_b) format for high-fidelity compatibility with modern CAD and engineering workflows.

This model captures the overall structure, mounting geometry, and spatial layout of the frame, making it well-suited for:

• Powertrain and drivetrain fitment studies

• Engine and suspension packaging

• Chassis modification and design development

• Clearance checks and component integration

• Digital prototyping and reference modeling

The CAD data represents the structural geometry of the frame and is intended for design reference and development purposes. It should not be considered a certified or production-ready model. Manufacturing tolerances, material specifications, and vehicle-specific compliance data are not included.

This Parasolid model provides a solid foundation for engineers, builders, and designers working on classic Mopar platforms, enabling accurate digital integration while preserving the original frame architecture of the 1964 Dodge Short-Bed configuration.
