Subaru Impreza WRX Gen 2 Premium Pack - 3D Scan (STL)

This 3D scan captures the complete structural and upper interior geometry of the Subaru Impreza WRX Gen 2 Premium Pack, digitally preserved in STL format for accurate structural and dimensional reference. The Premium Pack includes comprehensive coverage of the chassis, roof, floor, dashboard structure, and key structural assemblies, providing an extensive digital foundation for fabrication, motorsport builds, and full vehicle CAD integration projects.

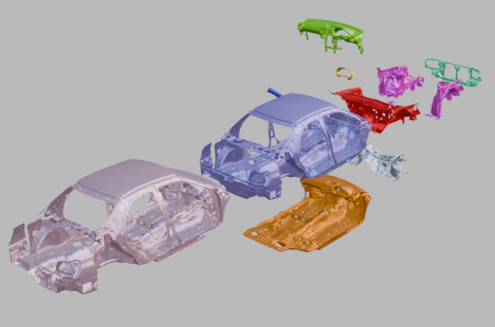

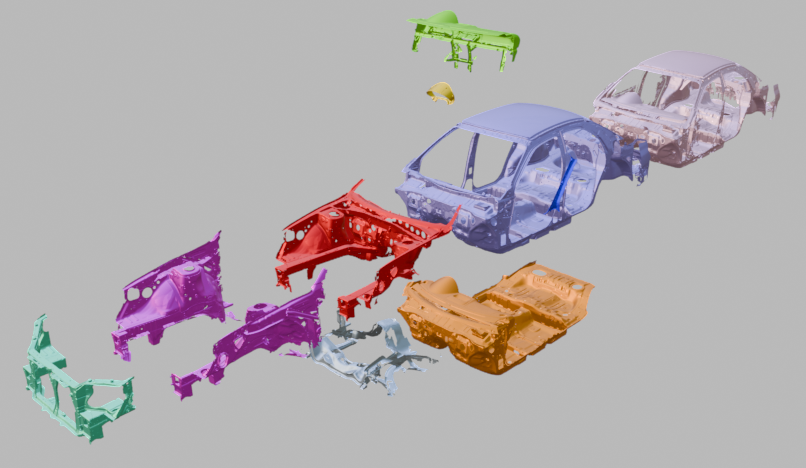

The dataset includes major structural and spatial features of the Gen 2 WRX body and interior, including:

• Complete chassis structure

• Front and rear floor pan contours

• Transmission tunnel geometry

• Chassis rails

• Roof curvature and upper structure

• A-pillar geometry and transitions

• Full dash assembly and instrument panel structure

• Center console integration areas

• Key mounting points for dash, pedals, and steering column

• Engine bay structure

• Engine bay cross member

• Radiator support frame

• Wheel tubs

• Bumper insert geometry

This expanded coverage makes the Premium Pack especially well suited for roll cage design, chassis reinforcement planning, widebody and aero development, drivetrain and engine integration, radiator and cooling package development, dash modification, interior fabrication, structural validation, and complete vehicle digital mockups where full-body reference geometry is required.

Due to the complexity of scanning full structural assemblies and interior components, this dataset may contain minor incomplete areas and small holes where surfaces were obstructed or difficult to capture. Despite these imperfections, the scan provides strong dimensional context and practical reference geometry that can significantly accelerate design, fitment, and fabrication workflows compared to working from manual measurements alone.

Common Applications

Roll cage and chassis reinforcement design

Roof and aerodynamic component development

Custom dash and interior panel fabrication

Drivetrain, engine bay, and suspension integration

Cooling system and radiator package development

Full vehicle digital mockup and structural validation

Reverse engineering structural and interior components

File Suitability

Ideal for CAD reference, mount design, structural planning, engine bay integration, interior modification, and fabrication workflows requiring accurate chassis, roof, dash, and engine bay geometry.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential. Please refer to the provided part images to evaluate file quality and representation. While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing. Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
