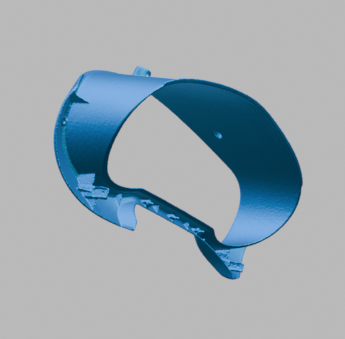

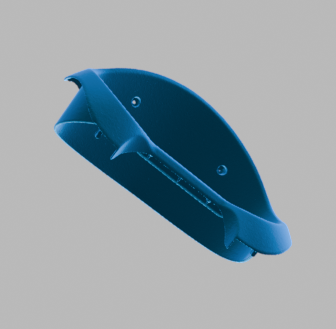

This 3D scan captures the instrument panel of a Subaru Impreza WRX, digitally preserved in STL format for accurate geometry and dimensional reference. The scan focuses on the interior panel assembly, including molded contours, mounting points, and surface details, providing a reliable reference for restoration, custom fabrication, and interior modification projects.
The dataset includes major features of the Gen 2 WRX instrument panel, such as the dashboard top and lower surfaces, instrument cluster recess, center console interfaces, and attachment points for gauges, vents, and switches. This makes it well suited for interior restoration, custom panel fabrication, motorsport projects requiring dash modification or clearance checks, and full vehicle digital mockups where accurate interior geometry is essential.
Due to the complexity of scanning contoured interior components, this dataset may contain minor incomplete areas or small holes where surfaces were obstructed or difficult to capture. Despite these imperfections, the scan provides strong dimensional context and practical reference geometry that can significantly accelerate design, fitment, and fabrication workflows compared to working from manual measurements alone.
Common Applications
Custom instrument panel fabrication and modification
Gauge, vent, and switch mounting design
Interior restoration and replacement part design
Full vehicle digital mockup and interior reference
Reverse engineering dash components for aftermarket or motorsport applications
File Suitability:
Ideal for CAD reference, interior design, component mounting, and fabrication workflows requiring accurate instrument panel geometry.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential. Please refer to the provided part images to evaluate file quality and representation. While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing. Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
