Subaru Impreza WRX Gen 2 Chassis and Roof - 3D Scan (STL)

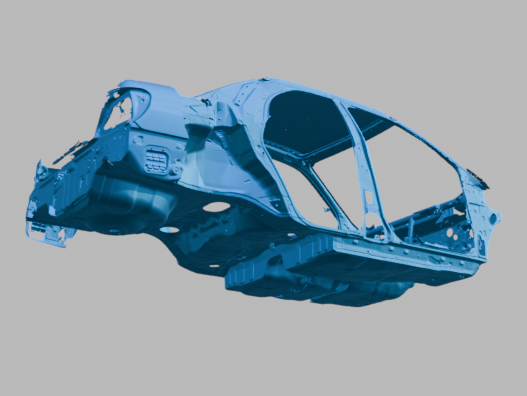

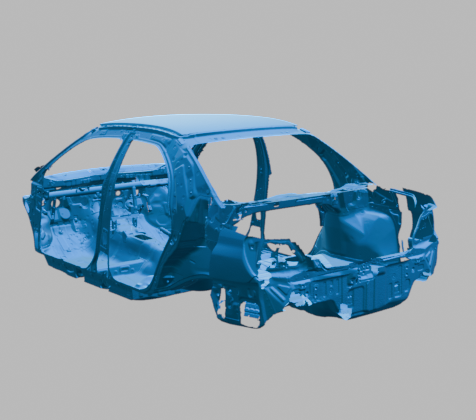

This 3D scan captures the chassis and roof structure of a Subaru Impreza WRX, digitally preserved in STL format for accurate structural and dimensional reference. The scan focuses on the primary body shell geometry, including floor structure, chassis rails, roof contours, and key interface regions relevant to fabrication and motorsport development.

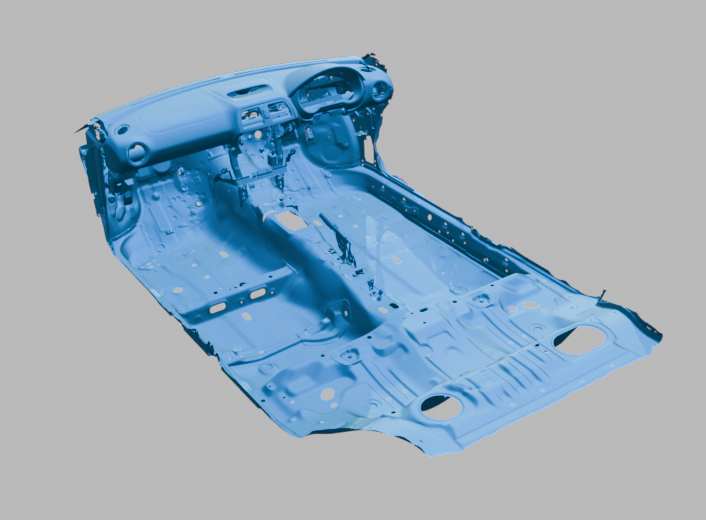

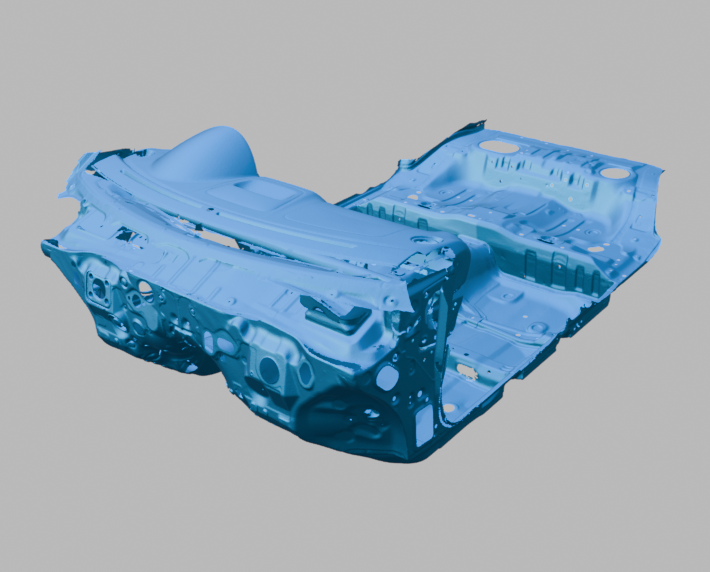

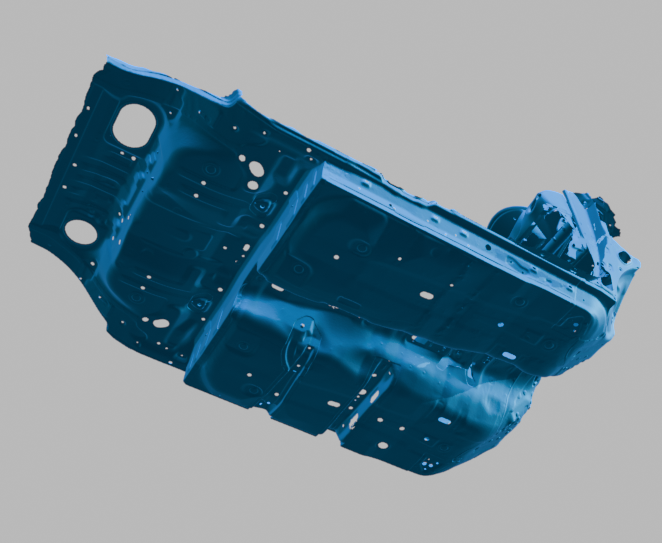

The dataset provides practical reference geometry for projects requiring accurate body shell proportions and mounting context. Major structural and spatial features are represented, including front and rear floor pan contours, transmission tunnel geometry, roof curvature, pillar transitions, and primary structural alignment surfaces. This makes it well suited for chassis reinforcement planning, roll cage integration, aerodynamic development, body panel fabrication, and full vehicle digital mockups.

Due to the complexity of scanning large structural assemblies, the dataset may contain minor incomplete regions, small holes, or mesh artifacts in areas that were obstructed or difficult to capture. Despite these imperfections, the scan provides strong dimensional context and significantly accelerates design, fitment validation, and packaging workflows compared to relying solely on manual measurement.

Common Applications

• Roll cage and chassis reinforcement design

• Roof scoop, aero, and body panel development

• Custom widebody and exterior fabrication planning

• Full vehicle CAD mockup and digital fitment validation

• Motorsport shell preparation and compliance layout

• Reverse engineering structural and exterior components

File Suitability
Ideal for CAD reference, structural integration planning, and fabrication workflows requiring accurate chassis and roof geometry.

Disclaimer:

We encourage you to download the sample file to assess scan format, mesh density, and software compatibility within your workflow. Different CAD and mesh-processing programs may interpret STL data differently, so confirming performance in your preferred environment is recommended.

Please refer to the provided preview images to evaluate overall scan quality and surface representation.

While every effort has been made to maintain accurate geometry during capture and processing, critical dimensions should always be verified against the physical chassis if your application requires tight tolerances or structural certification.

Reviewing both the sample file and preview images will help ensure the scan meets your project requirements prior to purchase.
