Raptor R Series Supercharger Head Unit - 3D Scan (STL) [Item: MHI]

Collaborator: Matthew Hillocks

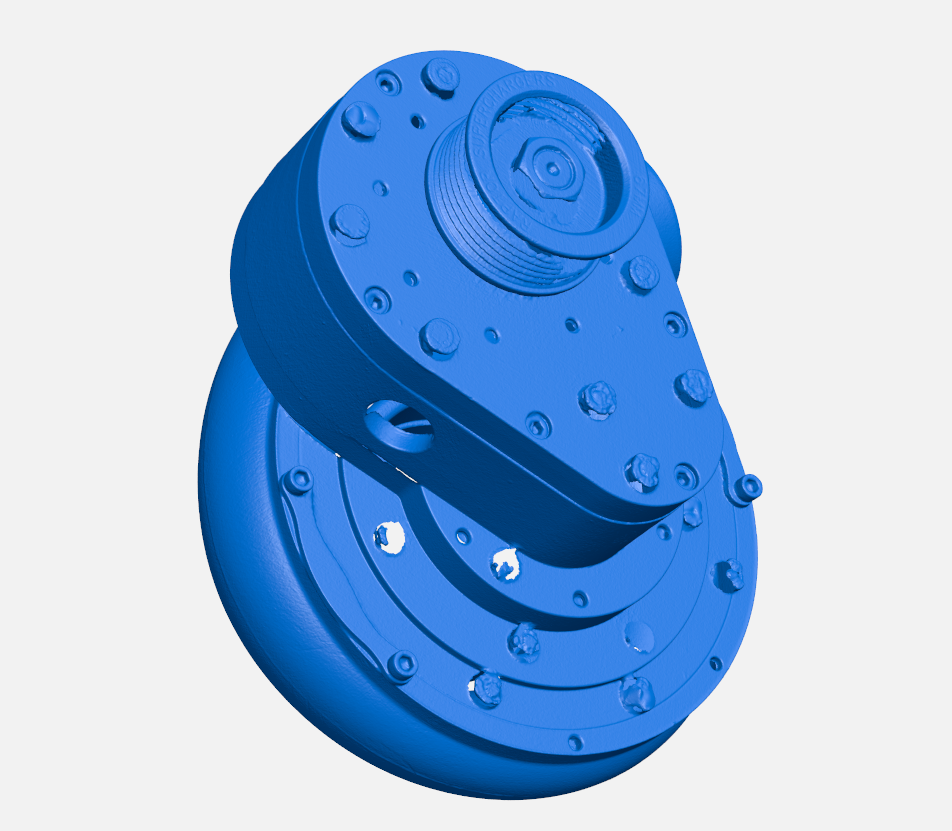

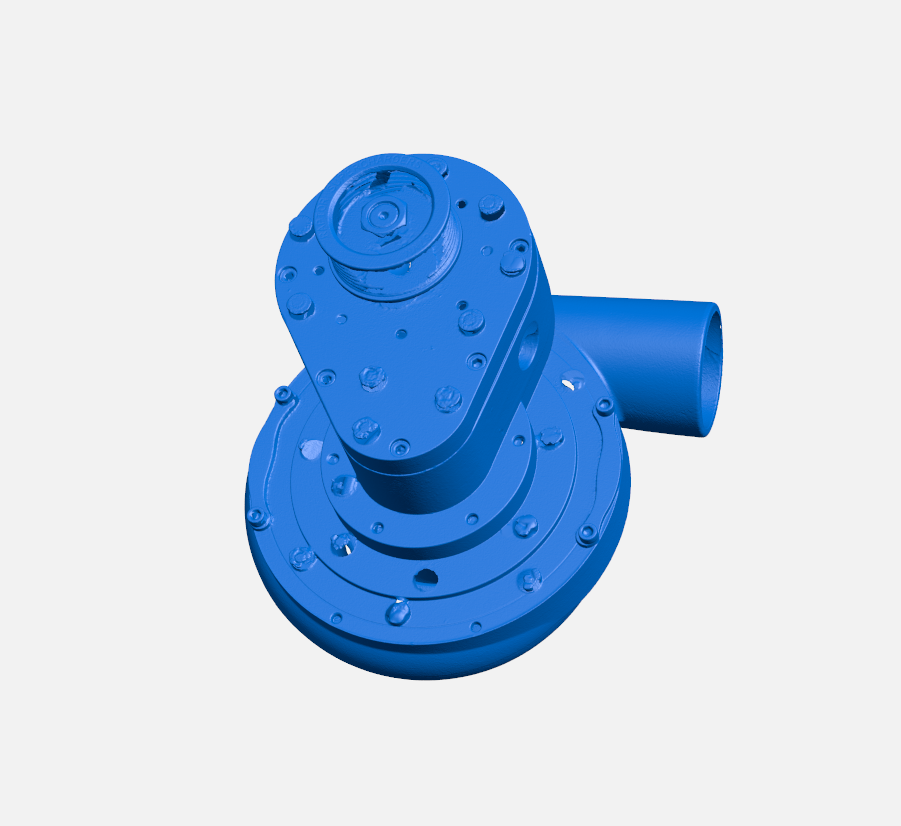

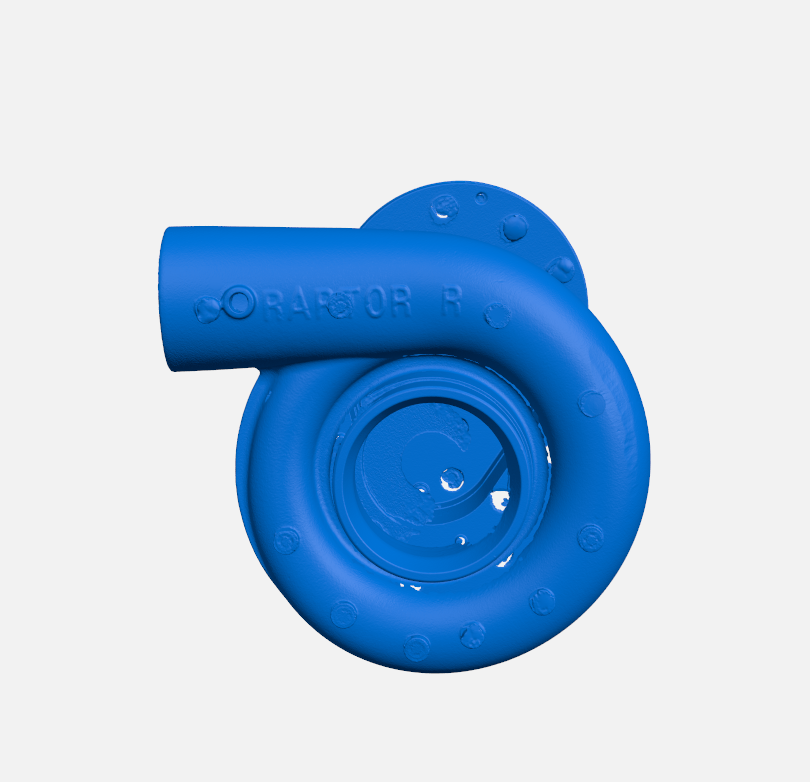

This listing provides a high-resolution 3D scan of a Raptor R Series supercharger head unit, capturing the external housing geometry, mounting features, pulley geometry, and other key details of the supercharger assembly. The scan is well suited for reverse engineering, CAD development, engine packaging, custom bracket design, accessory development, and fitment validation.

The scan provides a useful digital reference of the supercharger housing and mounting arrangement, making it particularly valuable for custom engine builds, performance applications, replacement component development, and CAD-based product design.

Scan Compatibility

Suitable as a reference for Raptor R Series supercharger head unit applications. Please verify compatibility with your specific supercharger configuration and intended application.

Common Applications

• Supercharger mounting and engine packaging

• Reverse engineering

• CAD modelling and design reference

• Custom bracket and mounting development

• Pulley and belt system design

• 3D printing and additive manufacturing

• Fitment and clearance validation

• Performance and motorsport applications

• Product development and custom fabrication

• 3D visualization

File Suitability

Ideal for CAD reference, reverse engineering, mounting and packaging studies, custom fabrication, and product development workflows.

Important Notes

• This listing includes the supercharger head unit housing only.

• The unit was scanned as an empty housing.

• Most external mounting geometry is captured and available for reference.

• The scan provides useful information regarding the pulley geometry and supercharger housing.

• Internal shaft and rotating component geometry is not represented.

• The scan is not watertight or fully manifold and may require mesh cleanup or surface reconstruction depending on your intended workflow.

• This scan represents the specific configuration shown in the reference images.

Collaborator Notes

• Empty supercharger housing.

• Mounting details are available.

• No shaft or internal rotating component details are captured.

• Pulley geometry is visible.

• Useful housing geometry is captured for CAD reference and packaging.

• Scan is not watertight.

Disclaimer

We encourage you to download the sample file to assess scan format, output quality, coverage, and compatibility with your preferred software before purchase. Different CAD and mesh-processing packages may interpret scan data differently, particularly when working with non-watertight or incomplete mesh data.

Please refer to the provided part images to evaluate scan quality, coverage, and the specific supercharger configuration represented.

While every effort is made during scanning to ensure accurate representation of the physical component, we recommend verifying critical dimensions against the physical part if your application requires tight tolerances or manufacturing-level precision.

Reviewing both the sample file and reference images will help ensure the scan meets your requirements prior to purchase.
