ProCharger F-2 Supercharger Head Unit - 3D Scan (STL) [Item: MHI]

Collaborator: Matthew Hillocks

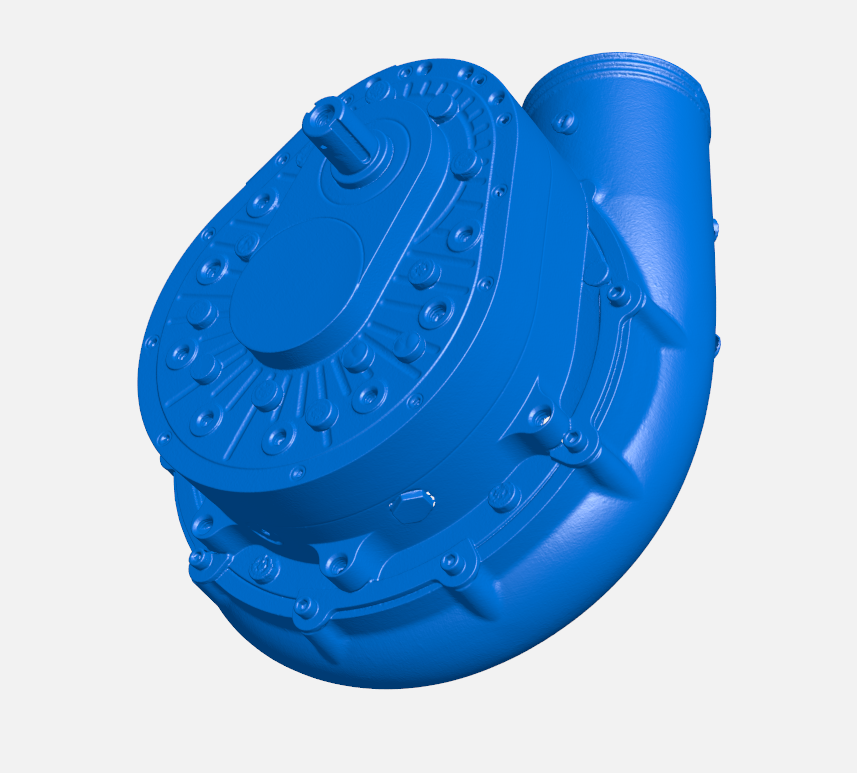

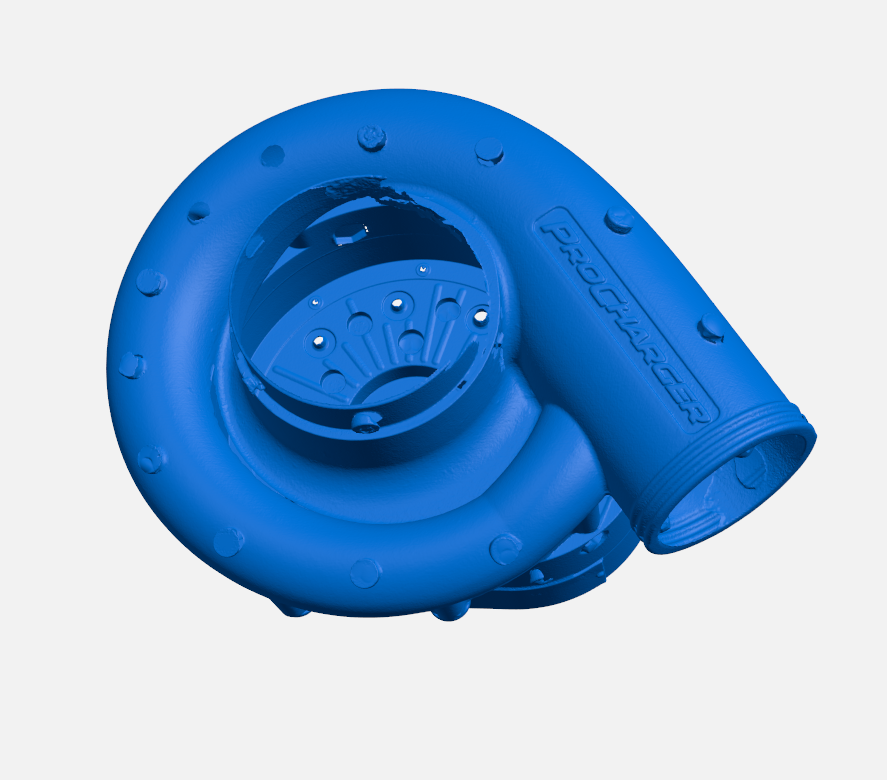

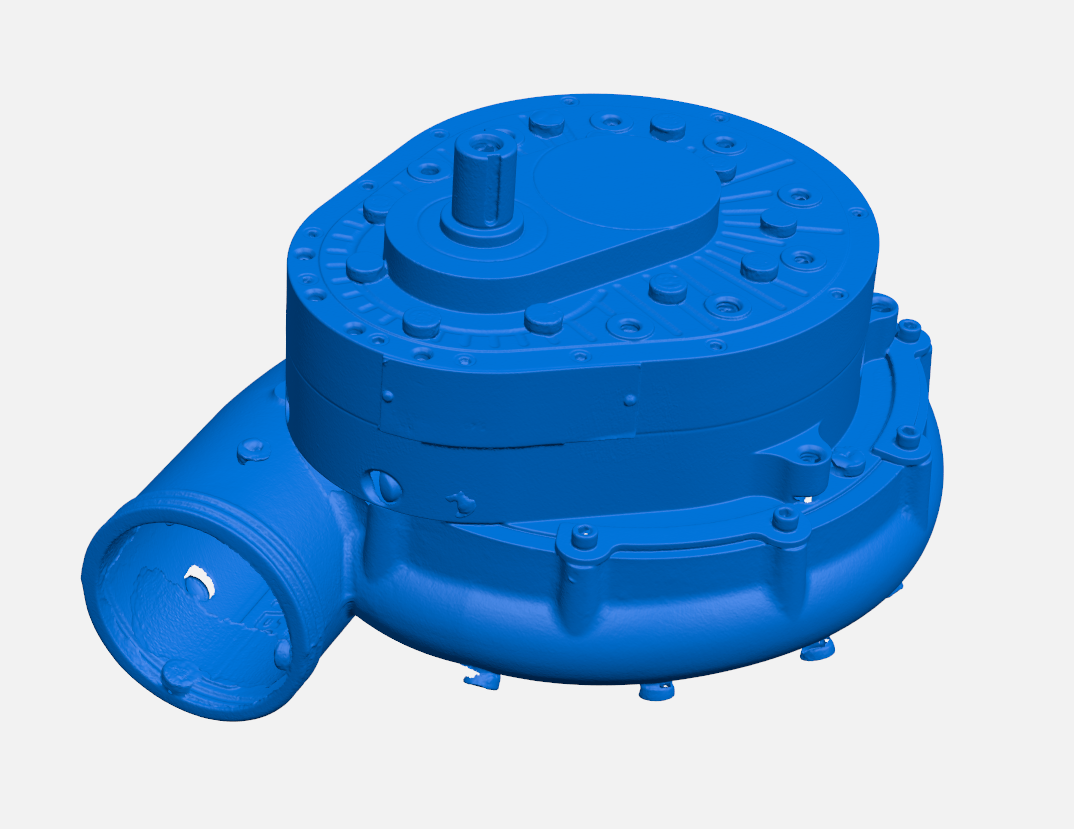

This listing provides a high-resolution 3D scan of a ProCharger F-2 supercharger head unit, capturing the external housing geometry, mounting features, shaft details, and other key features of the centrifugal supercharger assembly. The scan is ideal for reverse engineering, CAD development, engine packaging, custom bracket design, pulley and belt system development, and fitment validation.

The scan provides a useful digital reference of the distinctive F-2 supercharger housing, including most of the available mounting geometry and shaft-related details.

Scan Compatibility

Suitable as a reference for ProCharger F-2 supercharger head unit applications. Please verify compatibility with your specific supercharger configuration and intended application.

Common Applications

• Supercharger mounting and engine packaging

• Reverse engineering

• CAD modelling and design reference

• Custom mounting and bracket development

• Pulley and belt system design

• Engine swap and accessory packaging

• 3D printing and additive manufacturing

• Fitment and clearance validation

• Performance and motorsport applications

• Product development and custom fabrication

• 3D visualization

File Suitability

Ideal for CAD reference, reverse engineering, engine packaging, custom fabrication, mounting studies, and product development workflows.

Important Notes

• This listing includes the ProCharger F-2 supercharger head unit housing.

• The unit was scanned as an empty housing.

• Most external mounting geometry is captured and available for reference.

• Shaft detail is represented in the scan.

• The scan provides useful information regarding the supercharger housing and mounting arrangement.

• The scan is not watertight or fully manifold and may require mesh cleanup or surface reconstruction depending on your intended workflow.

• Internal components and features not visible or accessible during scanning are not represented.

Collaborator Notes

• Empty supercharger housing.

• Mounting details are available.

• Most mounting geometry is captured.

• Shaft detail is included.

• Suitable for reference of the housing and mounting arrangement.

Disclaimer

We encourage you to download the sample file to assess scan format, output quality, coverage, and compatibility with your preferred software before purchase. Different CAD and mesh-processing packages may interpret scan data differently, particularly when working with non-watertight or incomplete mesh data.

Please refer to the provided part images to evaluate scan quality, coverage, and the specific supercharger configuration represented.

While every effort is made during scanning to ensure accurate representation of the physical component, we recommend verifying critical dimensions against the physical part if your application requires tight tolerances or manufacturing-level precision.

Reviewing both the sample file and reference images will help ensure the scan meets your requirements prior to purchase.
