Nissan Leaf EM57 Inverter - 3D Scan (STL) [Item: PIV]

Contributor: emerald_sovienok

This listing provides a high-resolution 3D scan of the Nissan Leaf EM57 inverter, a key component responsible for converting DC battery power into AC power to drive the traction motor. The inverter is also responsible for managing motor control, regenerative braking, and overall drivetrain power delivery.

Scan is compatible with second gen Nissan Leaf (ZE1) 2018-Present.

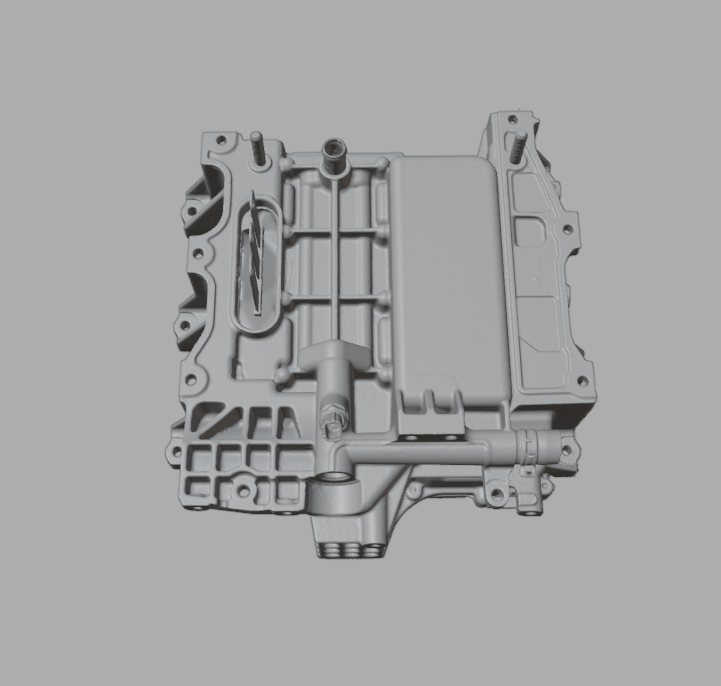

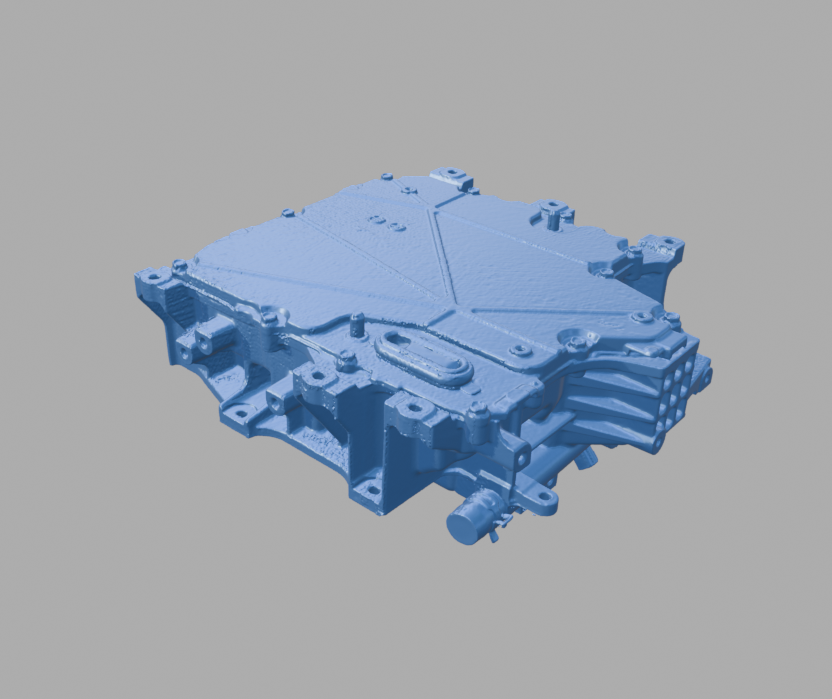

The scan captures accurate external geometry, mounting interfaces, cooling features, and connector packaging, making it suitable for EV conversion development, drivetrain integration, and power electronics packaging studies.

Resolution

• 3.6M Polygons

Common Applications

• EV conversion drivetrain integration

• Custom inverter mounting and enclosure design

• Cooling system and thermal management development

• High-voltage cable routing and packaging analysis

• Clearance and chassis fitment validation

• Reverse engineering and aftermarket component development

Scan Coverage

• External inverter housing geometry

• Mounting interfaces and bracket locations

• Connector and cable interface packaging

(Internal electronic components are not included.)

File Suitability

Ideal for CAD reference, packaging design, and EV drivetrain integration workflows.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
