Nissan Leaf EM57 Gearbox Bracket - 3D Scan (STL) [Item: PIV]

Contributor: emerald_sovienok

This listing provides a high-resolution 3D scan of the Nissan Leaf EM57 gearbox mounting bracket, designed to support and locate the drivetrain assembly within the vehicle chassis. Mounting brackets play a critical role in drivetrain stability, load distribution, and vibration control during vehicle operation.

Scan is compatible with second gen Nissan Leaf (ZE1) 2018-Present.

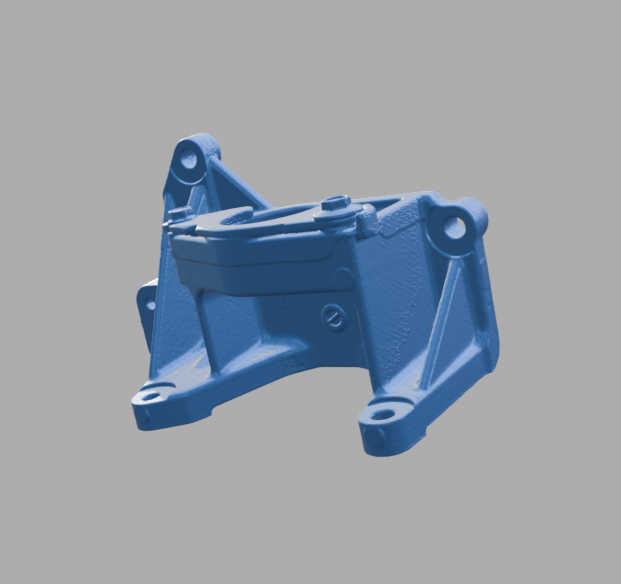

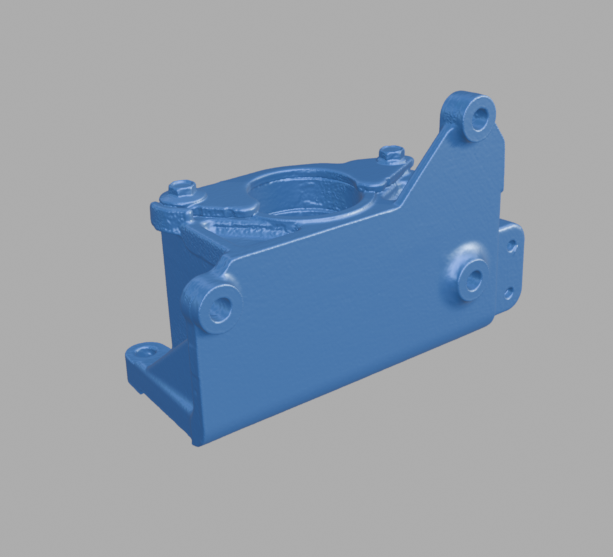

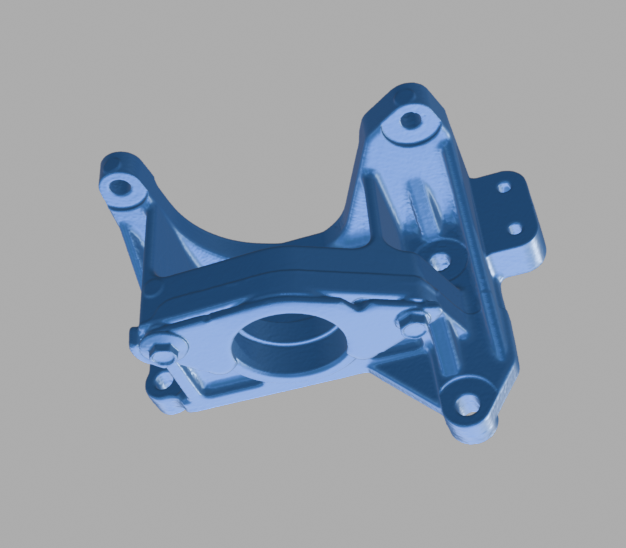

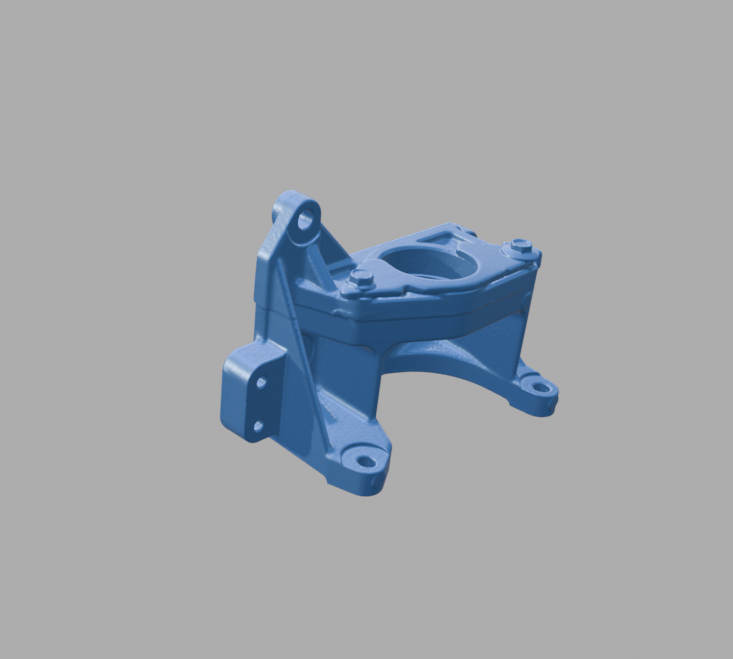

The scan captures accurate bracket geometry, mounting interfaces, and structural features, supporting custom drivetrain mounting and chassis integration development.

Resolution

• 3.5M Polygons

Common Applications

• EV conversion drivetrain mount design

• Custom subframe and support structure development

• Mount load path and packaging analysis

• Chassis integration and fitment validation

• Reverse engineering replacement or performance brackets

Scan Coverage

• Full external bracket geometry

• Mounting surfaces and interface points

• Structural reinforcement features

• Packaging envelope and mounting alignment reference

File Suitability

Ideal for CAD reference, mount design, and structural integration workflows.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
