LS1 Engine Block with Heads - 3D Scan (STL) [Item: SBU]

Contributor: Scottify Designs

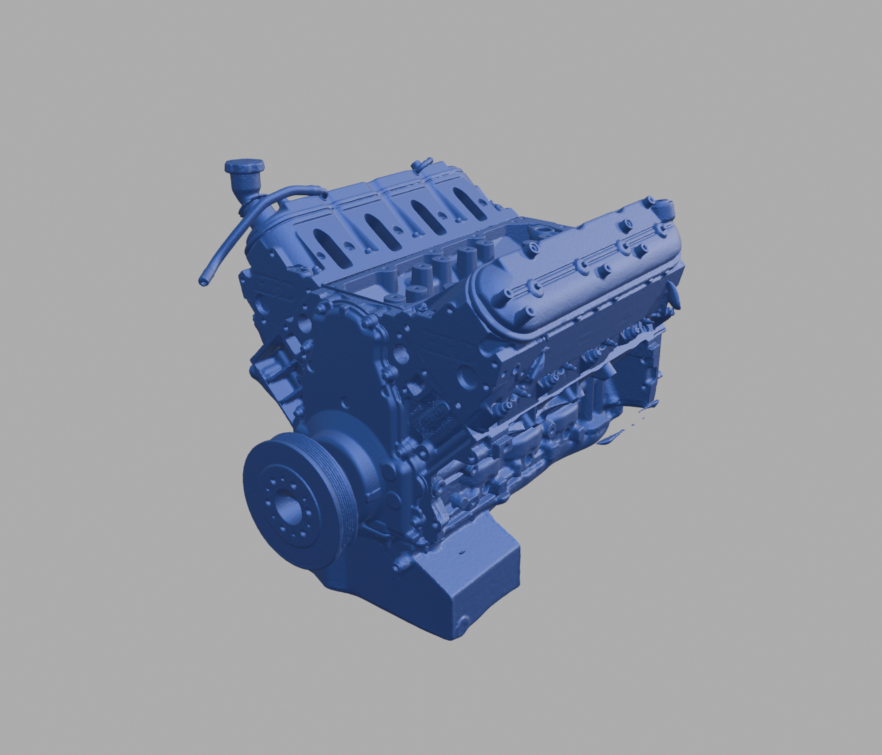

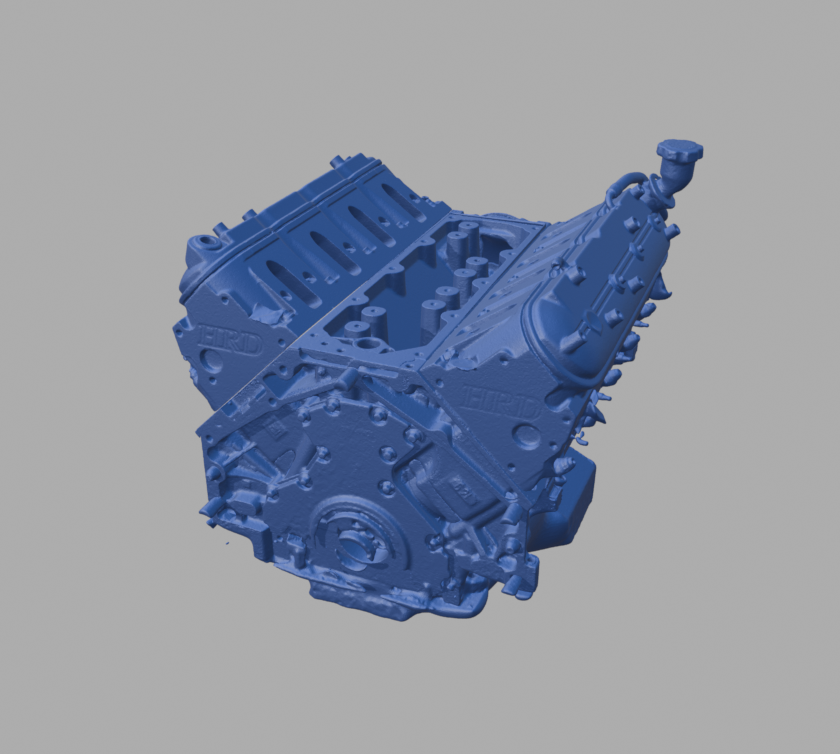

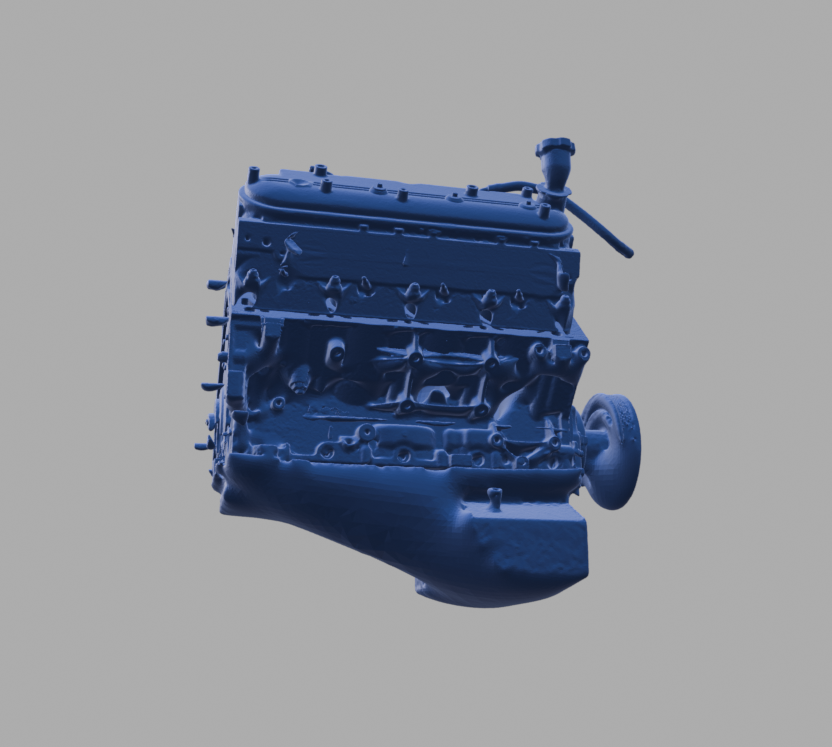

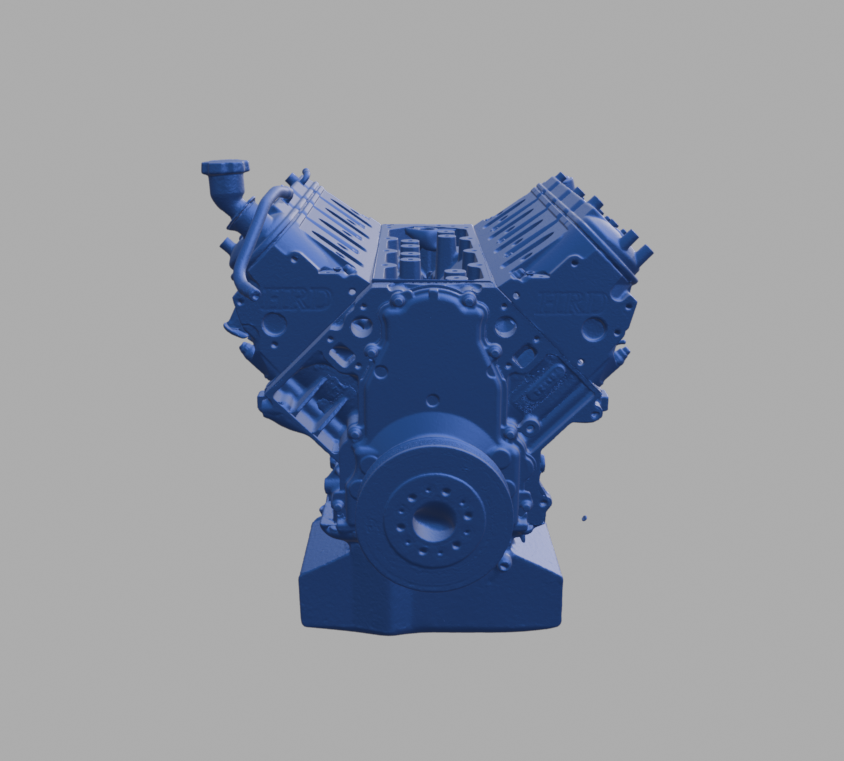

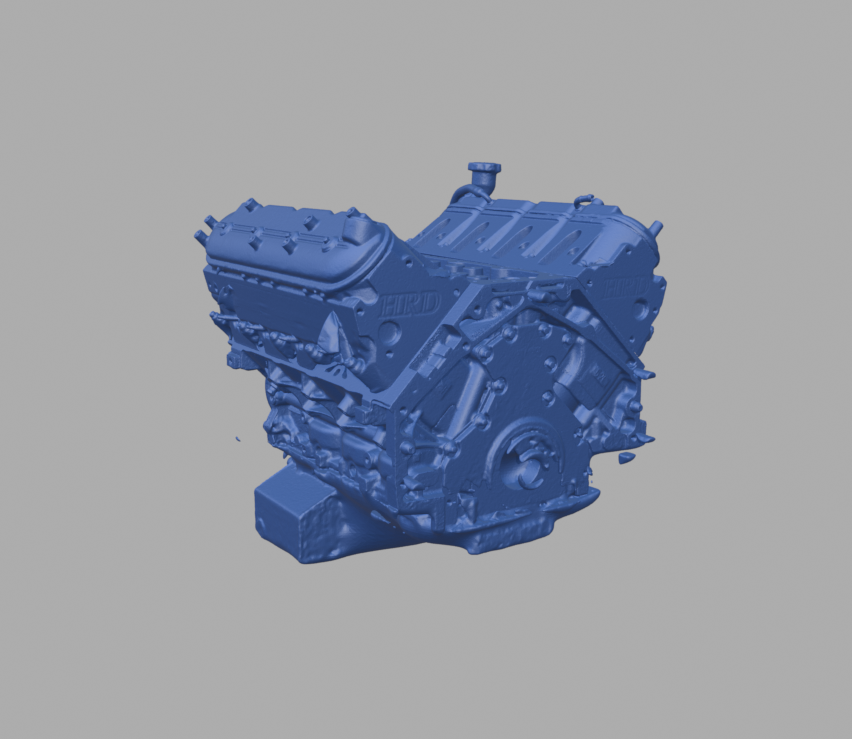

This high-resolution 3D scan captures a GM LS1 engine assembly with LS1 cylinder heads installed, accurately representing the exterior geometry of the block and head combination. The scan is ideal for engine bay packaging, component design, and visualization where overall engine dimensions and mounting relationships are critical.

Please note: the underside of the engine (oil pan rail and lower block surfaces) was not captured during the scan. This model is intended for applications that do not require detailed bottom-side geometry.

The file is delivered as a clean STL at real-world scale and is ready for use in most CAD, simulation, and 3D workflows.

Applications include:

• Engine bay packaging and clearance analysis

• Exhaust, intake, and accessory layout design

• Powertrain visualization and digital mock-ups

• Chassis and subframe integration studies

• Rendering and technical illustration

File details:

• Format: STL

• Real-world scale, coordinate-accurate

• Exterior geometry only

• Bottom-side geometry not included

• Compatible with most CAD and 3D software

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
