Collaborator: Matthew Hillocks

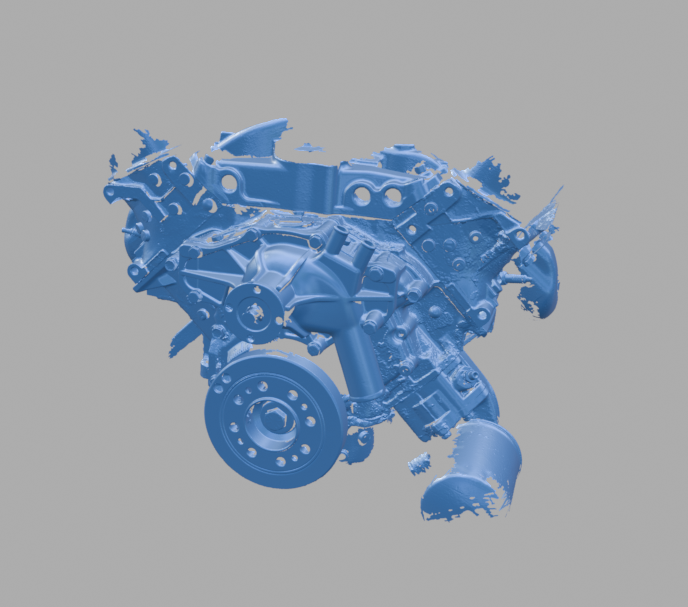

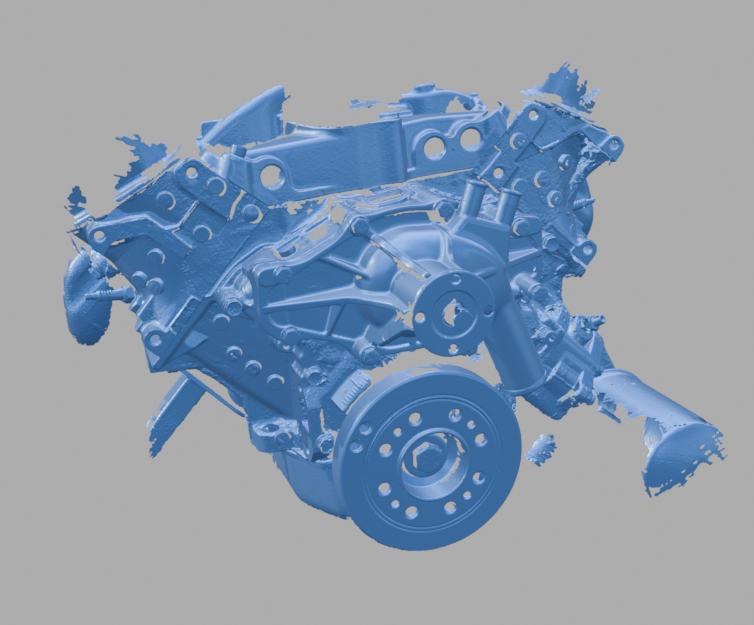

This listing provides a high-resolution 3D scan of the front end of a Holden 308 V8 engine, capturing the external geometry of the timing case area and associated front mounting interfaces. The scan is intended as a reference for engine development, accessory design, reverse engineering, and CAD-based engineering workflows.
The Holden 308 is one of Australia's most iconic V8 engines, widely used in Holden passenger vehicles, motorsport, and performance applications. This scan focuses specifically on the front of the engine, preserving the geometry required for accessory mounting, timing cover development, and front-end packaging studies.
Compatible with Holden 308 V8 engine applications (please verify your specific engine variant and configuration for your intended use).
Timing cover development
Water pump and accessory bracket design
Front accessory drive packaging
Reverse engineering for replacement or performance parts
CAD reference and engineering workflows
Custom fabrication
3D visualization and simulation
Ideal for CAD reference, front-end component development, reverse engineering, and vehicle engineering workflows.
This listing contains only the front section of the Holden 308 engine. It is not a complete engine scan.
The scan is not watertight or complete, as only the front-end geometry was captured.
External geometry only; no internal engine geometry is included.
Some areas may require cleanup or surface reconstruction depending on your intended workflow.
Partial scan of the Holden 308 engine front end only.
Intended primarily as a reference for front-end geometry and mounting interfaces.
We encourage you to download the sample file to assess scan format, output quality, and compatibility with your preferred software before purchase. Different CAD and mesh-processing packages may interpret scan data differently, so verifying compatibility with your workflow is recommended.
Please refer to the provided part images to evaluate scan quality, coverage, and overall representation.
While every effort is made during scanning to ensure accuracy, we recommend verifying critical dimensions against the physical component if your application requires tight tolerances or manufacturing-level precision.
Reviewing both the sample file and reference images will help ensure the scan meets your requirements prior to purchase.
