Contributor: Patrick Sukraw

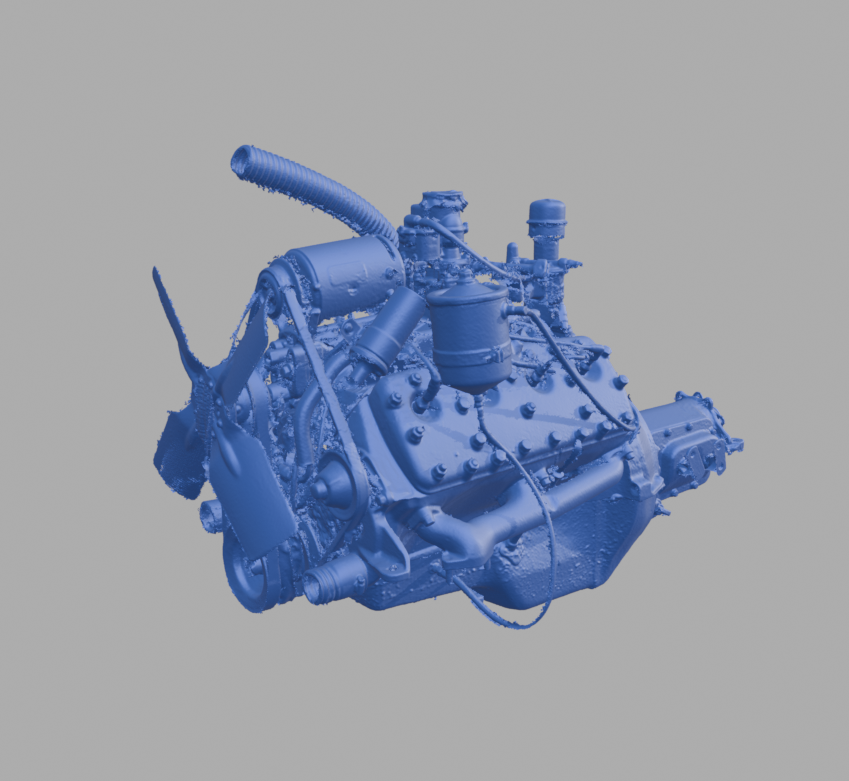

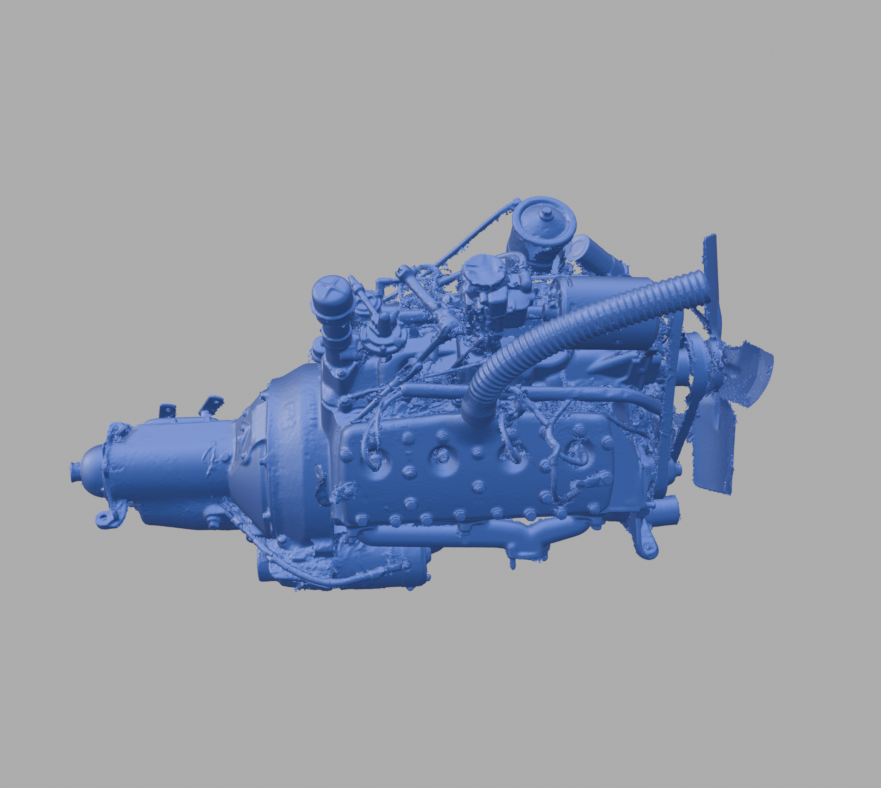

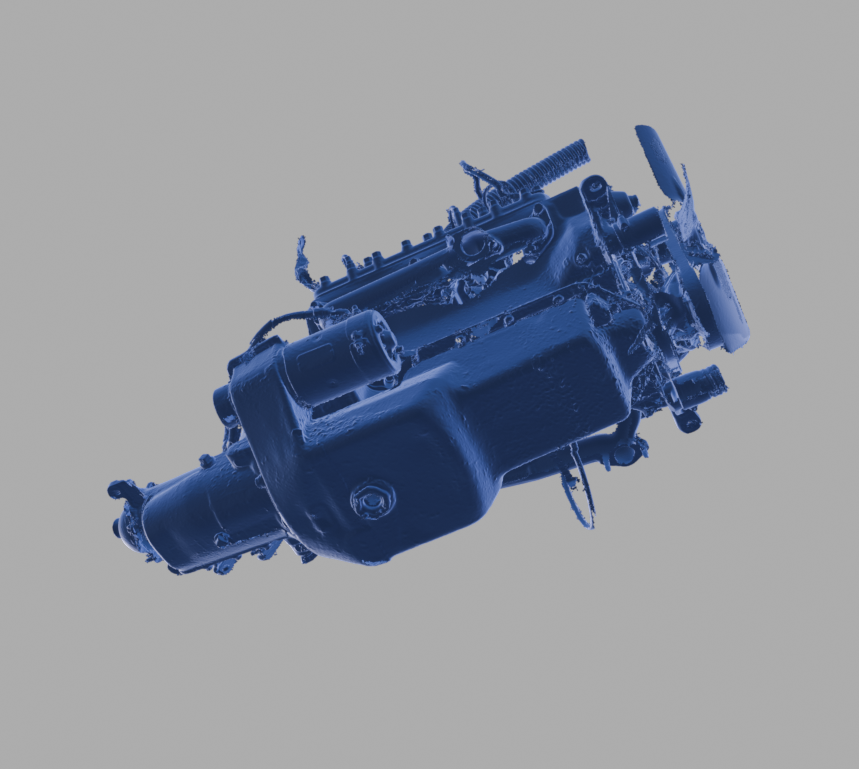

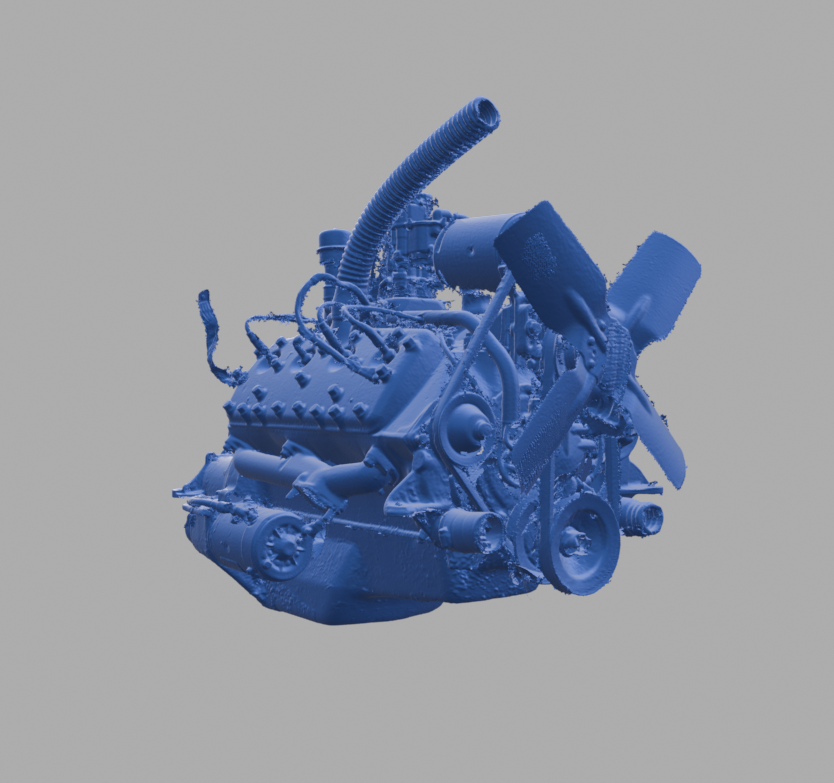

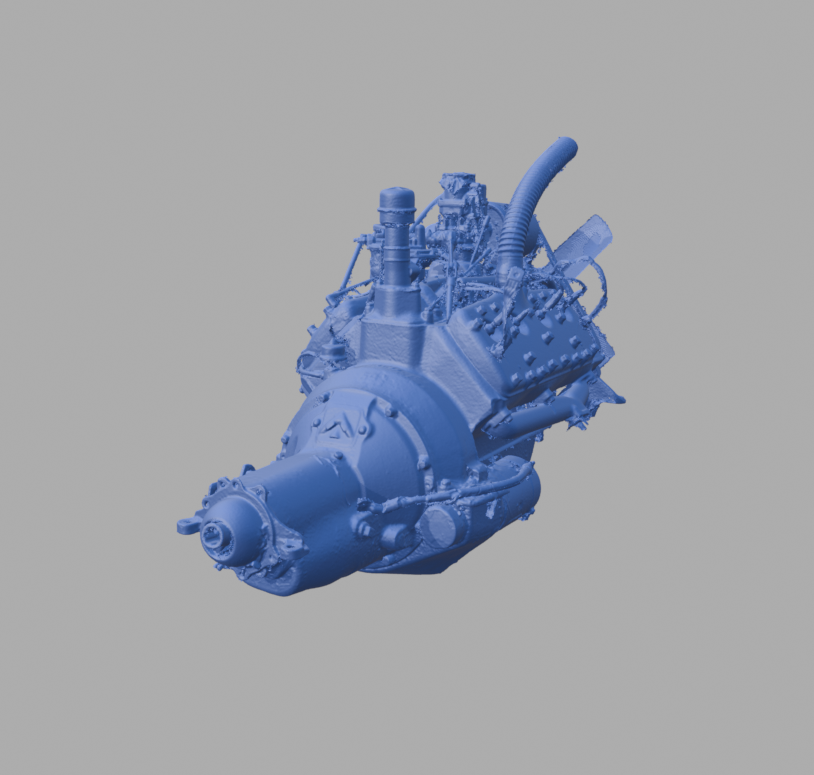

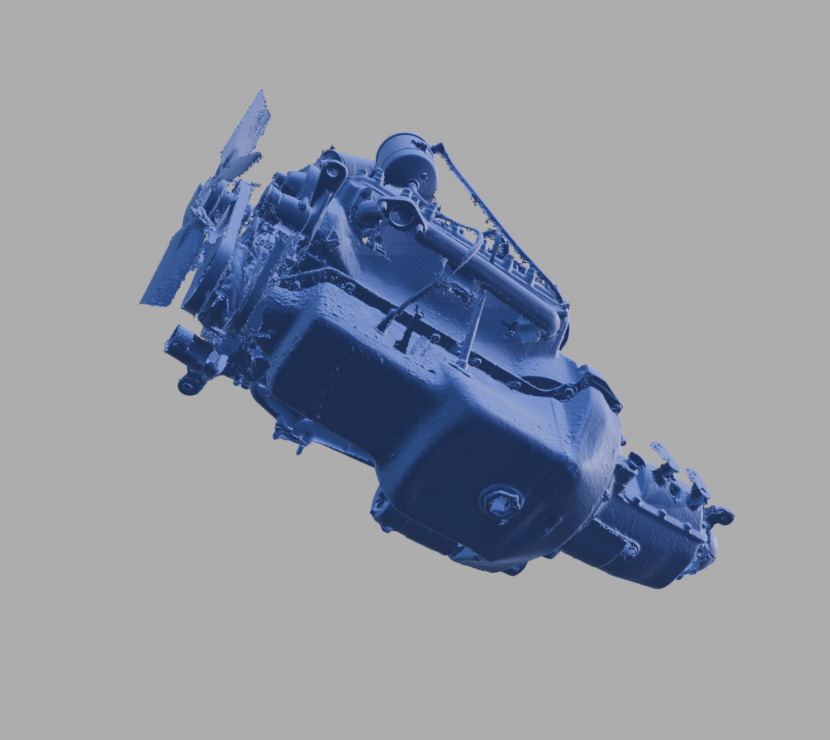

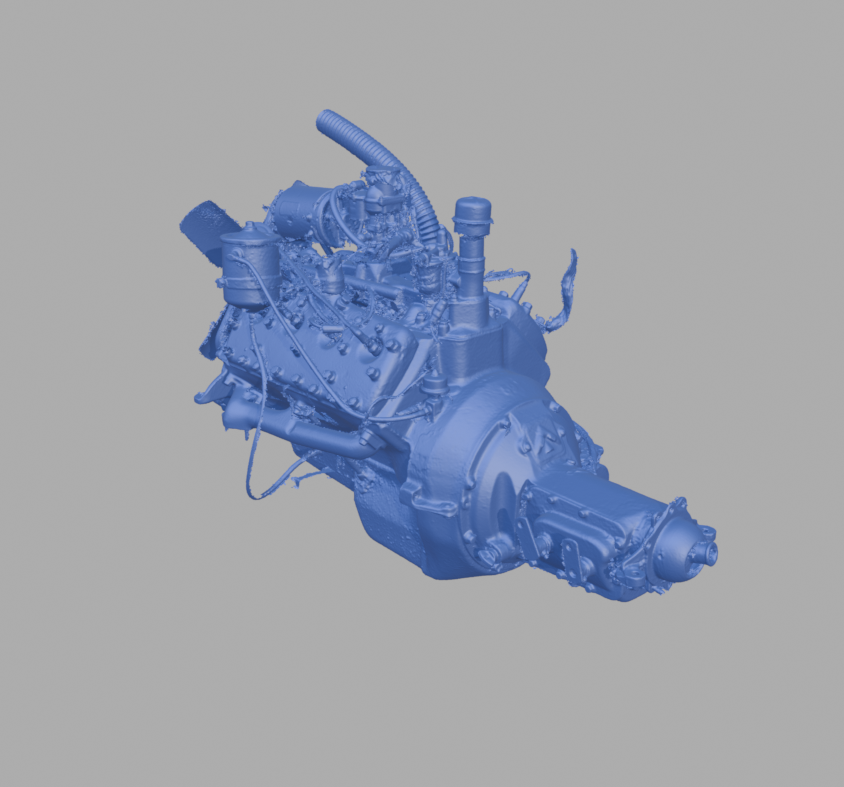

3D scan of a Ford Flathead V8 engine, capturing the external geometry of this iconic powerplant in detailed digital form. Supplied as an STL file, this scan is ideal for reference, packaging, and reverse-engineering applications.
The dataset accurately represents the overall engine envelope, major cast features, mounting bosses, and external contours commonly required for:
Engine bay and chassis packaging
Custom mount and accessory bracket design
Vintage drivetrain swaps and restorations
Visualization and historical reference
Reverse engineering workflows
This scan focuses on external geometry only and is not intended as an internal mechanical model. Fine internal passages, oil galleries, and internal components are not included.
As with all scan-derived data, this file should be used as a reference model and verified against physical measurements before fabrication or critical fitment work.
Please be aware that due to an issue with uploading the file to the website, automatic download is not available at this time. As a result, a separate link to the file will be sent to you via email within 24 hours of purchase. We apologize for any inconvenience this may cause. Unfortunately, this issue is currently beyond our control, but we are actively investigating a solution.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
