This listing provides a high-resolution 3D scan of a Ford Big Block 460ci long engine assembly, capturing the external geometry of the engine block and cylinder heads with the timing cover removed. The scan is well suited for engine development, fitment validation, reverse engineering, and CAD-based engineering workflows.
The Ford 460 cubic inch Big Block V8 is one of Ford's largest and most capable production V8 engines, widely used in passenger cars, trucks, marine applications, and motorsport. Its robust construction and large physical envelope make it a popular choice for high-performance builds, engine swaps, and custom fabrication projects.
Compatible with Ford Big Block 460ci engine applications (please verify your specific engine variant and configuration for your intended use).
Engine bay layout and packaging
Engine mount and accessory bracket development
Timing cover and front accessory system development
Custom engine swap and fabrication projects
Reverse engineering for replacement or performance parts
CAD reference and engineering workflows
3D visualization and simulation
Ideal for CAD reference, packaging studies, reverse engineering, and vehicle engineering workflows.

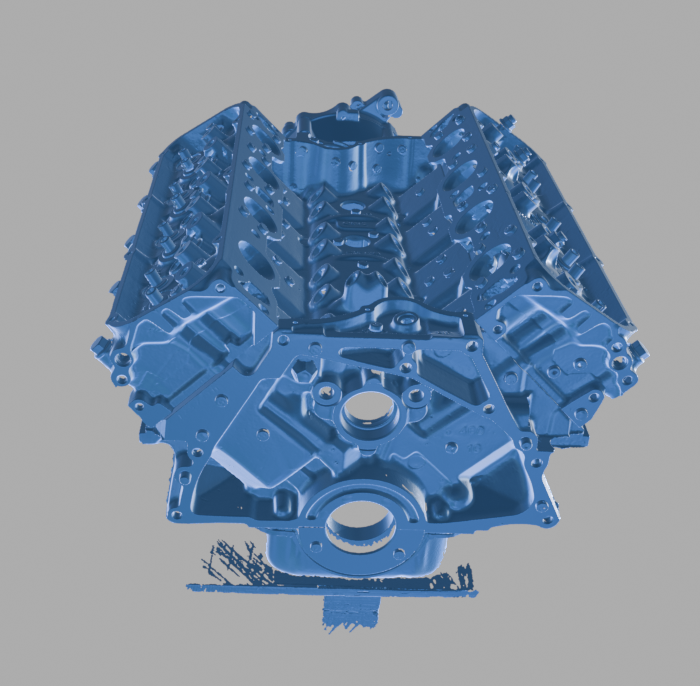

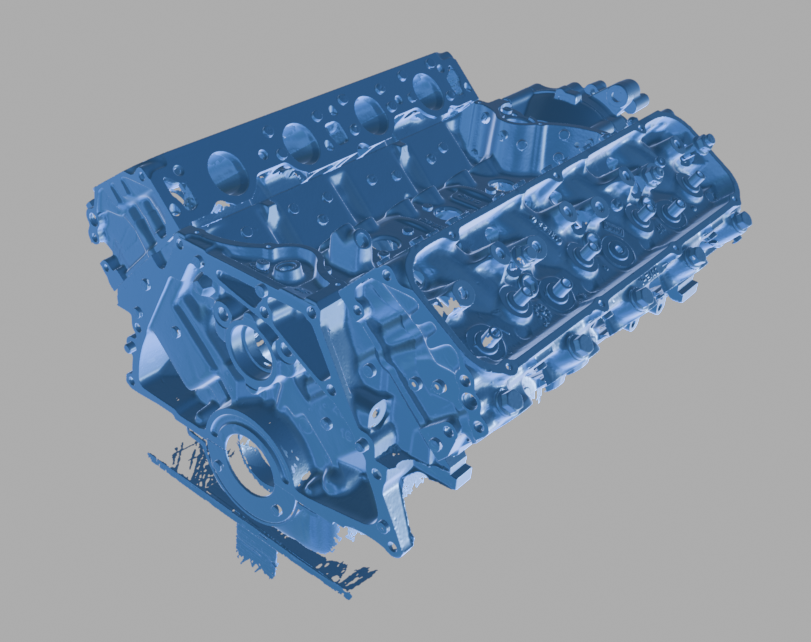

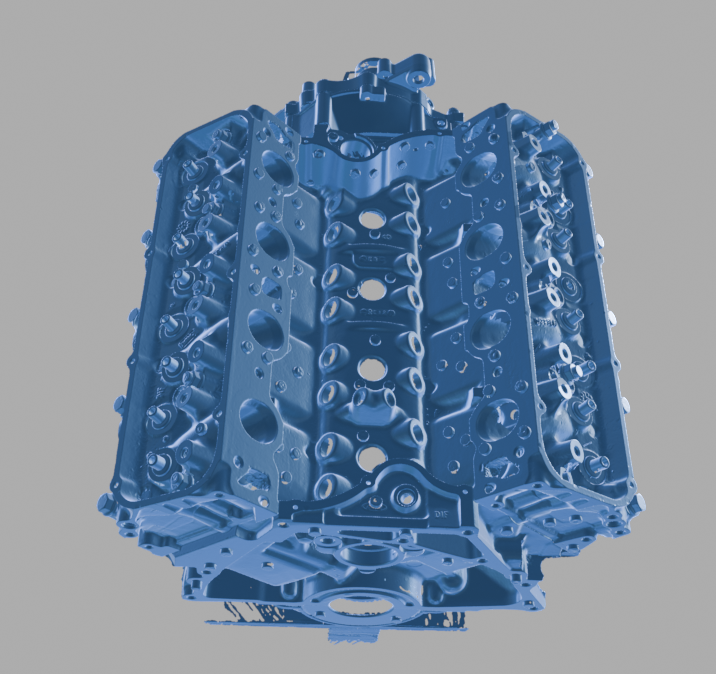

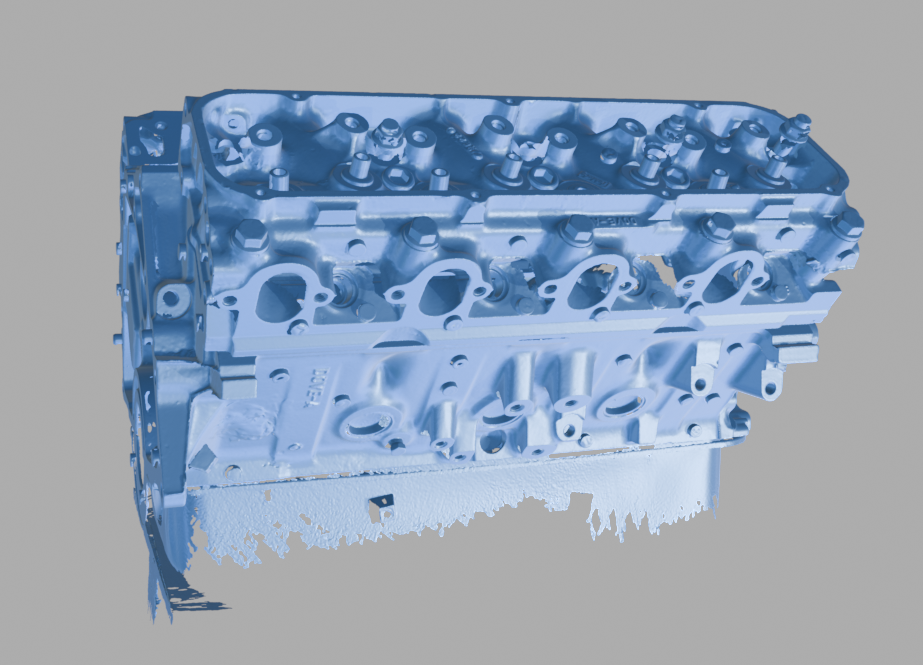

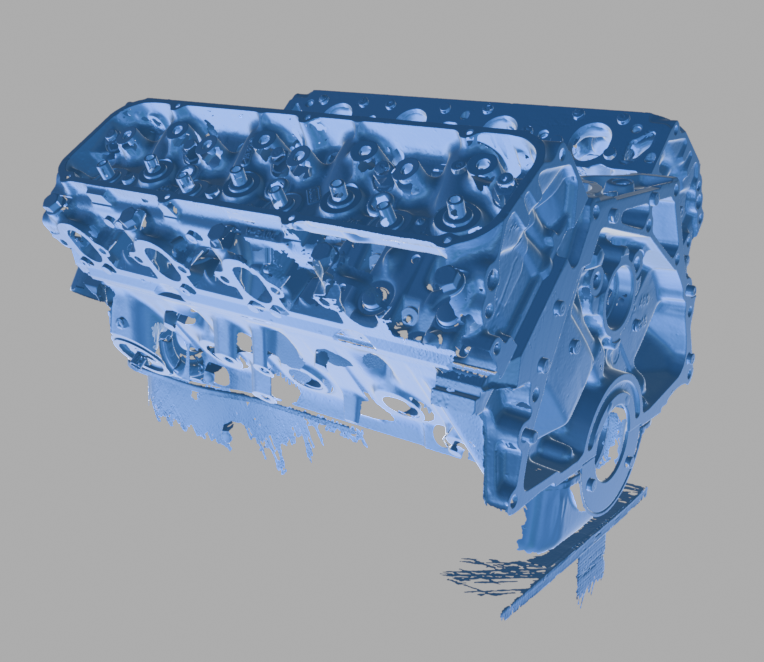

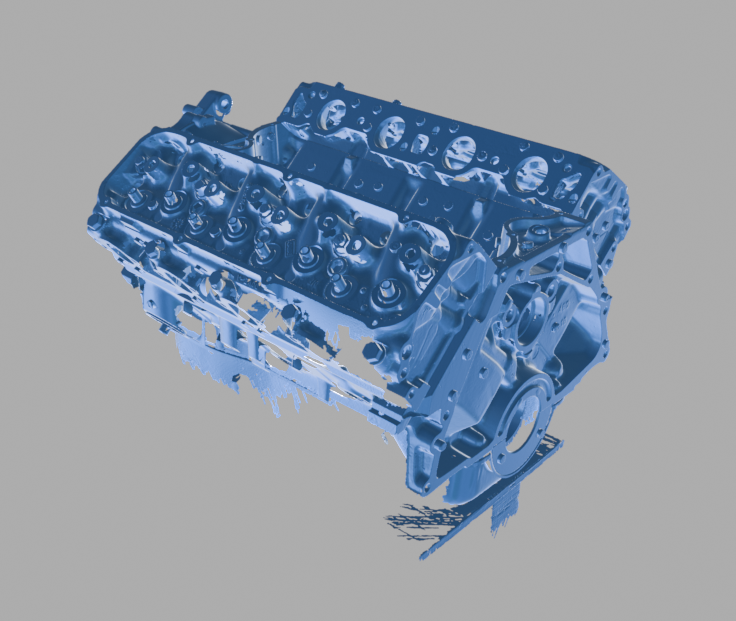

This scan includes the engine block and cylinder heads with the timing cover removed.
The exposed front timing case geometry provides additional reference for front-end component development.
Scan is not watertight or fully complete; some areas may require cleanup or surface reconstruction depending on your intended workflow.
External geometry only; no complete internal engine geometry is included.
Small raised knobs visible on the scan are scan markers used during the capture process. These can be safely ignored or removed during post-processing if desired.
Long engine assembly.
Small protrusions visible on the scan are alignment markers used during the scanning process. These can be ignored and were intentionally placed in unobtrusive locations.
We encourage you to download the sample file to assess scan format, output quality, and compatibility with your preferred software before purchase. Different CAD and mesh-processing packages may interpret scan data differently, so verifying compatibility with your workflow is recommended.
Please refer to the provided part images to evaluate scan quality, coverage, and overall representation.
While every effort is made during scanning to ensure accuracy, we recommend verifying critical dimensions against the physical component if your application requires tight tolerances or manufacturing-level precision.
Reviewing both the sample file and reference images will help ensure the scan meets your requirements prior to purchase.
