Ford 351 Cleveland Timing Cover (Rear Mount Detail) – 3D Scan (STL) [Item: MHI]

Contributor: Matthew Hillocks

The Ford 351 Cleveland timing cover is a key front-engine component used across Cleveland V8 platforms. This version includes rear mounting detail, making it suitable for restoration projects, custom accessory drive setups, and engine packaging development.

This listing provides a high-resolution 3D scan of the Ford 351 Cleveland timing cover, accurately capturing the external geometry, mounting interfaces, bolt locations, and rear mounting features.

The scan is fully watertight, making it suitable for solid modeling and CAD-based workflows. Minor surface noise is present due to the scanning process, but it does not affect mounting geometry or practical engineering applications.

Compatible with 351 Cleveland engines and potentially other Cleveland variants (fitment should be verified for specific builds).

Common Applications

• Custom accessory bracket design

• Front drive system development

• Engine restoration reference

• Engine swap packaging studies

• Reverse engineering and replacement part development

• 3D visualization and CAD integration

Scan Coverage

• External timing cover geometry

• Water pump mounting interface

• Front accessory mounting locations

• Rear mounting detail

• Bolt hole positions and flange surfaces

(Internal passages and internal timing components are not included.)

File Suitability

Ideal for CAD reference, accessory drive development, engine bay packaging validation, and drivetrain integration workflows involving Ford Cleveland V8 platforms.

The watertight mesh allows for straightforward import into most CAD environments. Minor surface noise may require light smoothing depending on your workflow, but it does not impact functional mounting areas.

Disclaimer

We encourage you to download the sample file to assess scan format, mesh structure, and compatibility within your preferred software. Different CAD and mesh-processing platforms may interpret scan data differently.

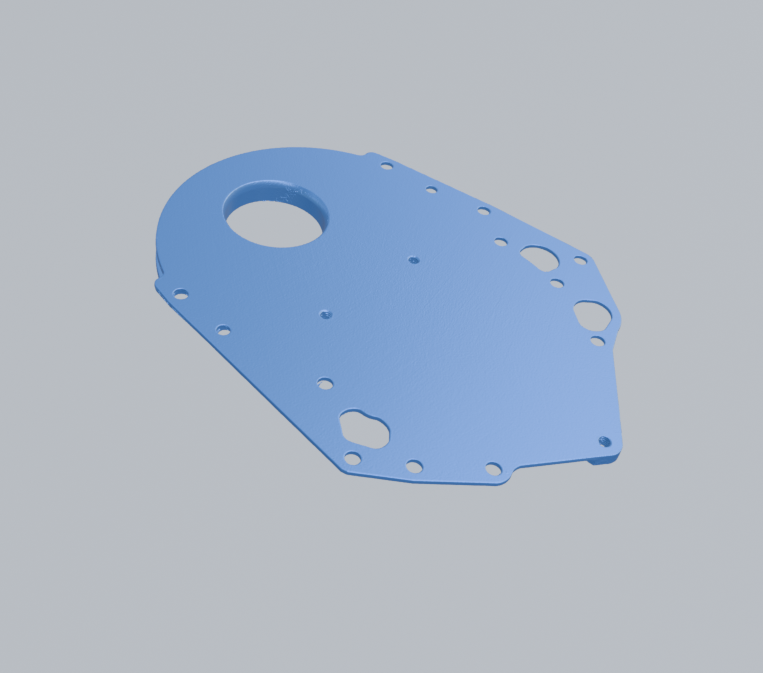

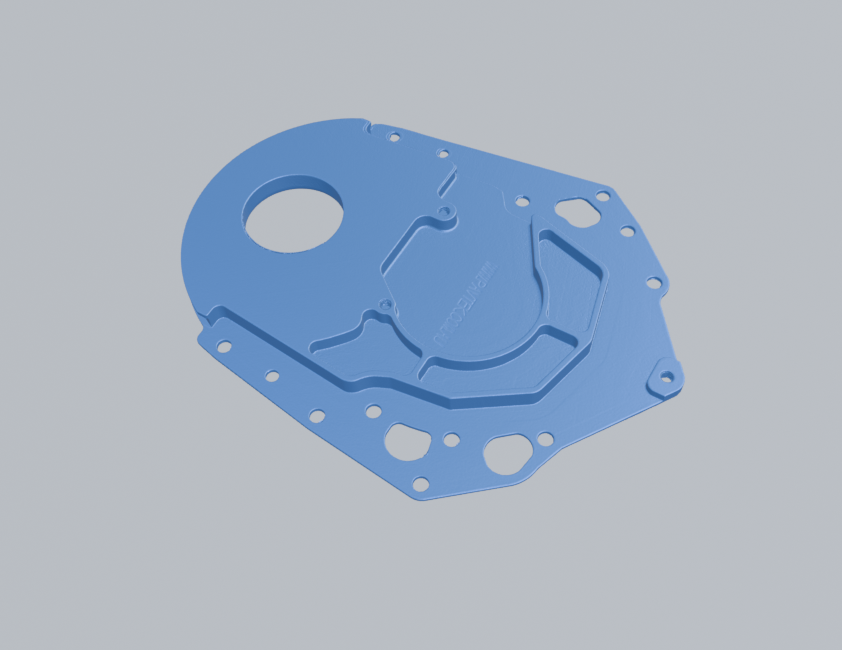

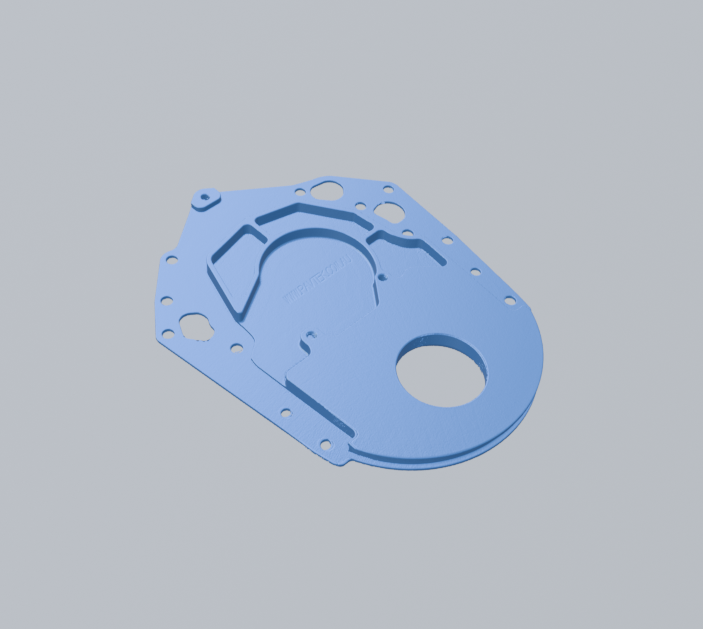

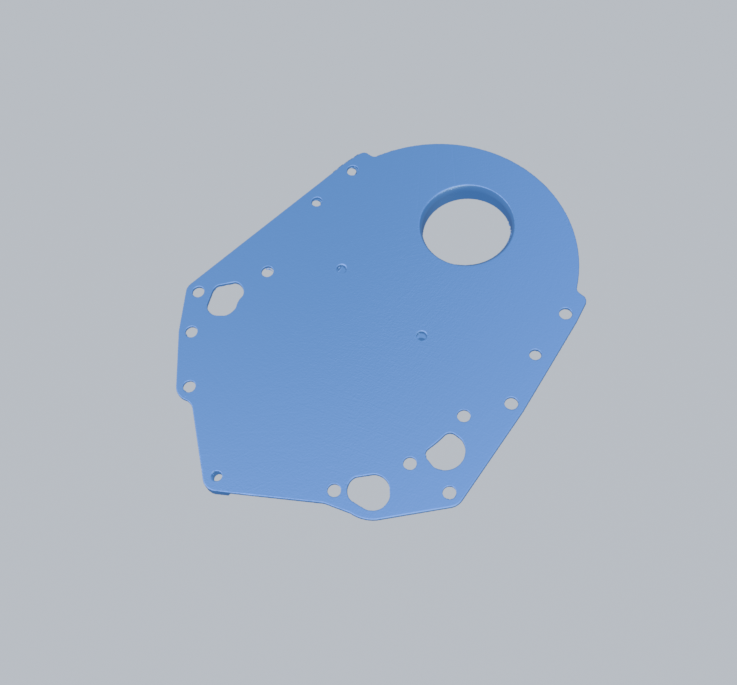

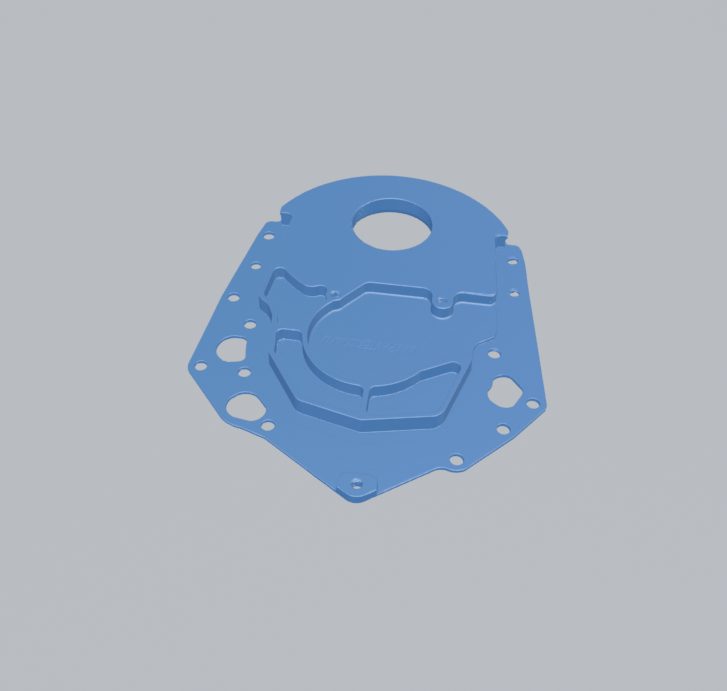

Please review the provided part images to evaluate file representation before purchase.

While every effort is made during scanning to ensure accurate geometry, critical dimensions should be verified against the physical component if your application requires tight tolerances or precision referencing.

Reviewing both the sample file and images will help ensure the scan meets your project requirements prior to purchase.
