Ferrari 488 GTB Rear Floor - 3D Scan (STL) [Item: SBU]

Contributor: Scottify Designs

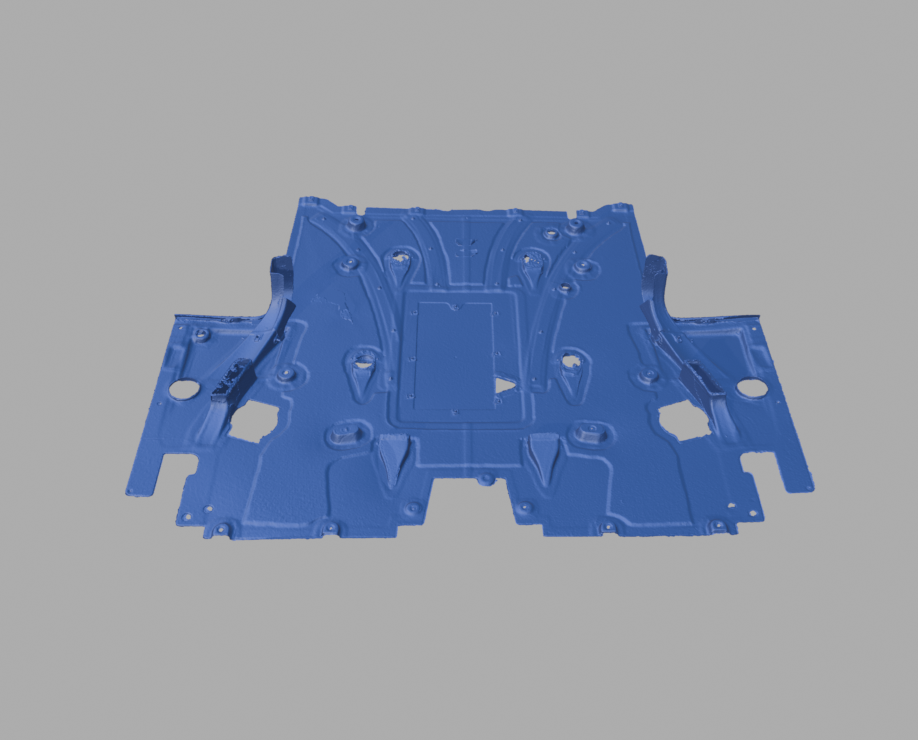

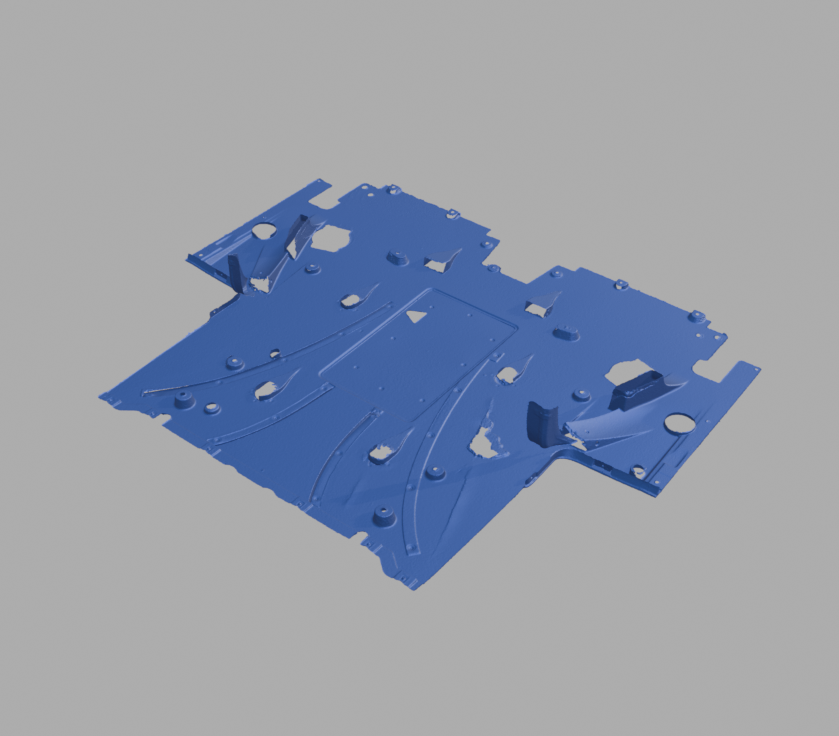

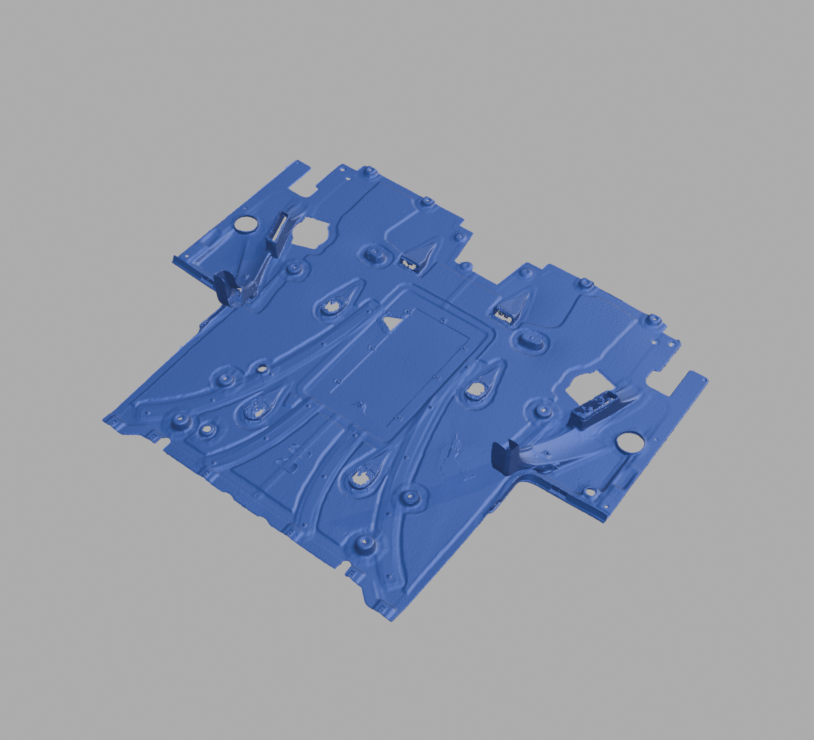

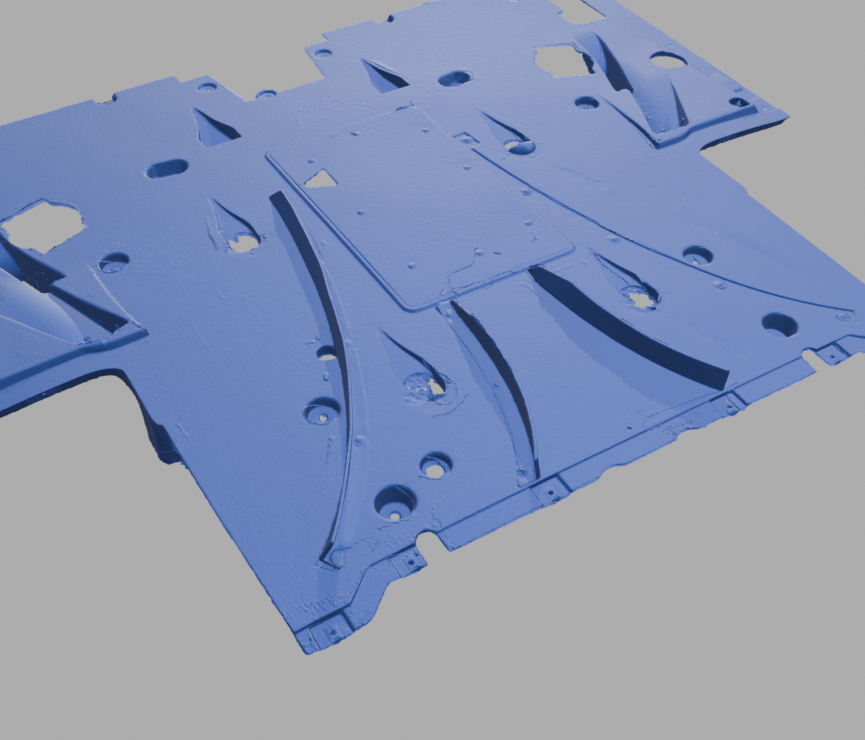

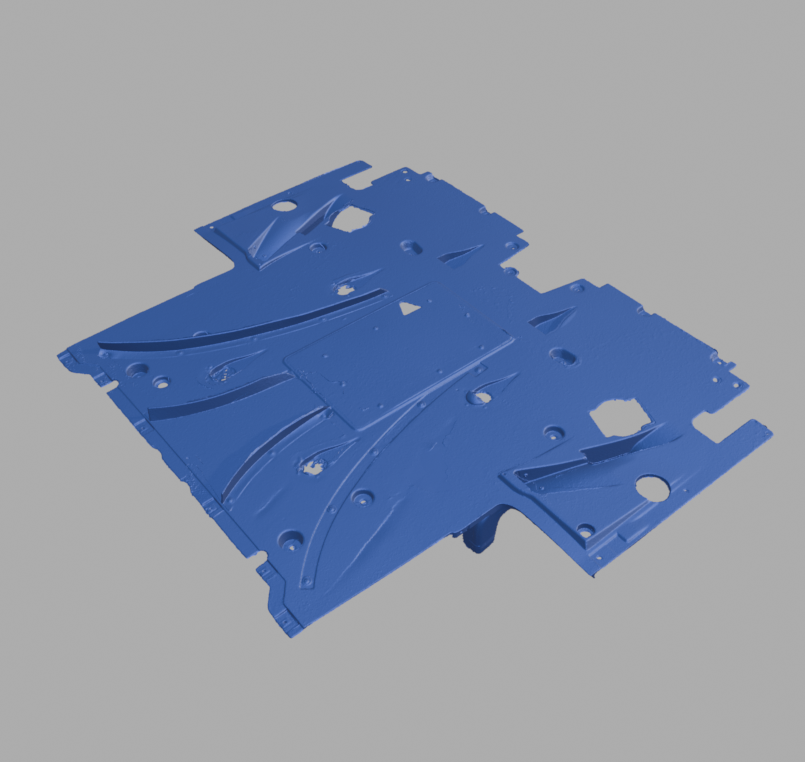

3D scan of the Ferrari 488 GTB rear floor, capturing the overall geometry and mounting interfaces of the rear underbody section. This scan is ideal for aerodynamic development, reverse engineering, and custom motorsport applications.

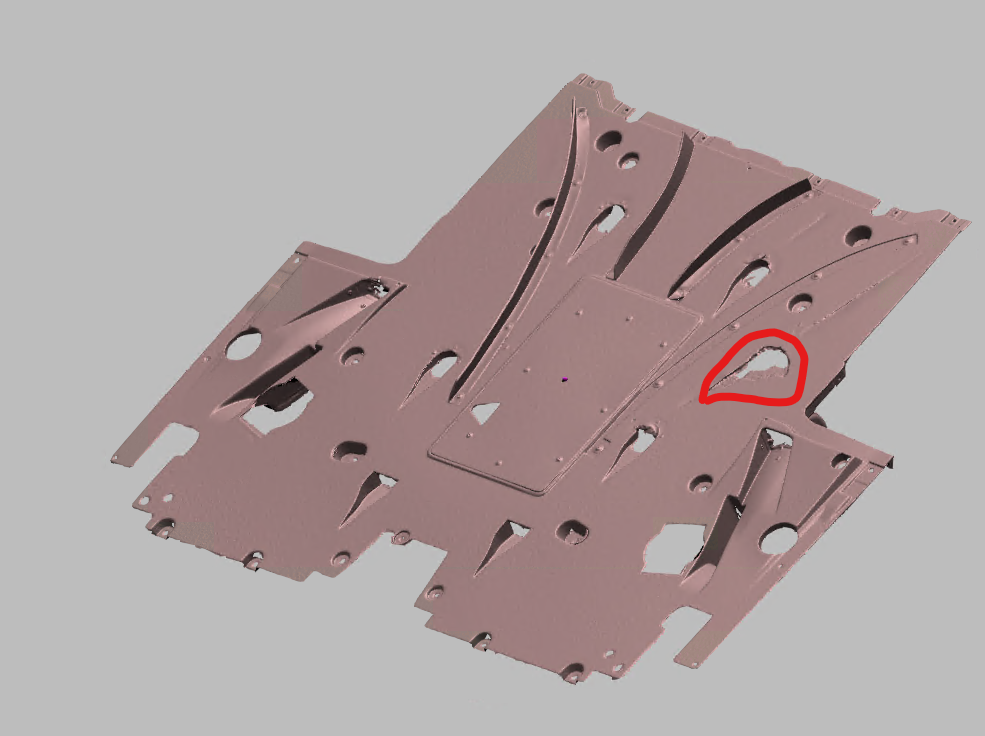

Please note that the right-hand (RH) side shows damage on the original part. As a result, this model is best used as a reference or starting point rather than a direct replacement geometry. It provides a solid foundation for designing custom undertrays, diffusers, and cooling duct solutions, allowing engineers and designers to adapt and refine the surfaces to their specific requirements.

Use cases include:

• Custom rear undertray development

• Cooling duct and airflow concept design

• Motorsport and track-focused aero projects

• Packaging and fitment reference

This scan is supplied as-is and is intended for development and design purposes, not as a production-ready OEM replacement.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
