Corvette C7 Full Suspension Pack
Suspension components have been positioned based on measurement data of wheelbase and track width of the C7 Stingray.
Please note: Front Upper control arm is from a C6, as far as we know the C6 and C7 Front upper control arm are interchangeable, the only difference being the OEM Part number. Aftermarket suppliers have the same arm for both C6 and C7.
Produced from 2014 to 2019, the Chevrolet Corvette C7 improves upon its predecessor with a more aggressive and modern design coupled with advanced technology and better handling. Powered by a 6.2L naturally aspirated V8 Engine (LT1), it is capable of producing 455 horsepower stock. This allows the C7 to go from 0 to 60 mph in 3.7s. Higher performance trims like the Z06 come with a supercharged 6.2L V8 producing 650 horsepower and capable of 0-60 mph in only 2.95s. The C7 is a statement which balances American muscle and modern performance in one of the best performance bargains of its era.
This pack contains the LH and RH:
Front Upright
Front Hub
Front Upper Control Arm
Front Lower Control Arm
Rear Upright (hub is part of the upright STL)
Rear Upper Control Arm
Rear Lower Control Arm
CAD Geometries are provided in STEP format to facilitate your projects. Please keep in mind that all parts were scanned separately and aligned manually. The relative position of each part with other components is not fully accurate so Bremar highly recommends using the included CAD Geometries to find pivot points and align components.
All scans are in STL format - NOT SOLID MODEL
🔧 Building from a Scan? We’ve Got Your Back
Using these scans for a modified vehicle or scratch build? Need help with geometry setup or kinematics? We can assist. Check out our Suspension Kinematics Support Package for expert guidance that gets your system working right.
https://www.bremar3dscanstore.com/products/p/suspension-kinematics-support-package
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

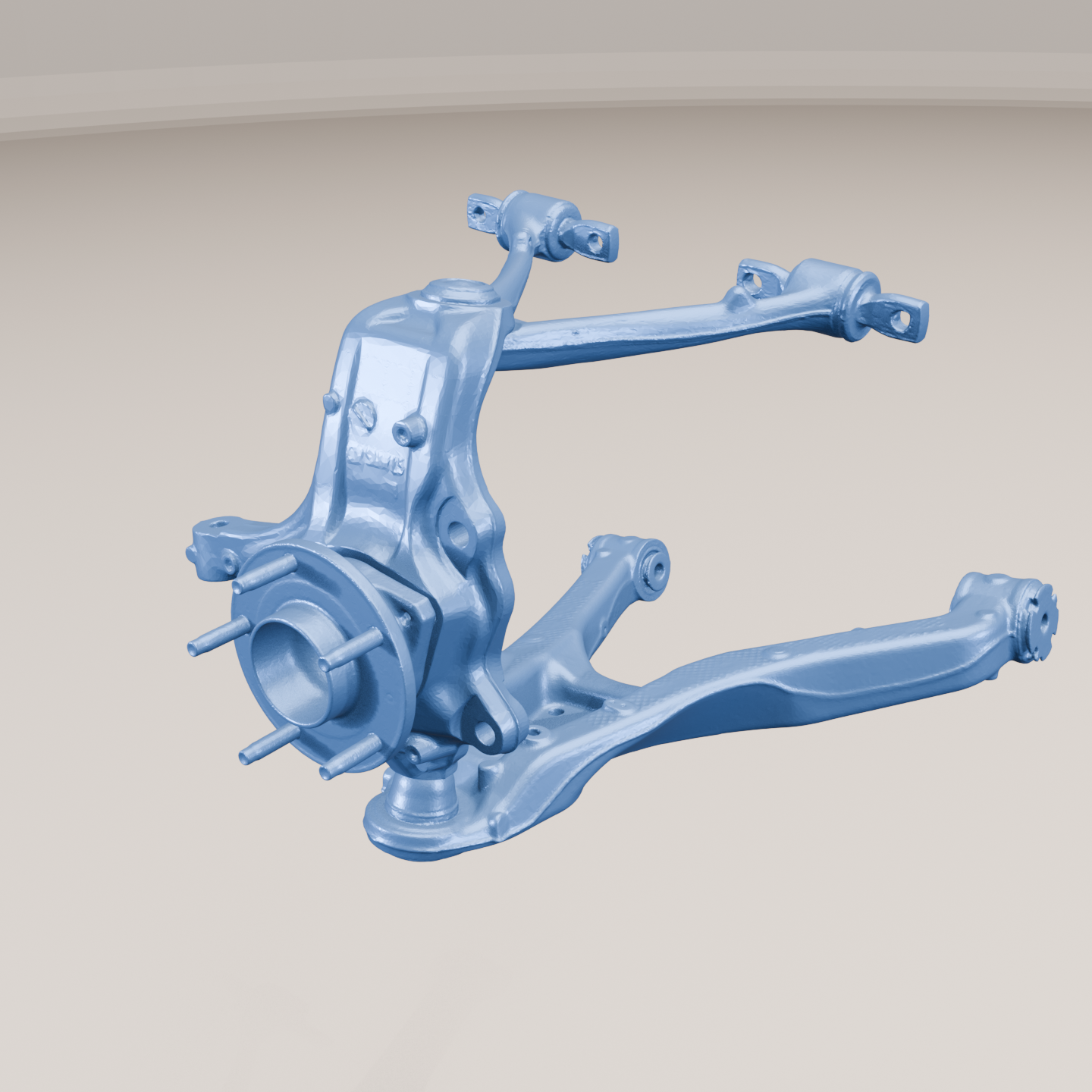

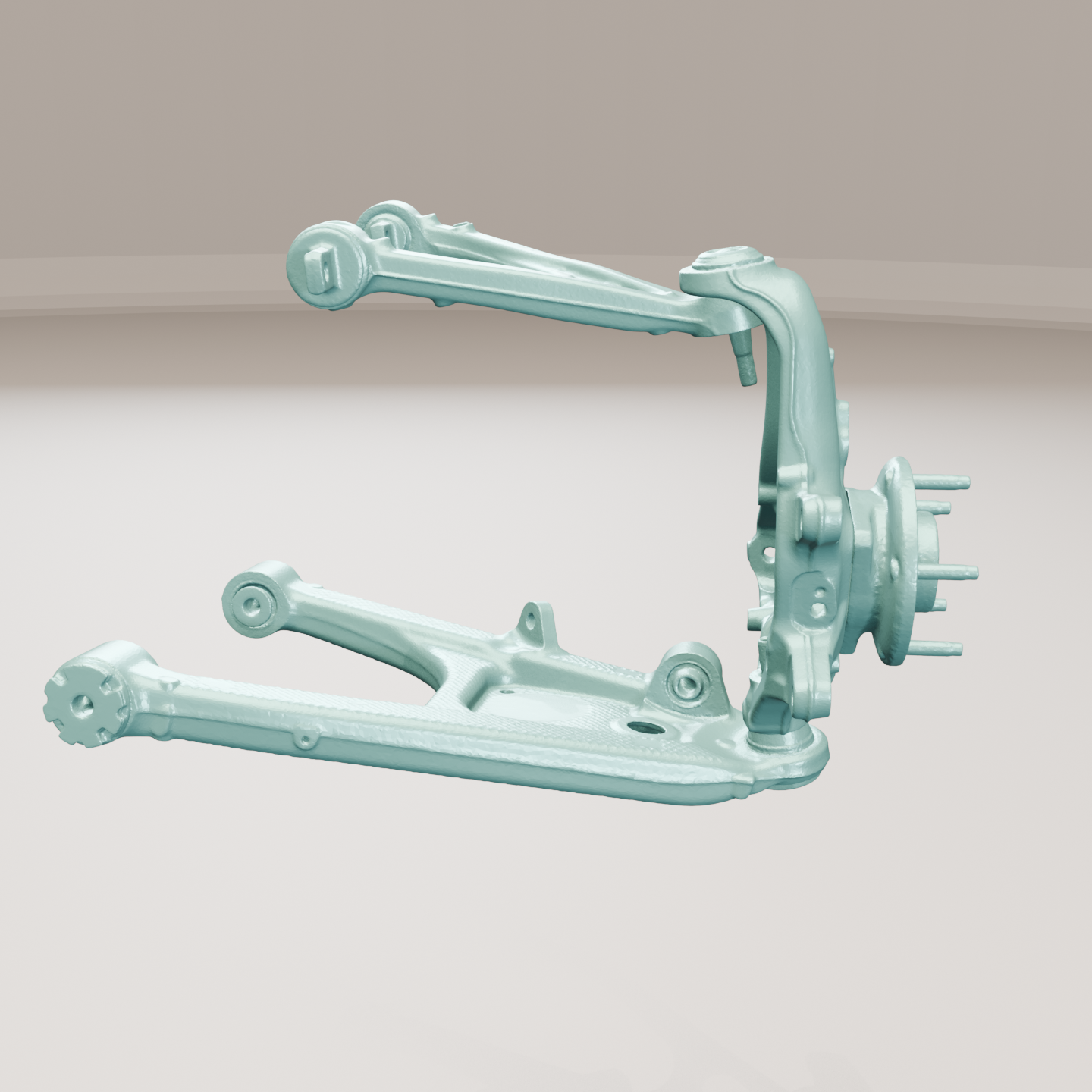

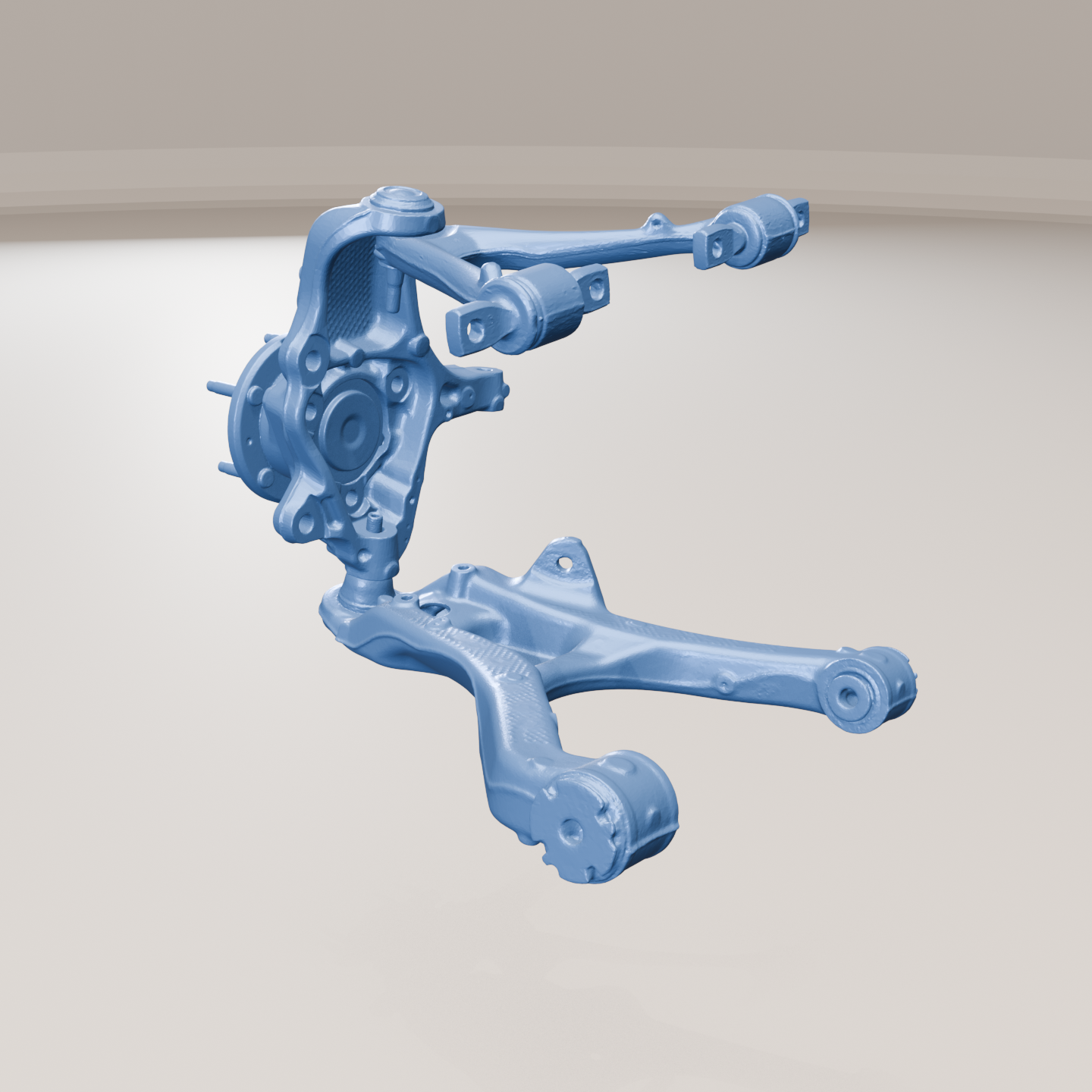

Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase
