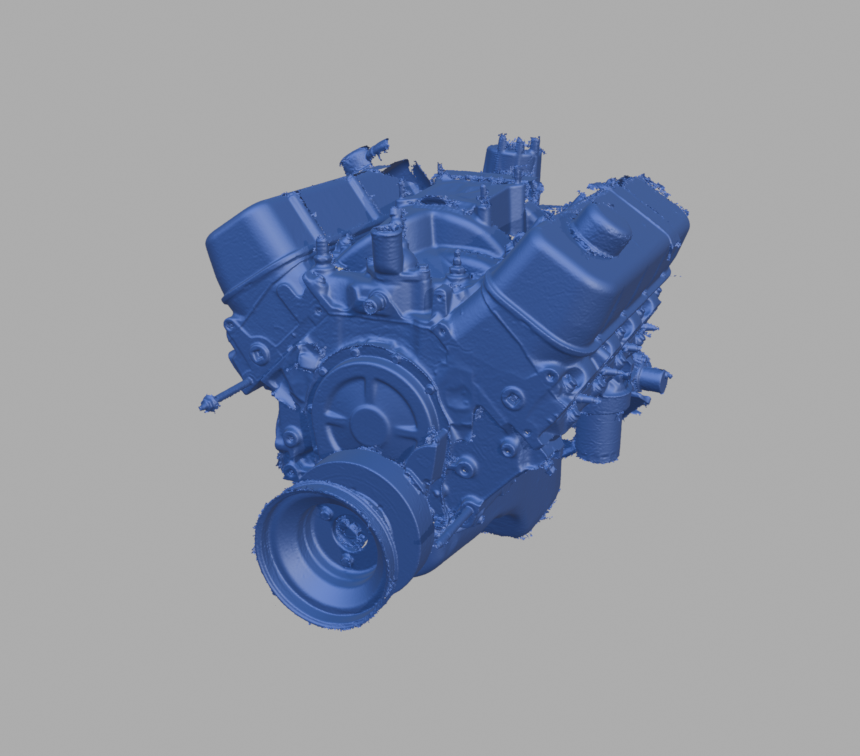

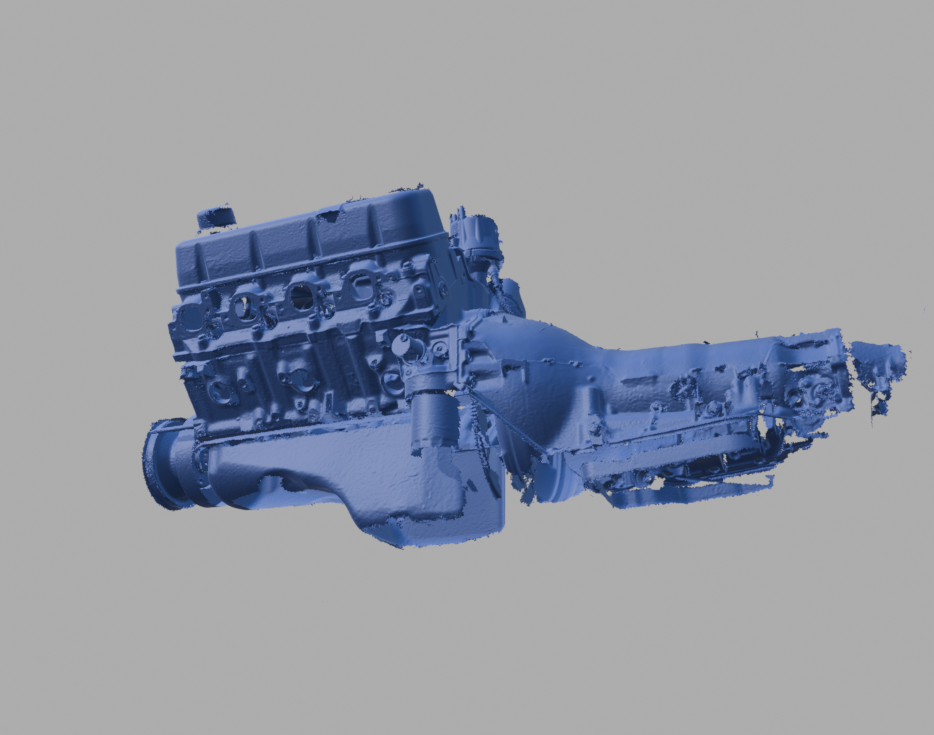

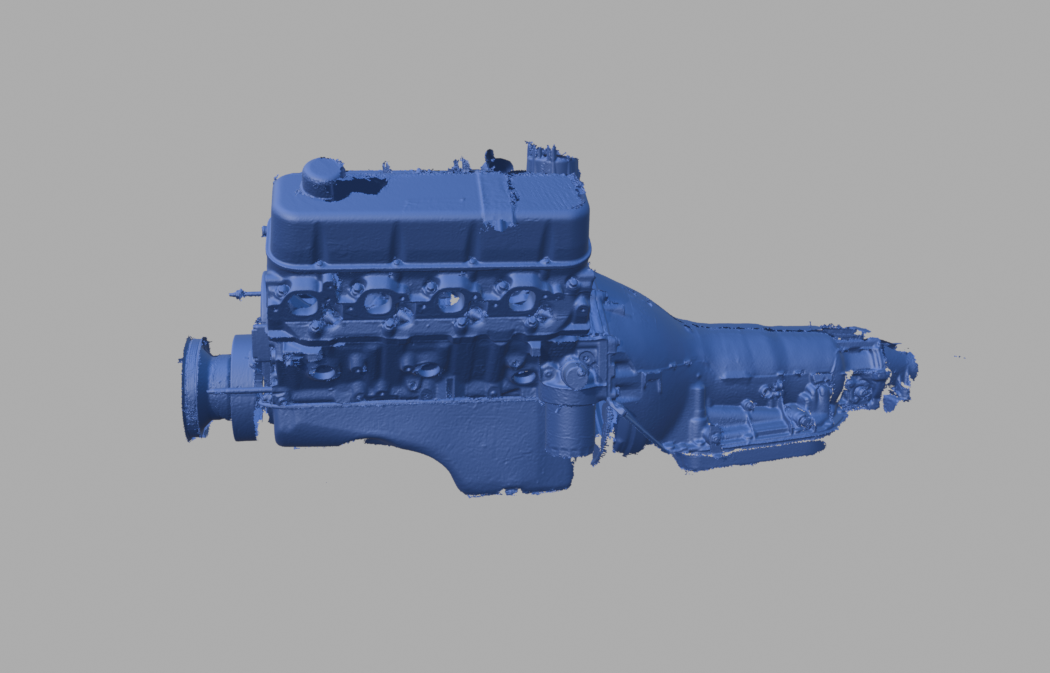

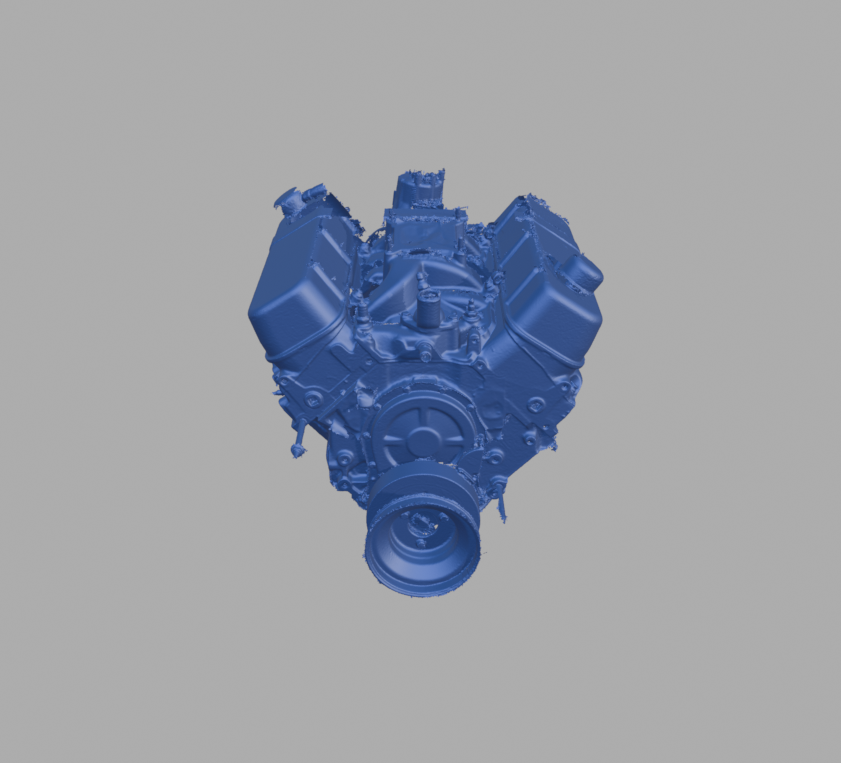

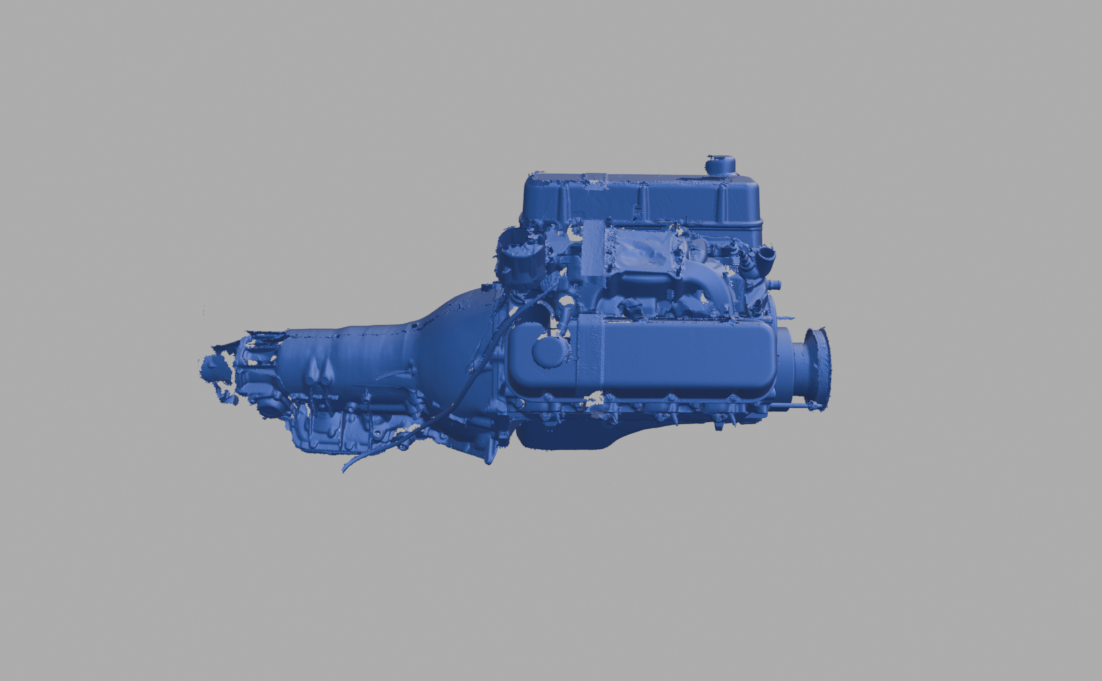

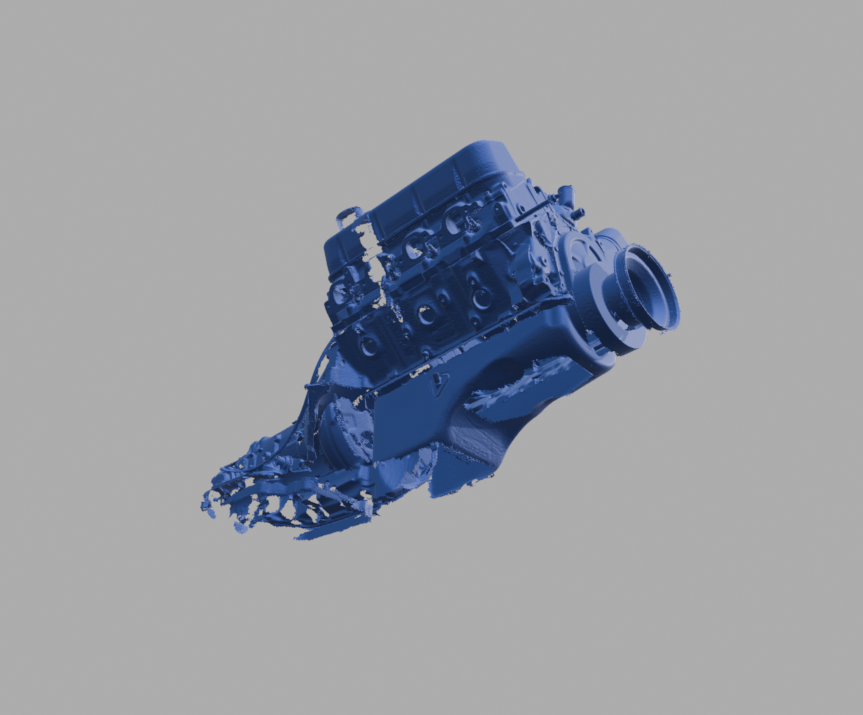

Partial 3D scan of a Chevrolet Big Block engine assembly, including the engine block, cylinder heads, and attached transmission. This dataset captures the overall external geometry and key features of the powertrain assembly for reference and development purposes.
The lower portion of the engine and transmission is not fully scanned, meaning the underside geometry is incomplete. As such, this scan is best suited as a base reference rather than a fully production-ready model.
Use cases include:
Packaging and fitment studies
Powertrain layout and spatial reference
Custom mounts, accessories, and surrounding component design
Reverse engineering workflows (with cleanup)
Visualization and digital archiving
This is a scan-based mesh, not native CAD. Cleanup, hole filling, and surface reconstruction may be required depending on your application. All dimensions should be verified against physical hardware before manufacturing or critical engineering use.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
