Chevrolet 350ci Timing Cover - 3D Scan (STL) [Item: MHI]

Collaborator: Matthew Hillocks

This listing provides a high-resolution 3D scan of a Small Block Chevrolet 350ci timing cover, capturing the external casting geometry and major mounting features. The scan is ideal for reverse engineering, CAD reference, accessory development, and restoration or custom fabrication projects.

The Small Block Chevrolet timing cover seals the front of the engine and houses the timing chain assembly while providing mounting interfaces for front engine accessories. As one of the most common front engine components across the Small Block Chevrolet family, it is frequently referenced for restoration, aftermarket component development, and custom engine builds.

Scan Compatibility

Compatible with Small Block Chevrolet 350ci engine applications (please verify your specific timing cover variant and configuration for your intended use).

Common Applications

• Reverse engineering for replacement or aftermarket timing covers

• Front accessory and water pump development

• CAD reference and engineering workflows

• Restoration projects

• Custom engine fabrication

• 3D visualization and simulation

File Suitability

Ideal for CAD reference, reverse engineering, component development, and fabrication workflows.

Important Notes

• This listing is for the timing cover only. No engine block or other engine components are included.

• The scan captures the external geometry only and does not include internal sealing surfaces or gasket details beyond what is externally visible.

• Scan is not guaranteed to be watertight or fully complete; some areas may require cleanup or surface reconstruction depending on your intended workflow.

Collaborator Notes

• Standalone timing cover scan.

• Suitable for front-end component reference and reverse engineering applications.

Disclaimer

We encourage you to download the sample file to assess scan format, output quality, and compatibility with your preferred software before purchase. Different CAD and mesh-processing packages may interpret scan data differently, so verifying compatibility with your workflow is recommended.

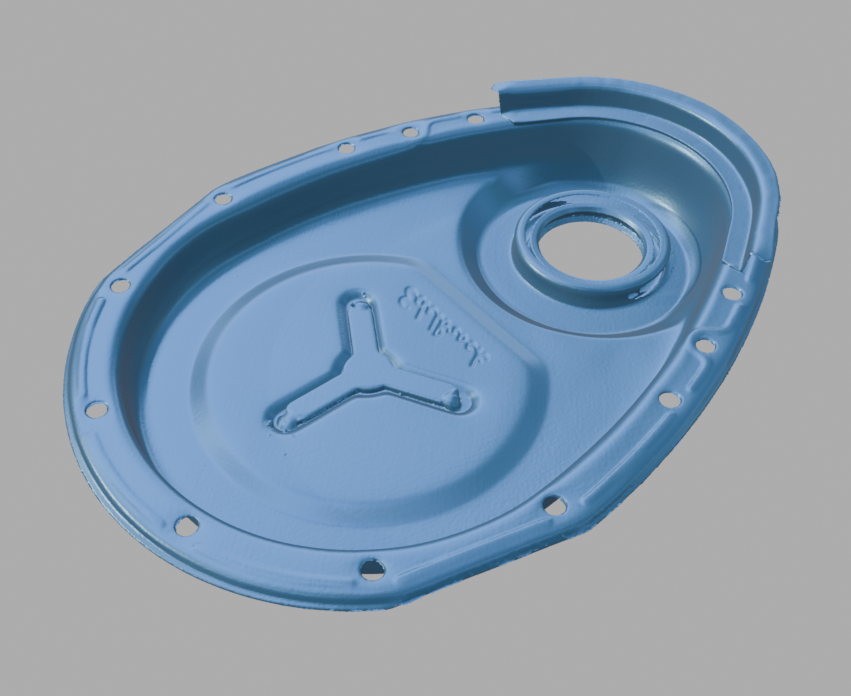

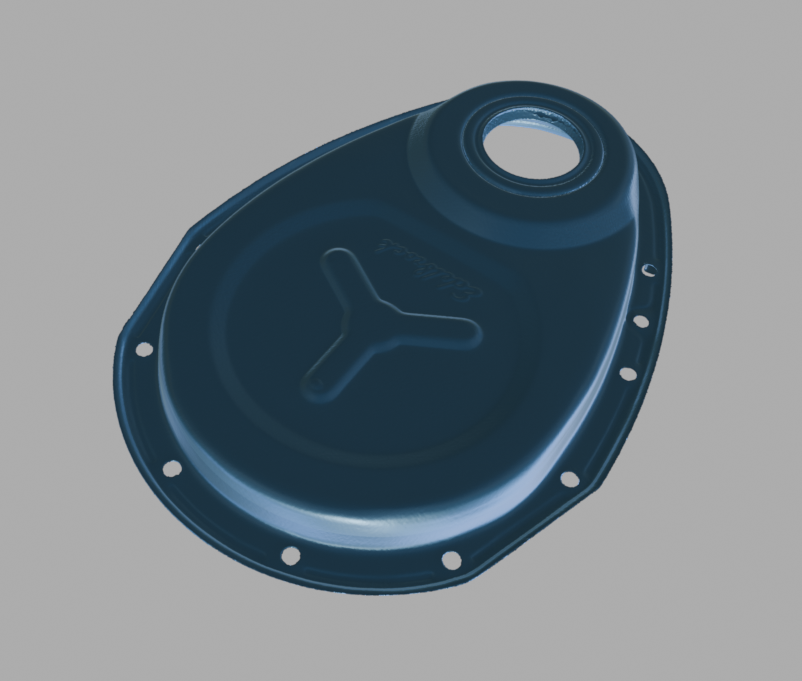

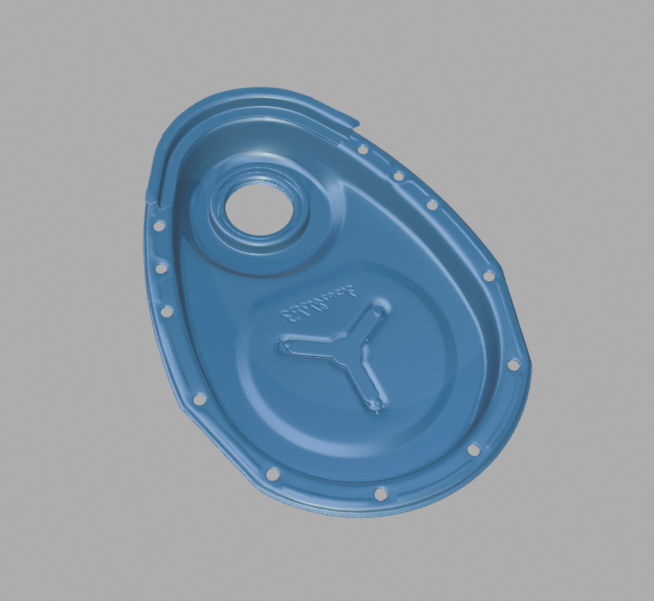

Please refer to the provided part images to evaluate scan quality, coverage, and overall representation.

While every effort is made during scanning to ensure accuracy, we recommend verifying critical dimensions against the physical component if your application requires tight tolerances or manufacturing-level precision.

Reviewing both the sample file and reference images will help ensure the scan meets your requirements prior to purchase.
