67-72 SB C10 TRUCK BODY - 3D Scan (STL) [Item: PSU]

Contributor: Patrick Sukraw

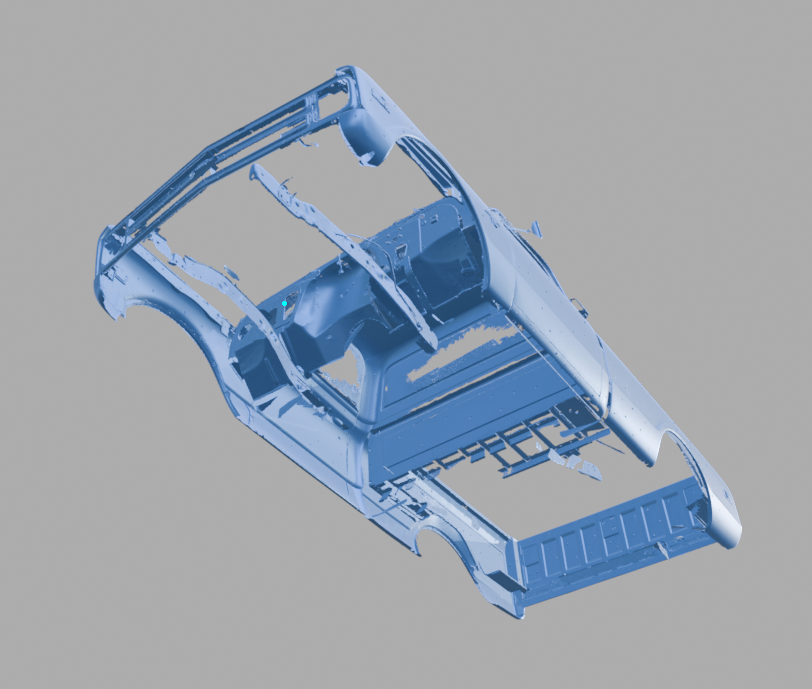

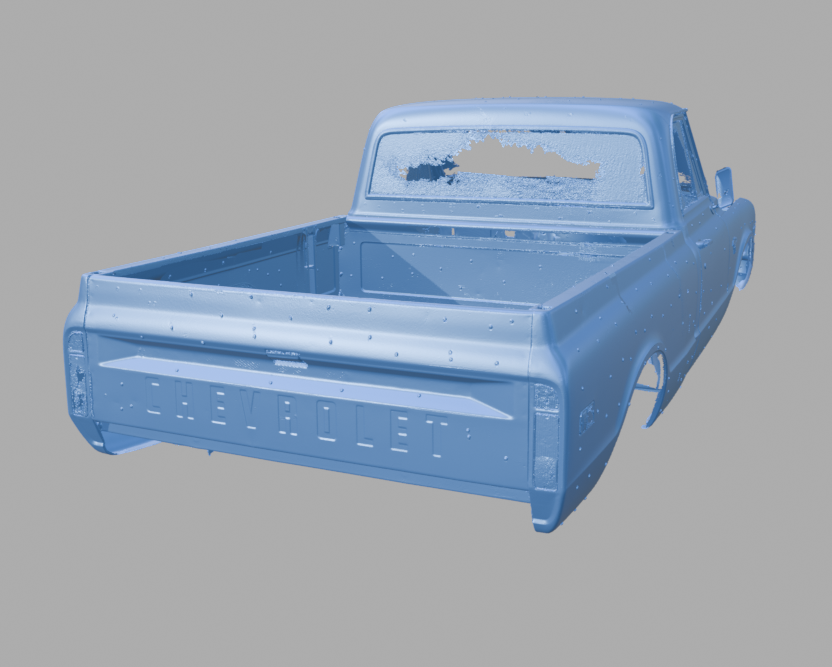

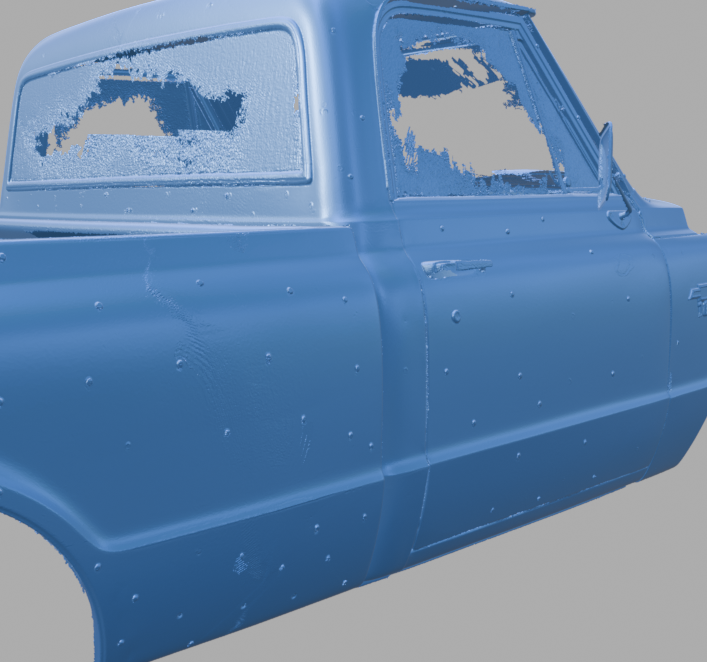

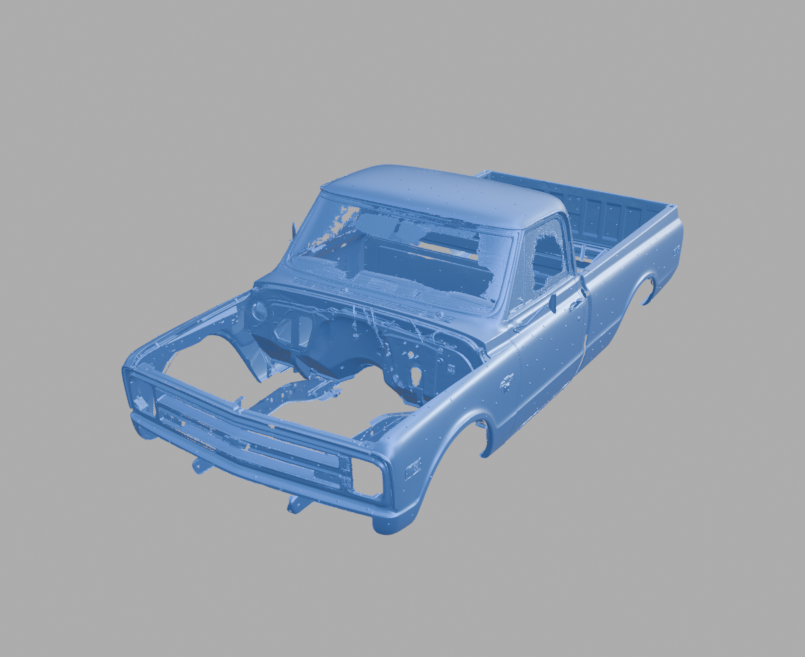

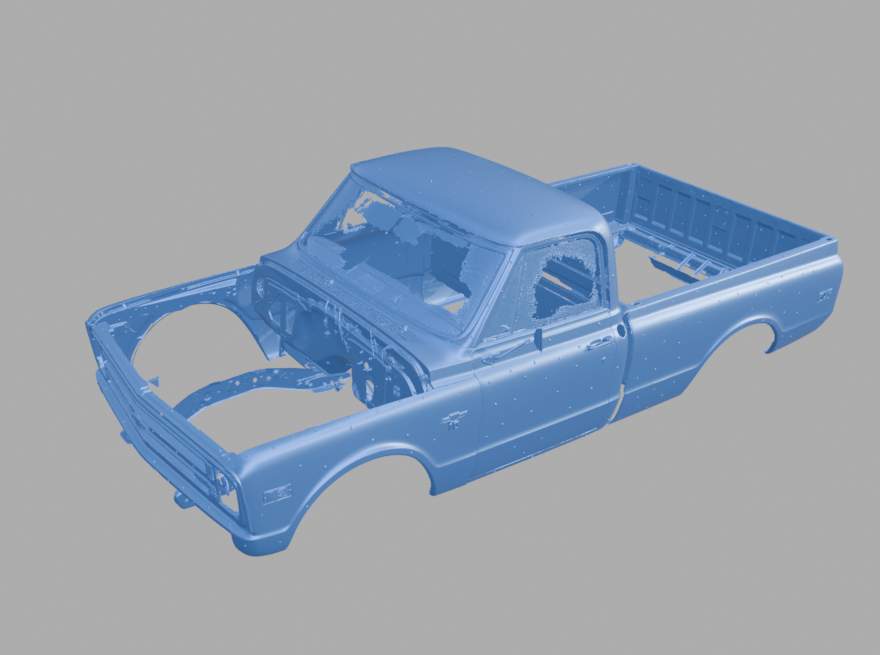

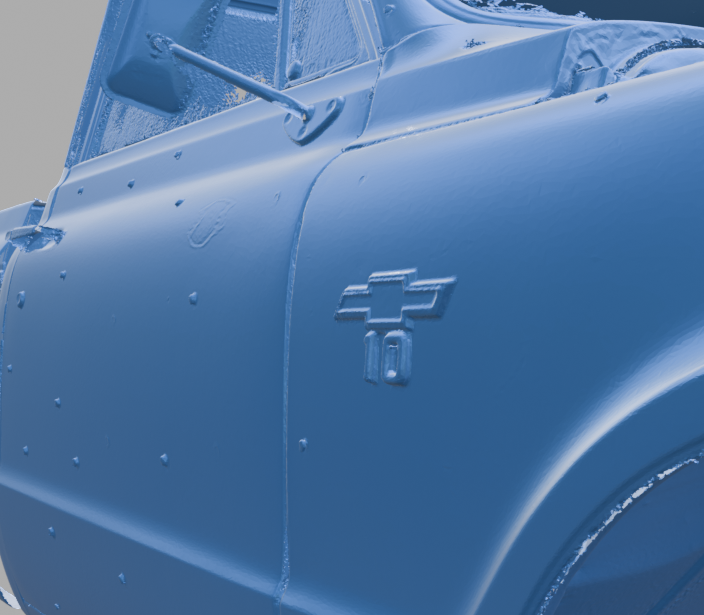

This listing provides a high-resolution 3D scan of a 1967–1972 Chevrolet C10 short bed truck body, capturing the complete exterior shell geometry and key structural interfaces used across the second-generation C/K truck platform. The scan includes the cab, bed, roof, firewall, front bumper, and body panels, making it ideal for vehicle development, body kit design, chassis integration, and reverse engineering applications.

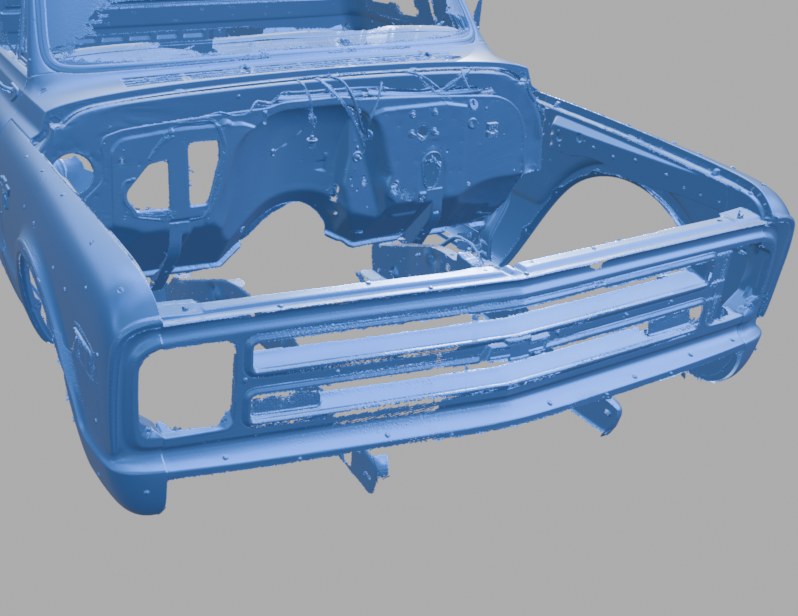

The engine bay was scanned without the drivetrain installed, allowing clear visibility of the firewall and surrounding structural geometry. Exterior panels including the doors, guards/fenders, cab structure, and bed are present in the scan. The hood is not included, and front-end accessories such as headlights, grille components, intercoolers, and other bolt-on hardware are not fitted.

The scan captures detailed external geometry including panel contours, mounting regions, wheel arch profiles, and major body interfaces, making it suitable for CAD-based workflows, fabrication planning, and vehicle packaging studies.

Scan Compatibility

Compatible with 1967–1972 Chevrolet and GMC C10/C15 truck body platforms (please verify specific variant and configuration for your application).

Common Applications

• Custom chassis and suspension packaging

• Widebody and aero development

• Engine bay and firewall integration studies

• Roll cage and interior packaging

• Reverse engineering for replacement or aftermarket panels

• Vehicle rendering, visualization, and simulation

• Custom fabrication and body modification projects

File Suitability

Ideal for CAD reference, body development, packaging studies, and vehicle engineering workflows.

Important Notes

• Hood is not included in the scan.

• Front-end accessories such as headlights, grille assemblies, intercoolers, and related components are not present.

• Engine bay is empty, providing visibility of the firewall and surrounding structure.

• Scan is not watertight or fully complete; some areas may require cleanup or surface reconstruction depending on your use case.

• External geometry only; internal mechanical components are not included.

Disclaimer

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
