64 F-100 Short-Bed (SB) Frame - 3D Scan (STL) [Item: PSU]

A$75.00

Contributor: Patrick Sukraw

Please be aware that due to an issue with uploading the file to the website, automatic download is not available at this time. As a result, a separate link to the file will be sent to you via email within 24 hours of purchase. We apologize for any inconvenience this may cause. Unfortunately, this issue is currently beyond our control, but we are actively investigating a solution.

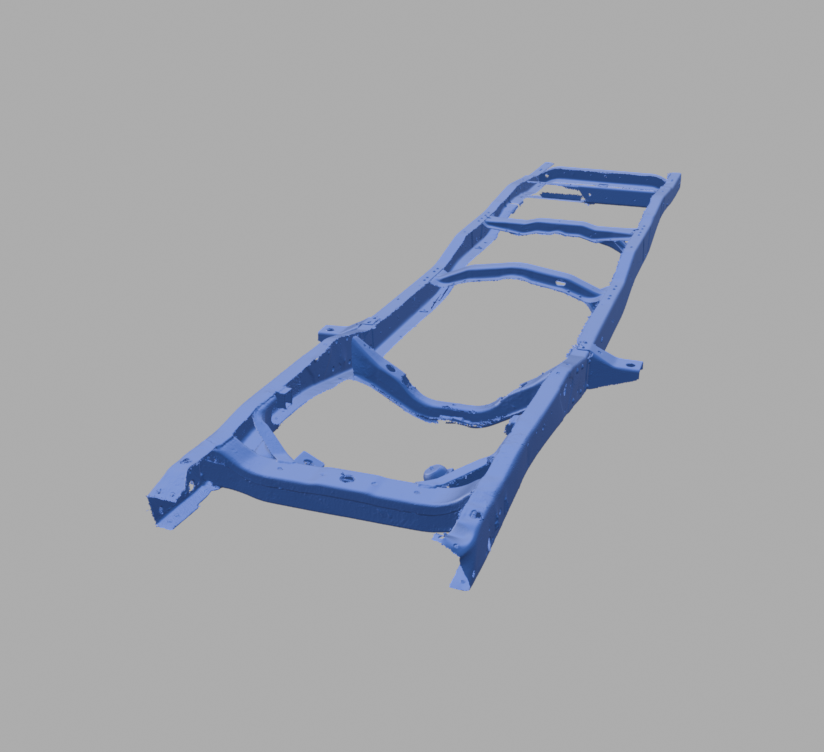

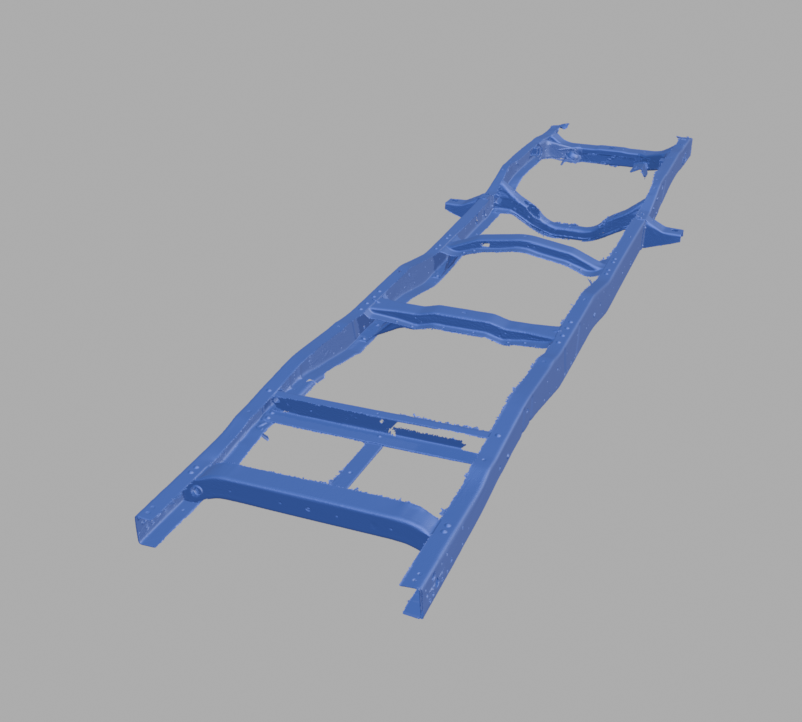

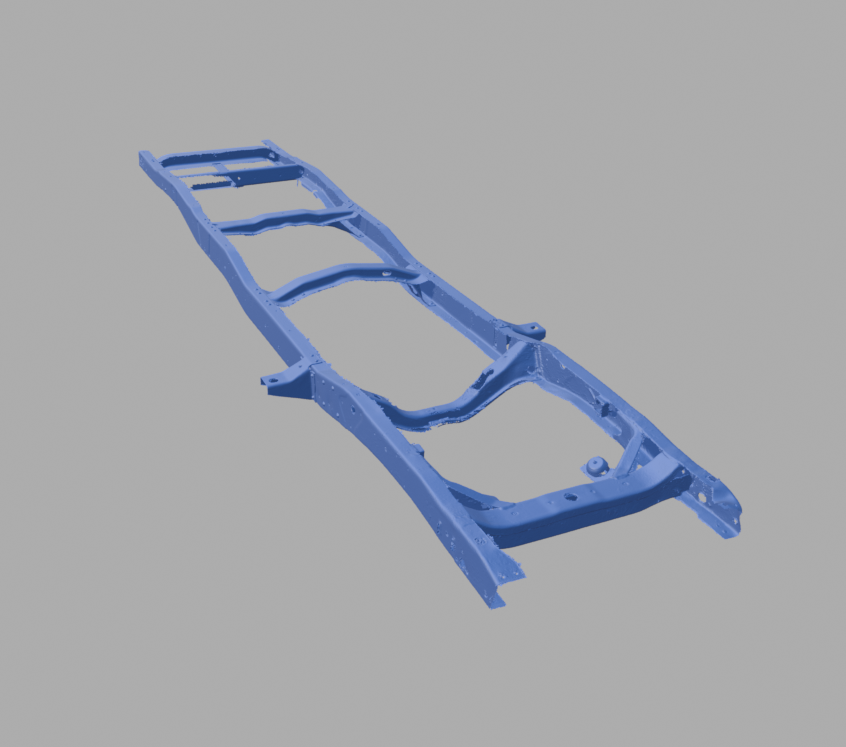

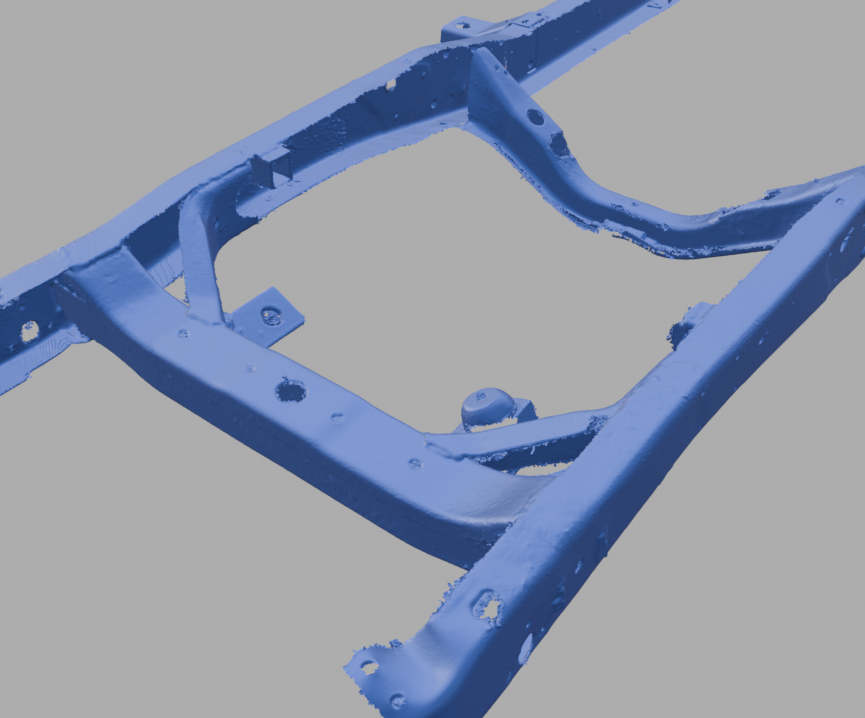

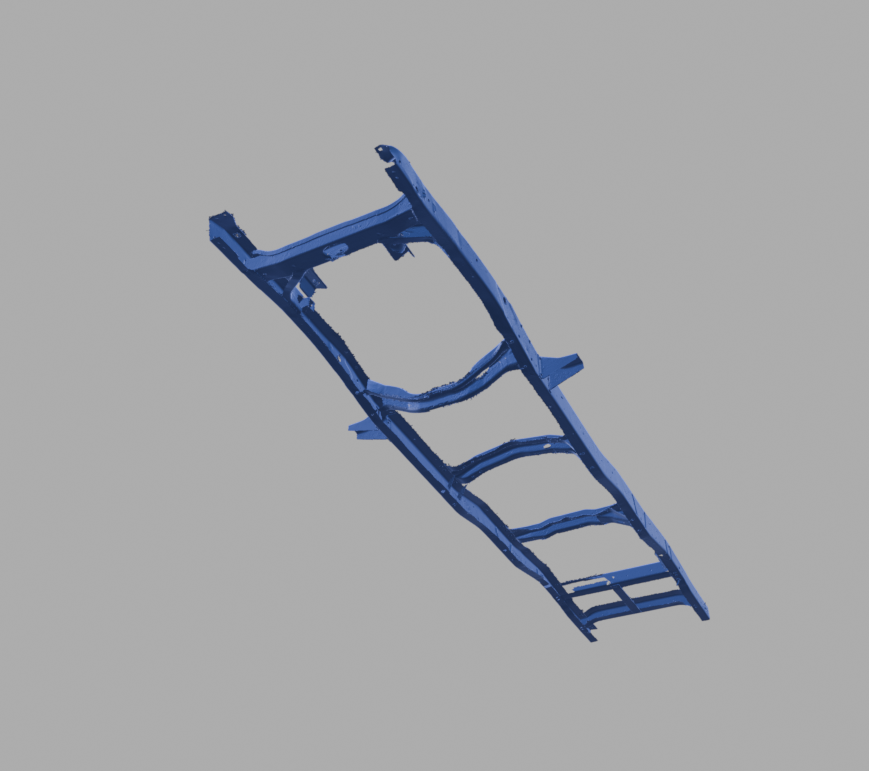

High-resolution 3D scan of a 1964 Ford F-100 short bed frame, captured to document the chassis geometry and structural layout of this classic truck platform. Delivered in .STL format, this scan is ideal for reference, reverse engineering, and custom fabrication projects.

The dataset represents the frame rails, crossmembers, mounting points, and overall proportions, making it useful for:

  • Chassis and suspension layout work

  • Restoration planning and fitment checks

  • Custom frame modifications or drivetrain swaps

  • Digital archiving and visualization

  • Converting to CAD geometry for further design work

This is a scan-derived mesh, not native CAD. Minor surface noise and scan artifacts may be present and should be cleaned or rebuilt as required for precision applications.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
