Contributor: Rocco Cannata

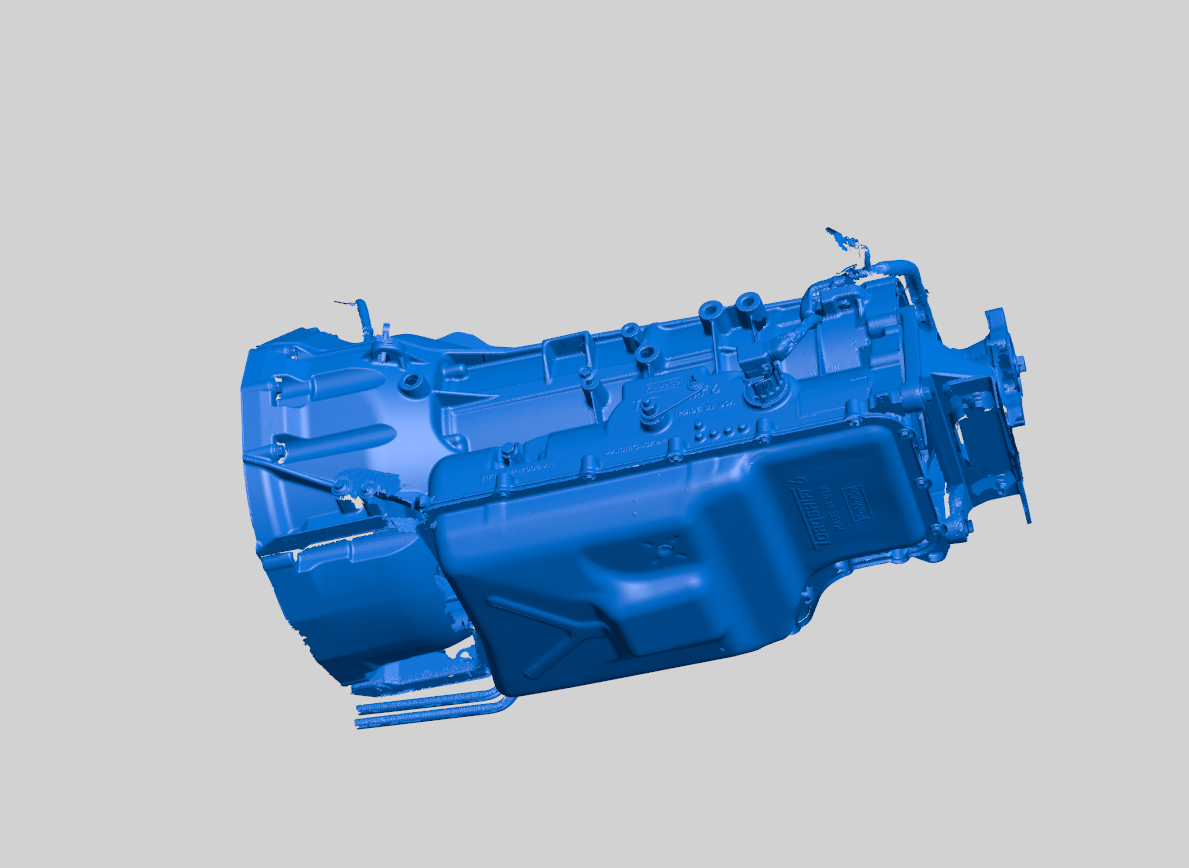

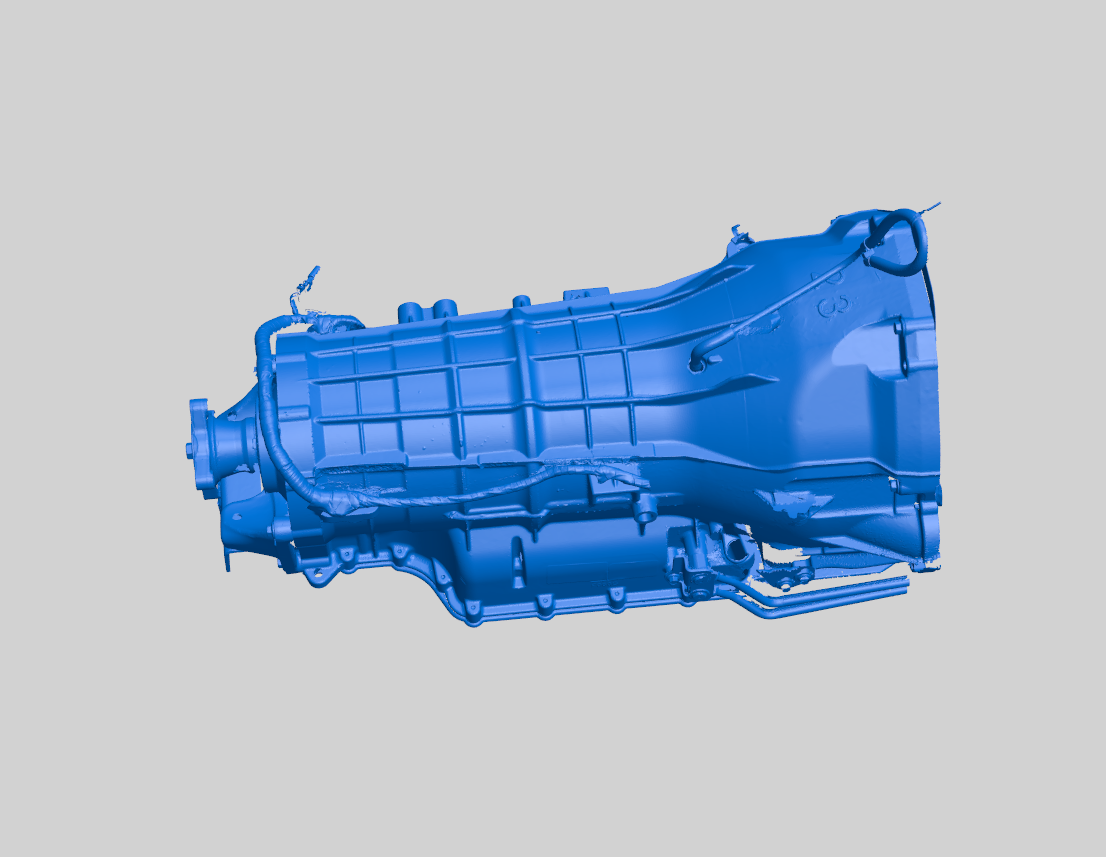

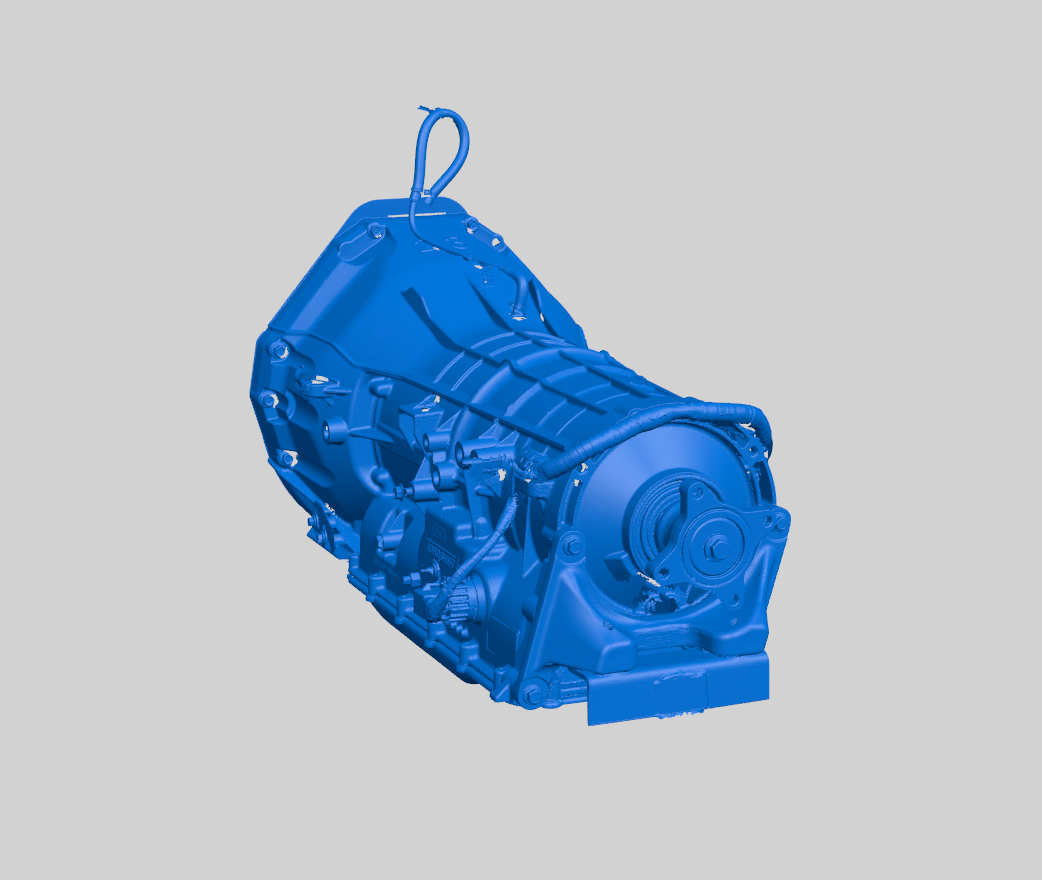

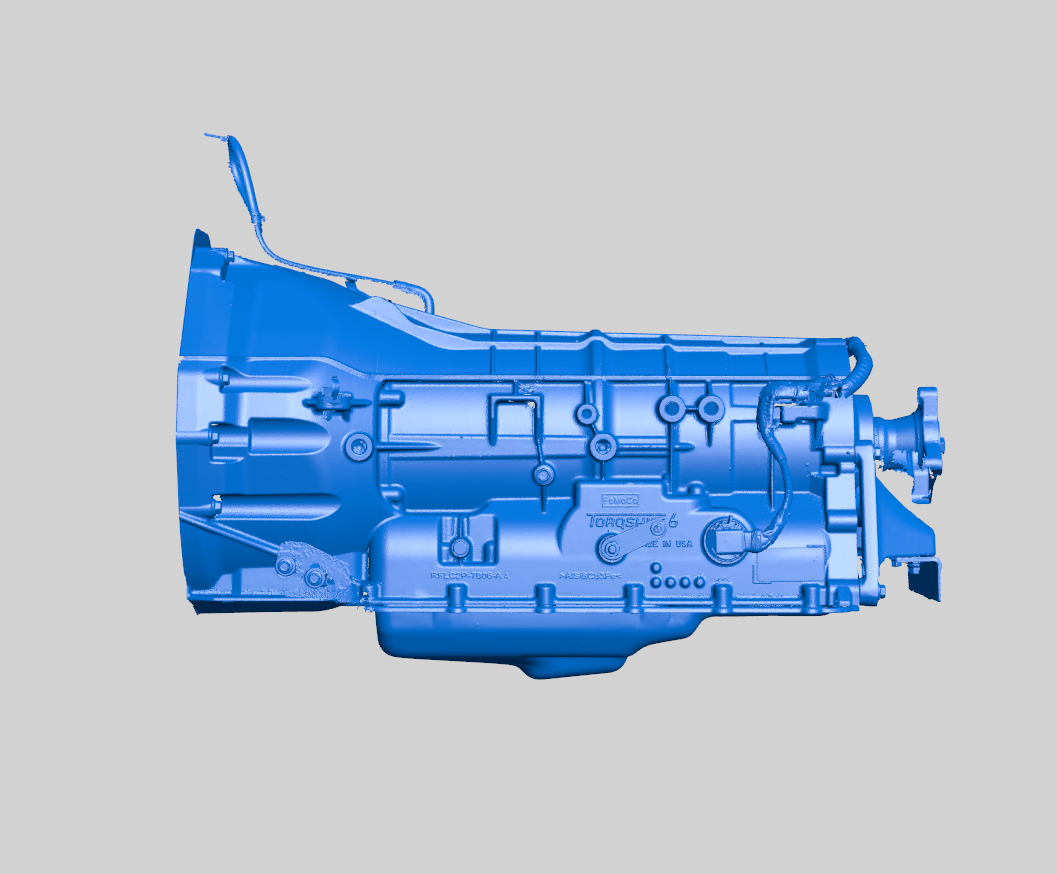

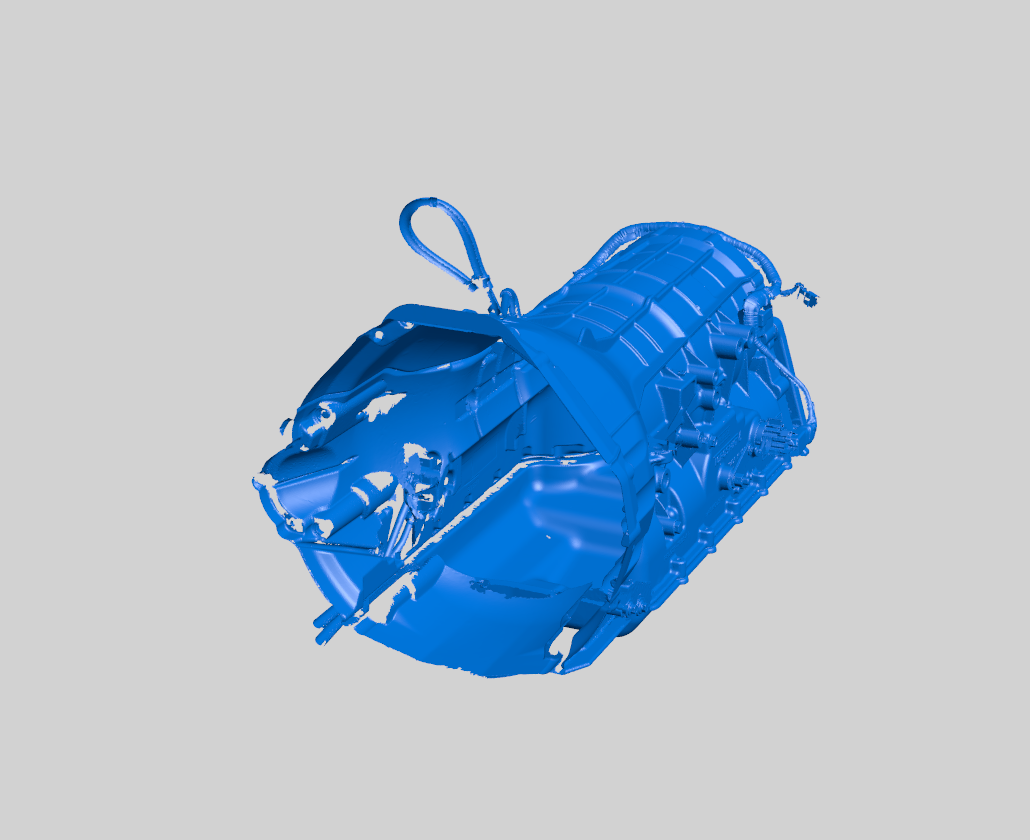

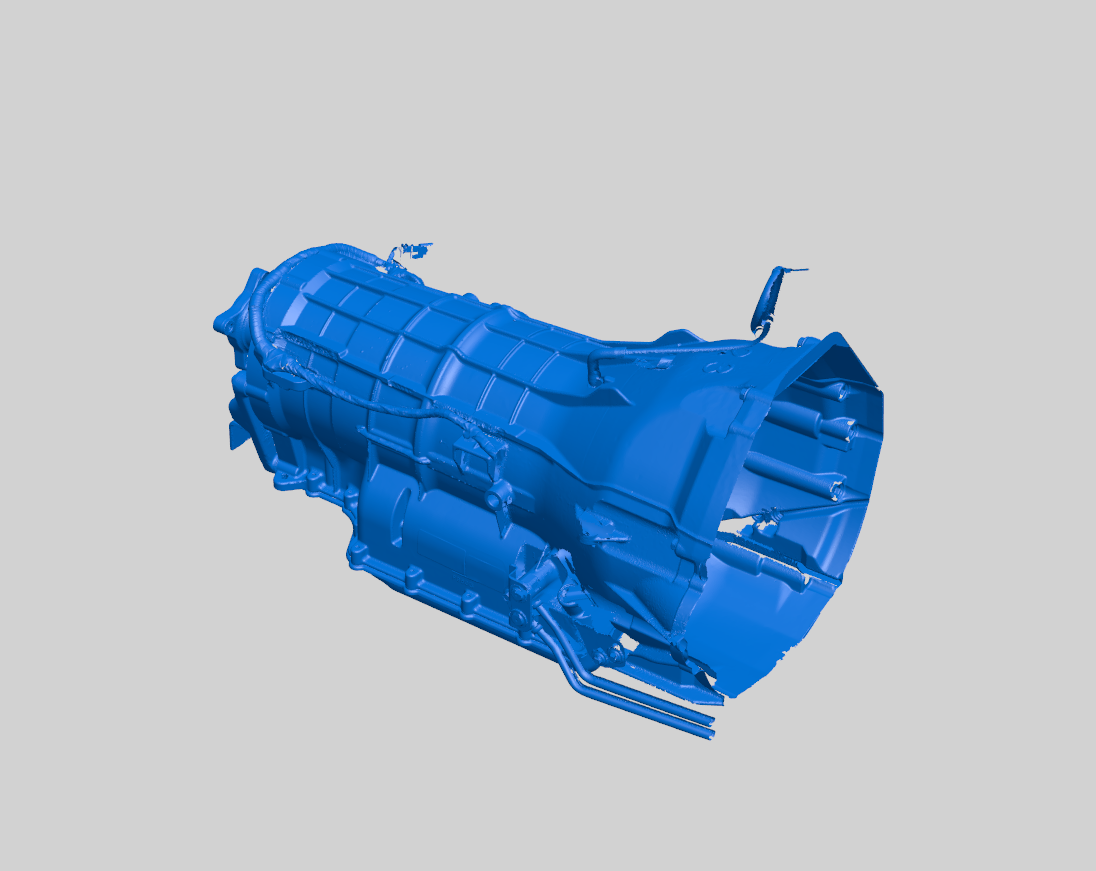

Highly detailed 3D scan that includes a Step file with CAD primitives fit to various features of the transmission. Inside of the bell housing has no data as this was scanned while attached to a 7.3L Godzilla out of an E350 Van.
The Ford 6R140 transmission is a six-speed automatic transmission primarily used in heavy-duty Ford trucks, including the Ford F-Series Super Duty models such as the F-250, F-350, F-450, and F-550.
It is also found in the Ford E-Series vans and select models of the Ford Excursion SUV.
Only the low resolution scan is included due to file size limitations. If you require the raw scan (high intensity) please contact us and we will provide it at no additional cost.
This product contains an STL file and a STP file with CAD primitives.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
