Contributor: Rocco Cannata

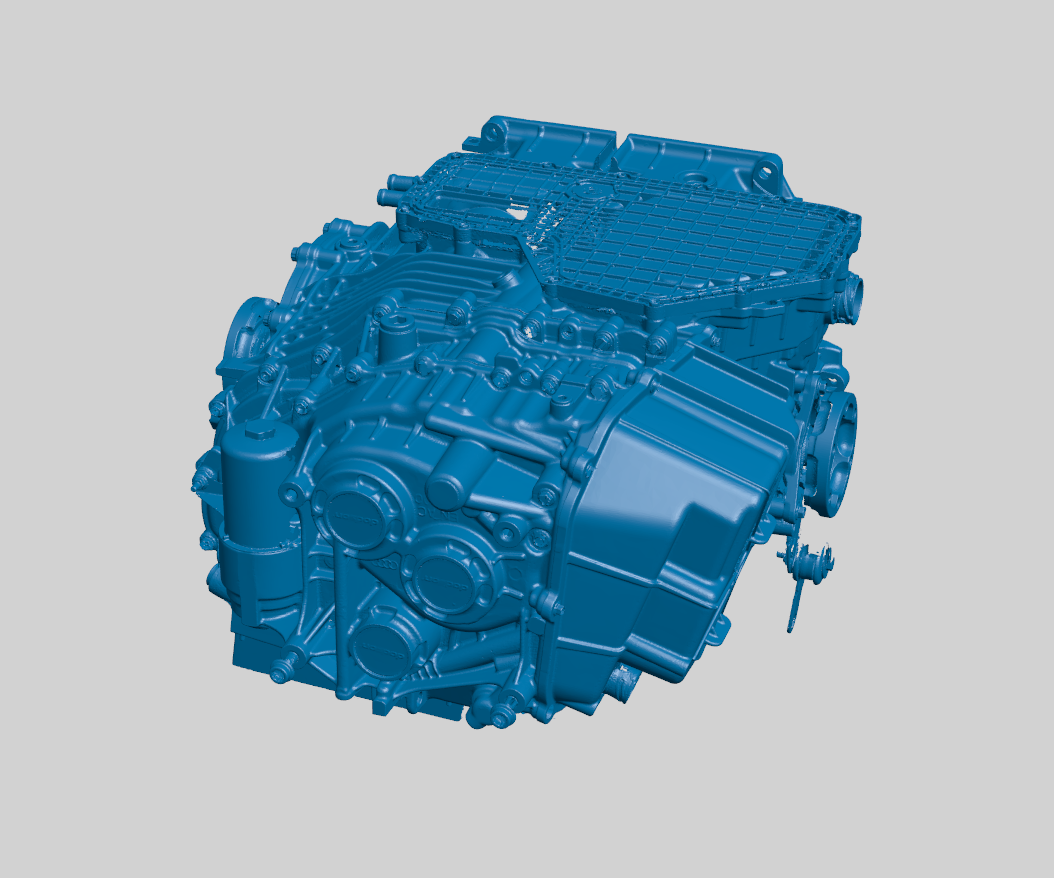

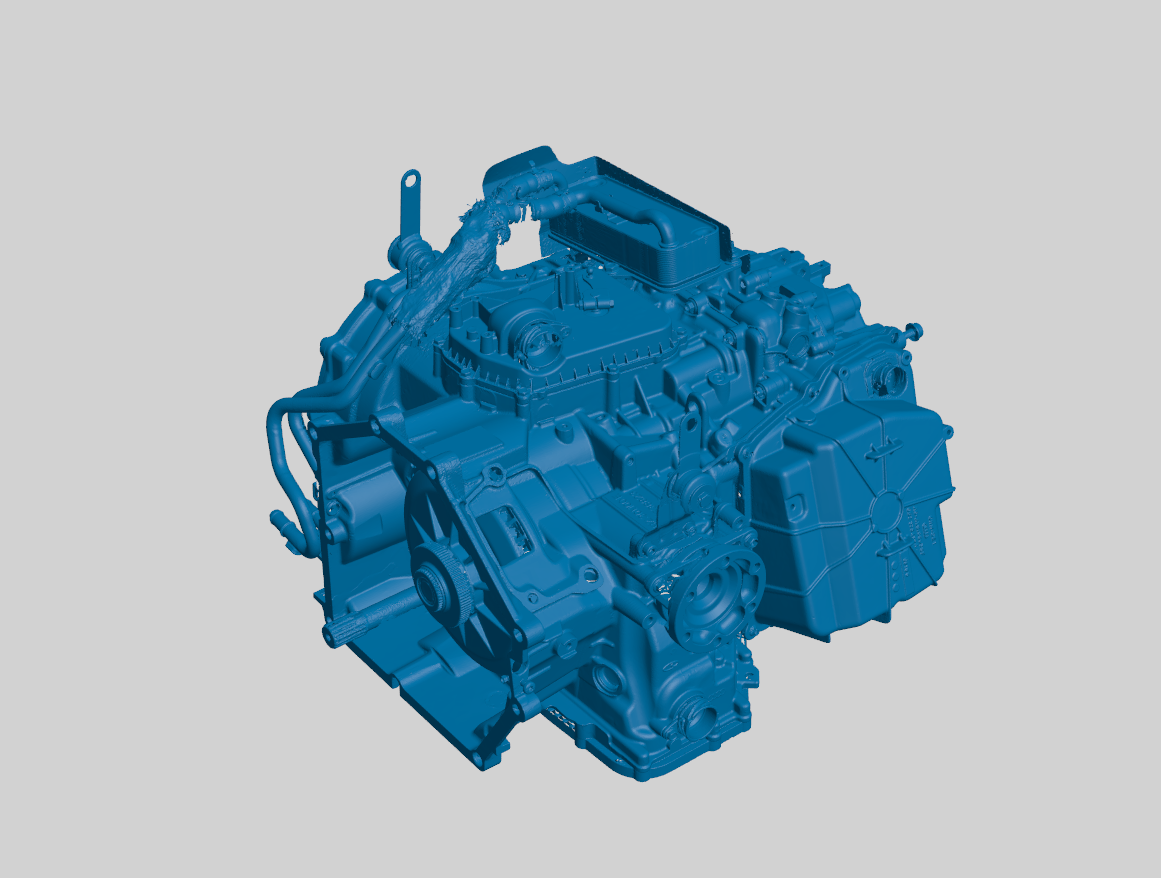

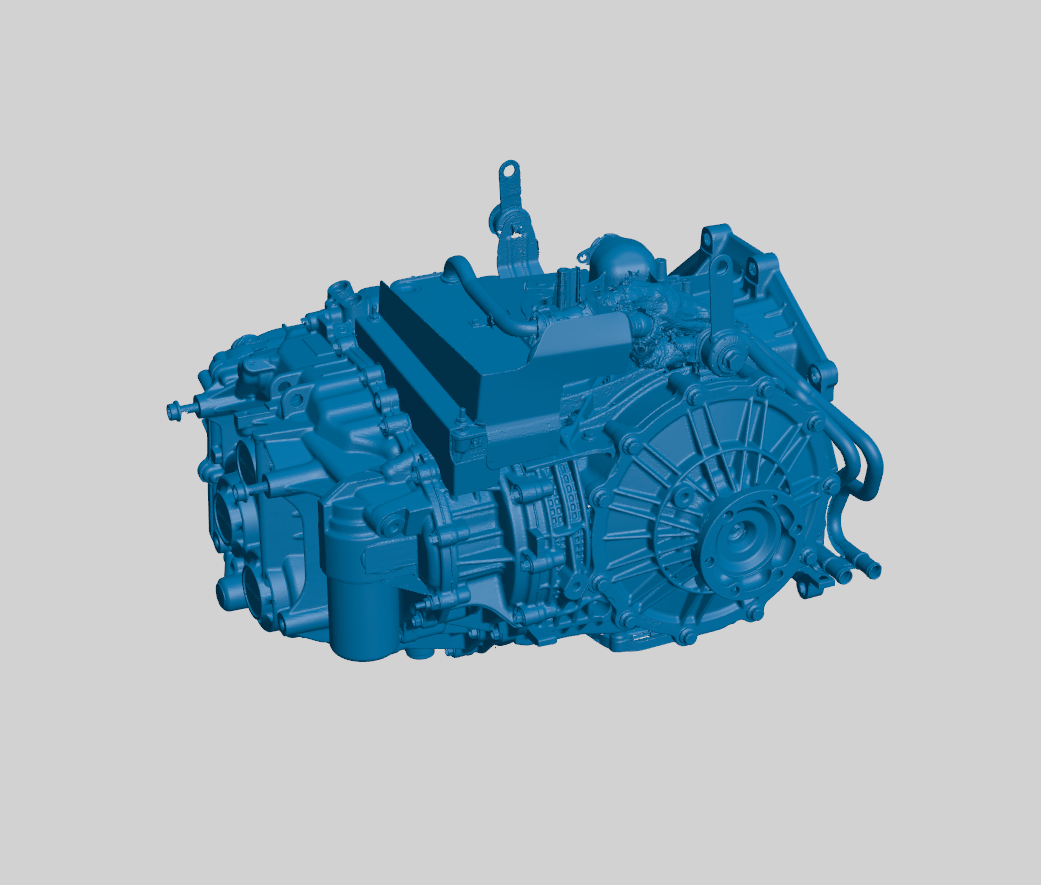

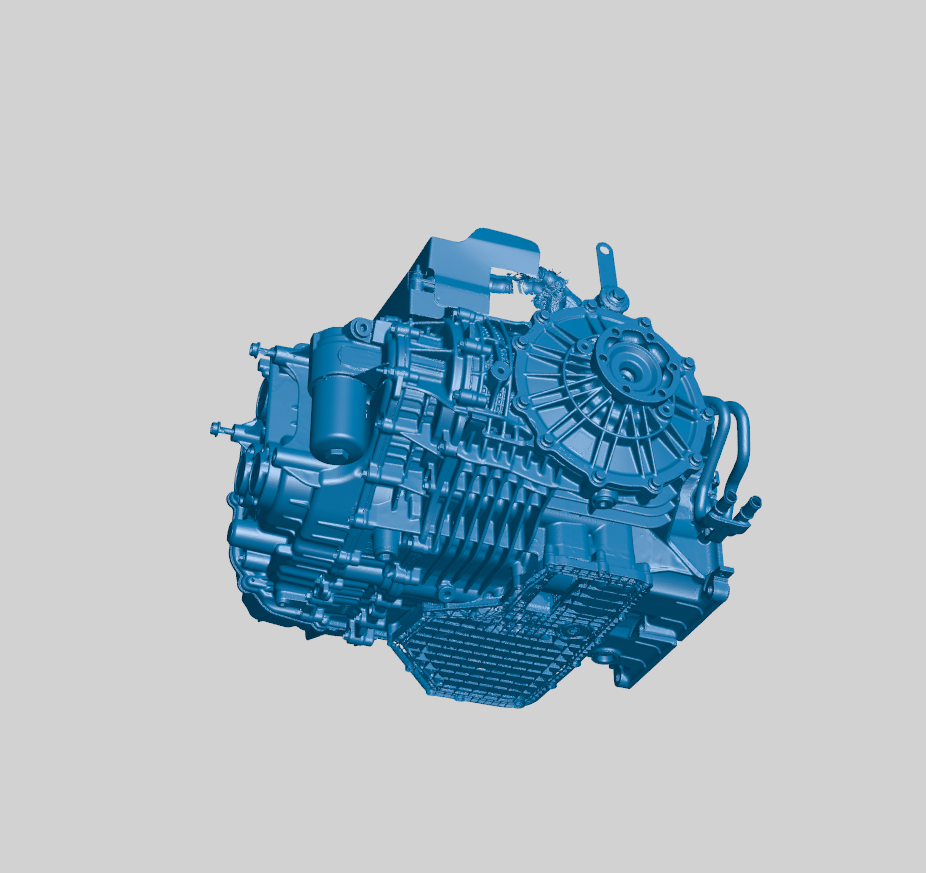

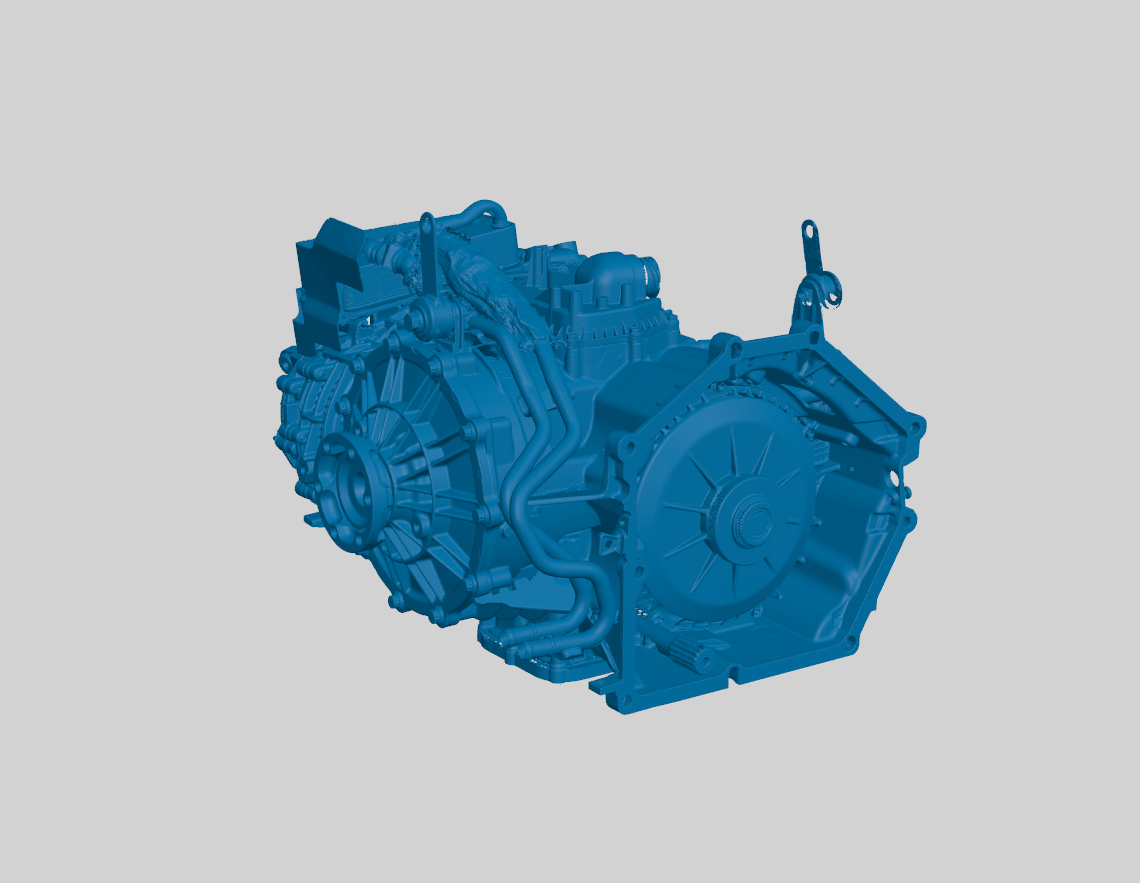

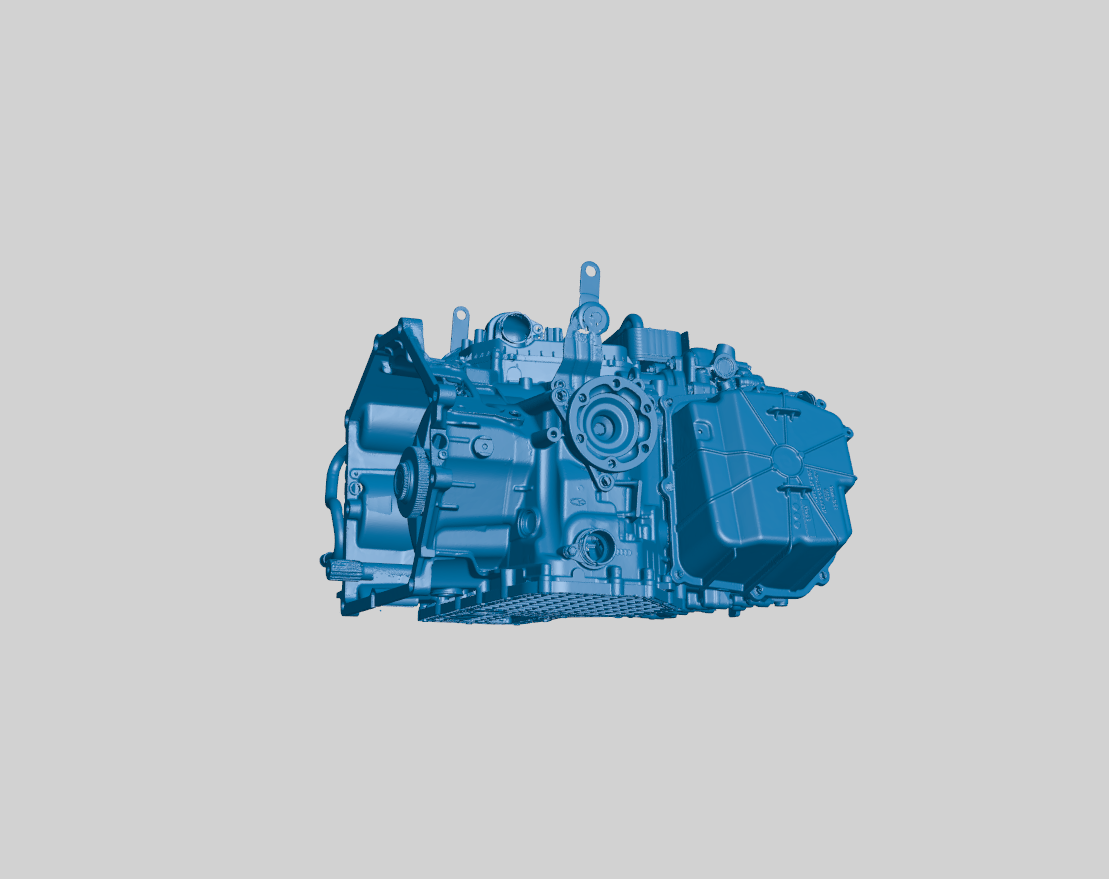

Highly detailed 3D scan that includes a STEP file with CAD primitives fit to various features of the transmission to streamline your projects. This DCT is from a 2015 Lamborghini Huracan and has been upgraded by Dodson.
Only a low intensity scan is included in the files due to file size constraints. If a high intensity scan is needed, please contact us and we will provide it at no additional cost.
Note: This transmission has the same coordinate system as the 5.2L V10 Scan. The scans will align together to form the full powertrain with no added effort..
This product contains an STL file and a STEP file with CAD primitives.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
