Contributor: Rocco Cannata

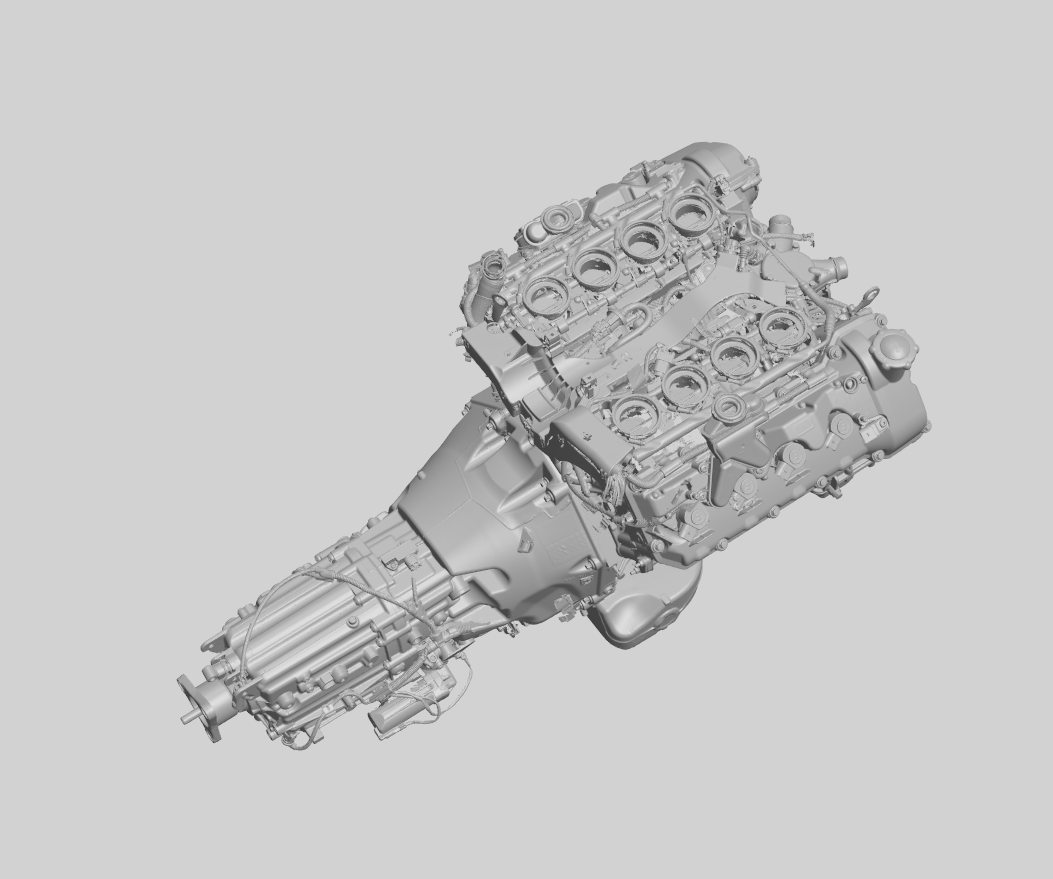

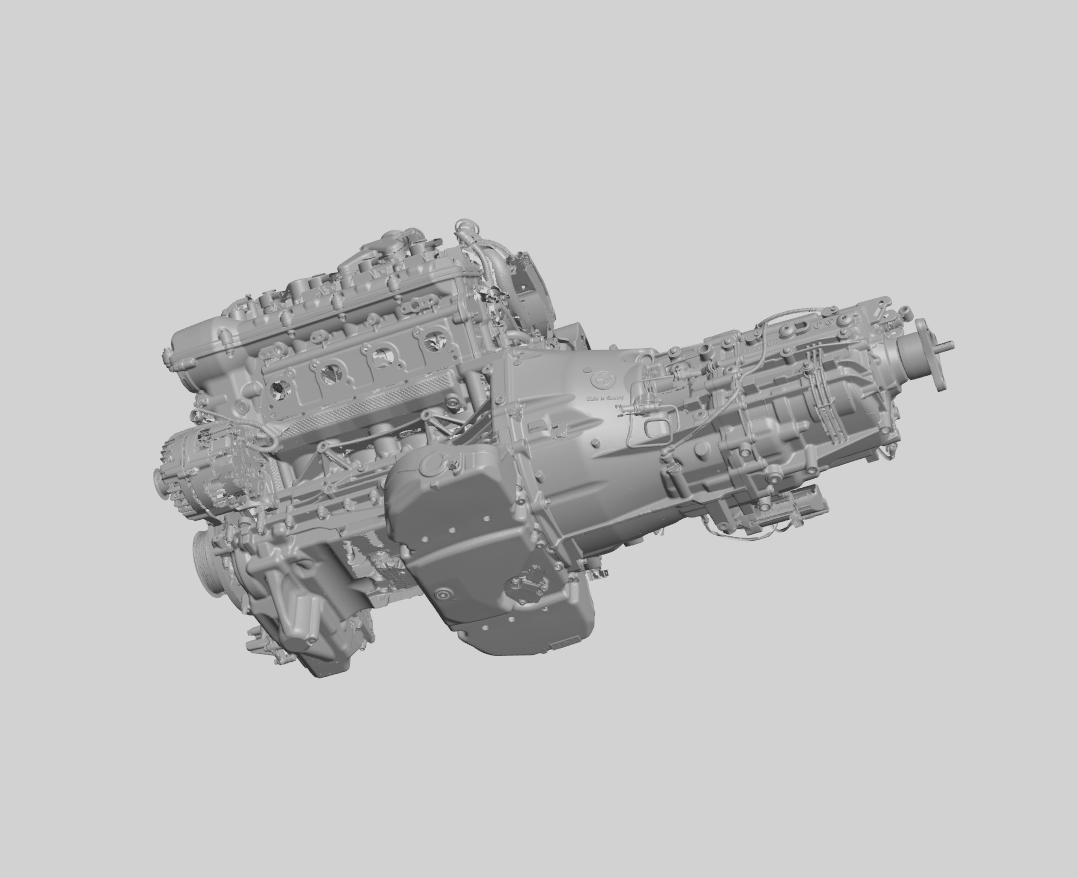

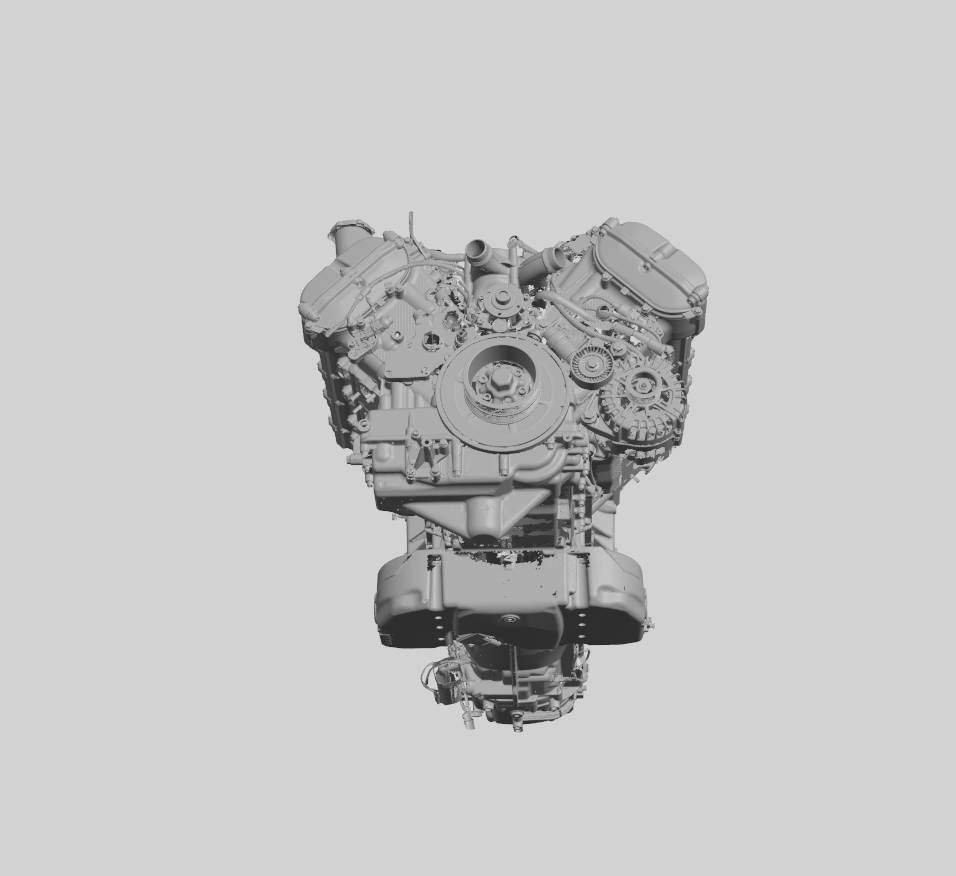

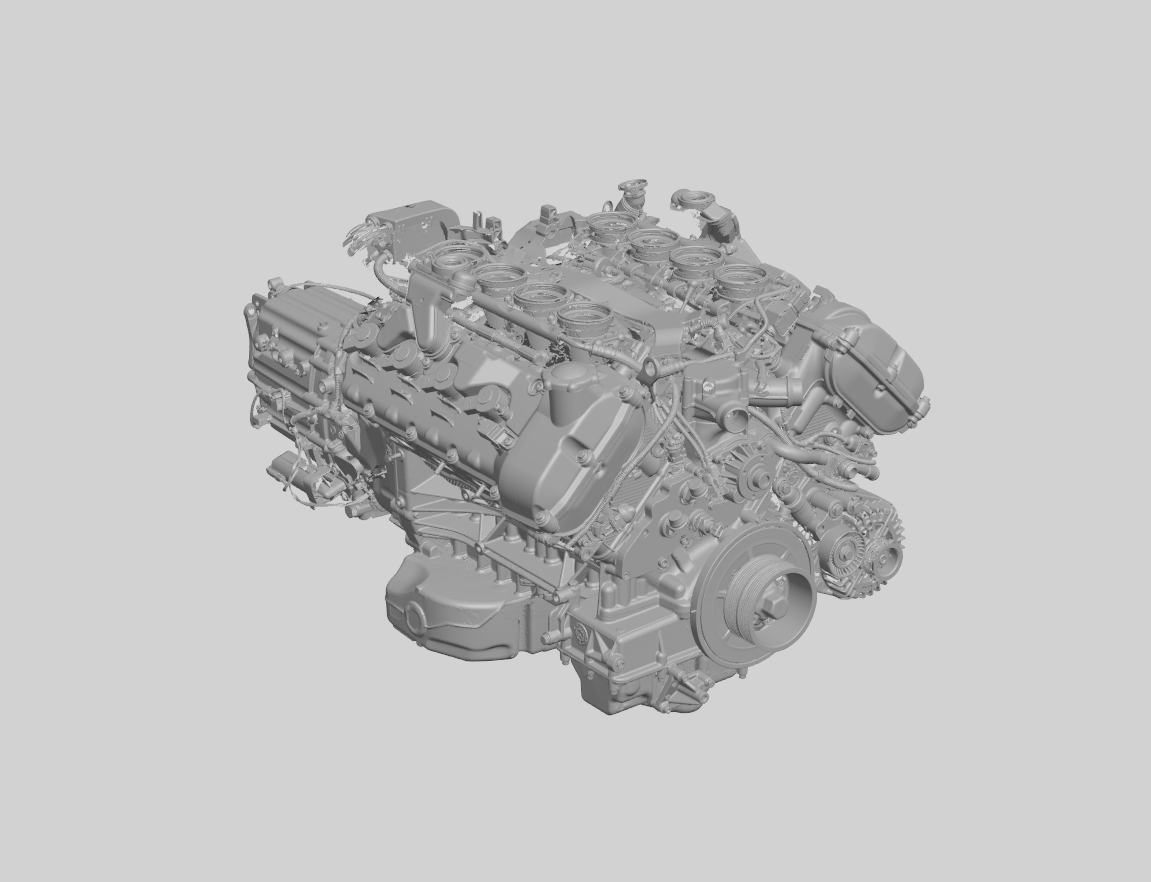

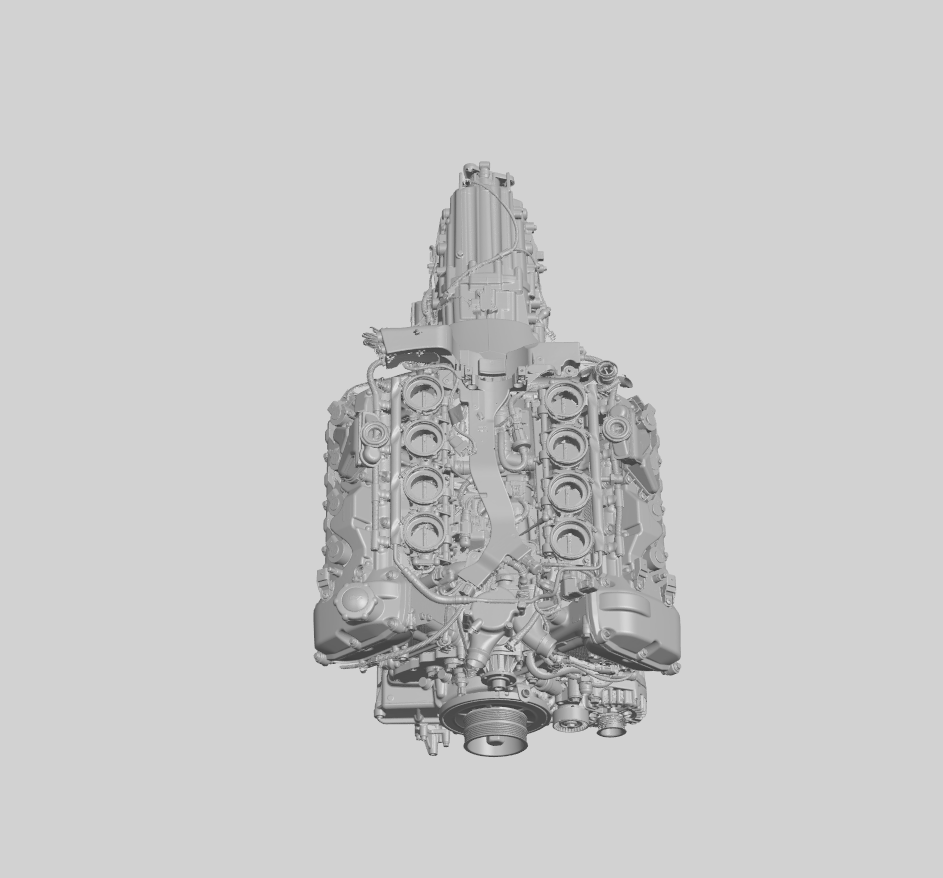

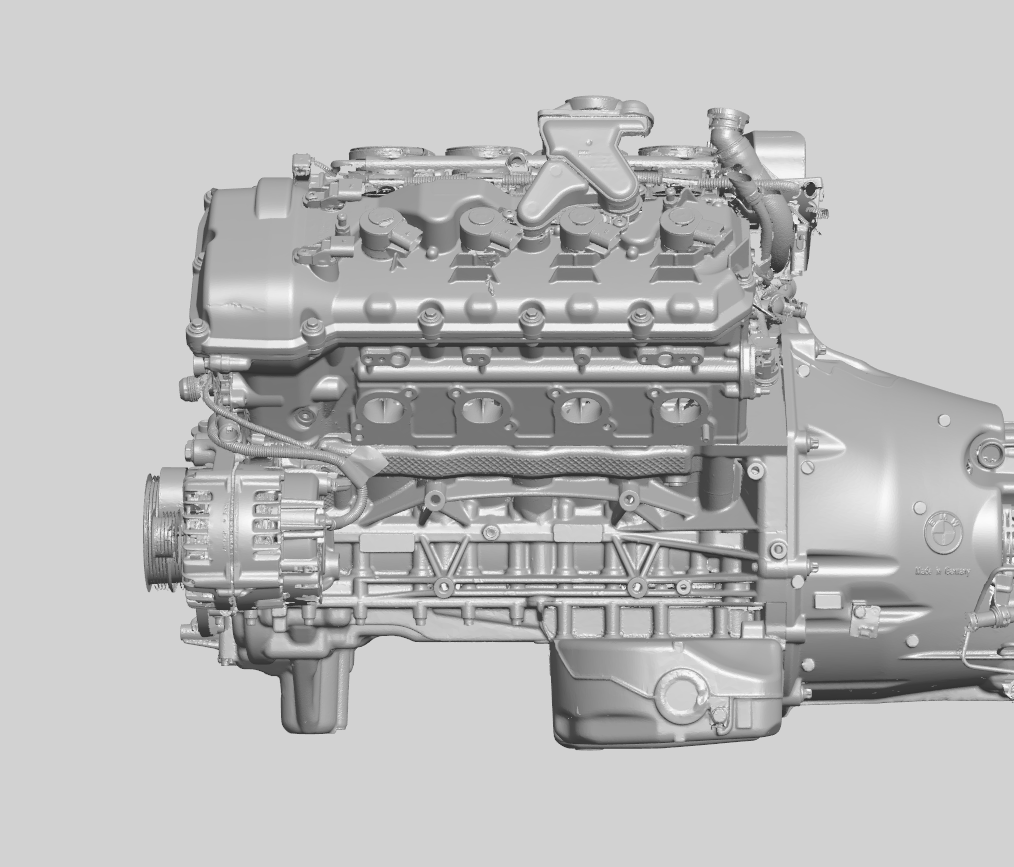

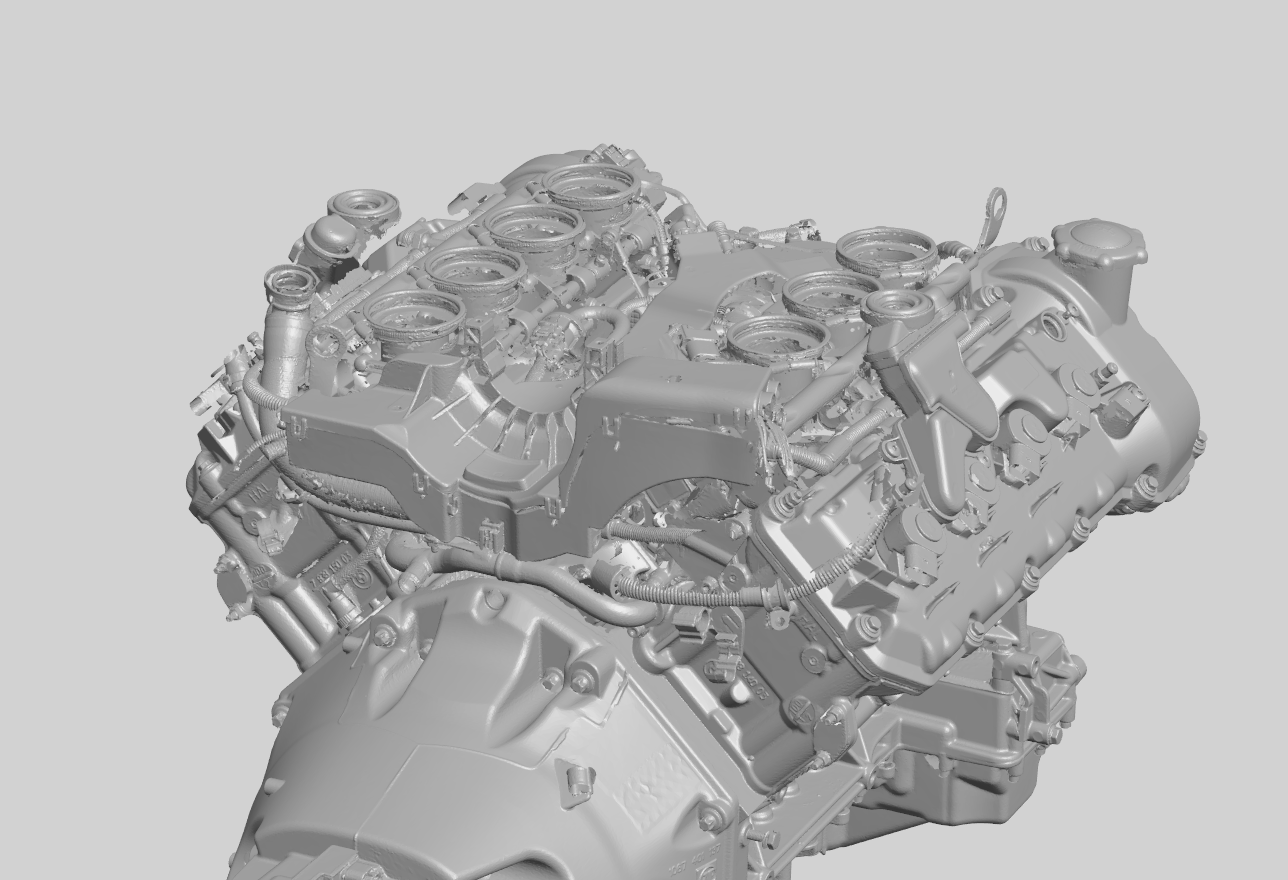

Highly detailed 3D scan of the S65B40 and manual transmission from the e92 M3. Includes an .IGES with CAD primitives fit to various features of the engine to aid in your design process. This engine is missing most of the ancillaries as well as the oil filter housing.

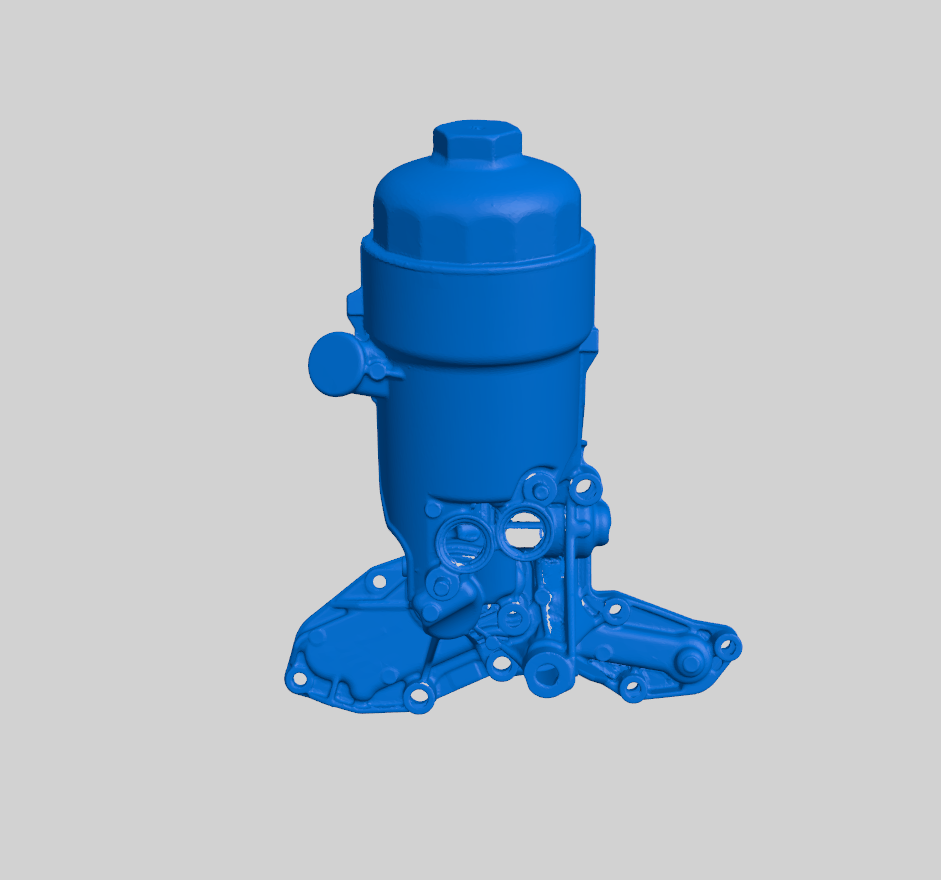

The oil filter housing and LH/RH headers are included as separate STL files, these are in a separate coordinate system, please use the CAD primitives to align them.
Global coordinate system is aligned to the crank pulley allowing for easy placement in your CAD suite.
The BMW S65B40 is a 4.0-liter naturally aspirated V8 engine that powered the E90, E92, and E93 BMW M3 models from 2007 to 2013, marking the first and only time a V8 engine was used in a production M3.
This product contains:

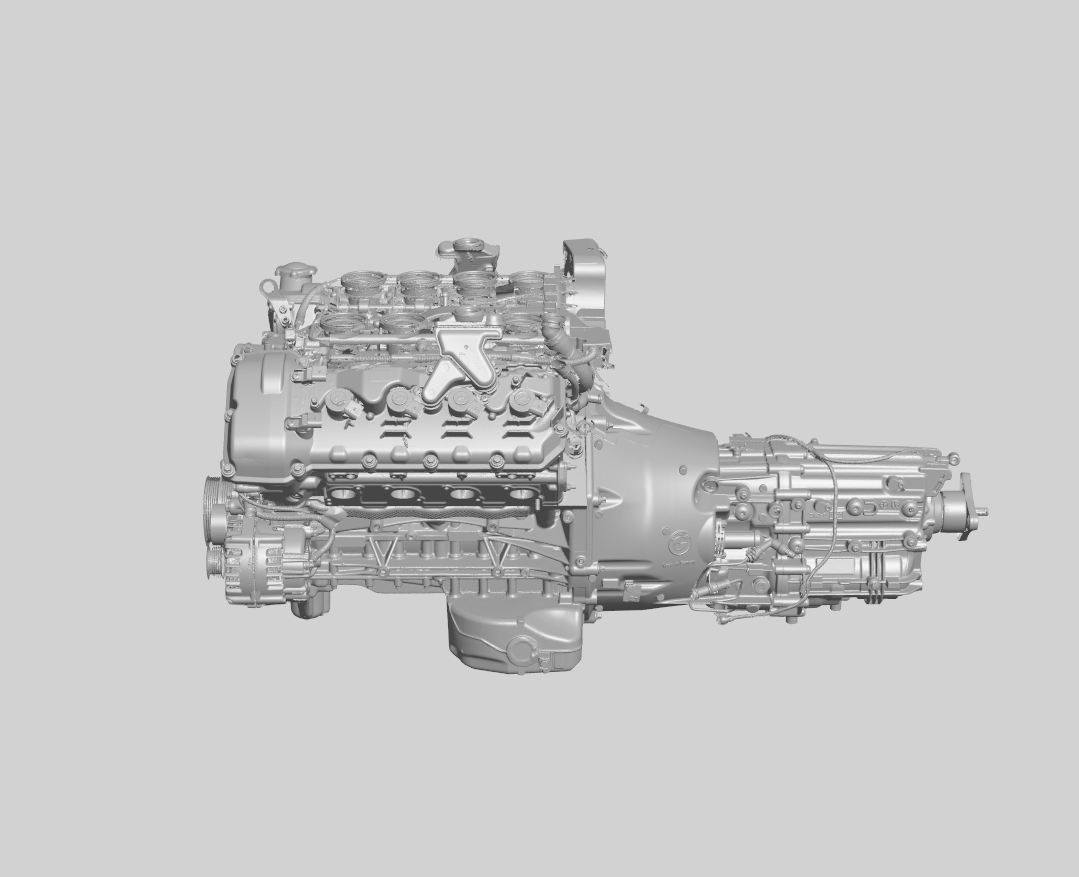

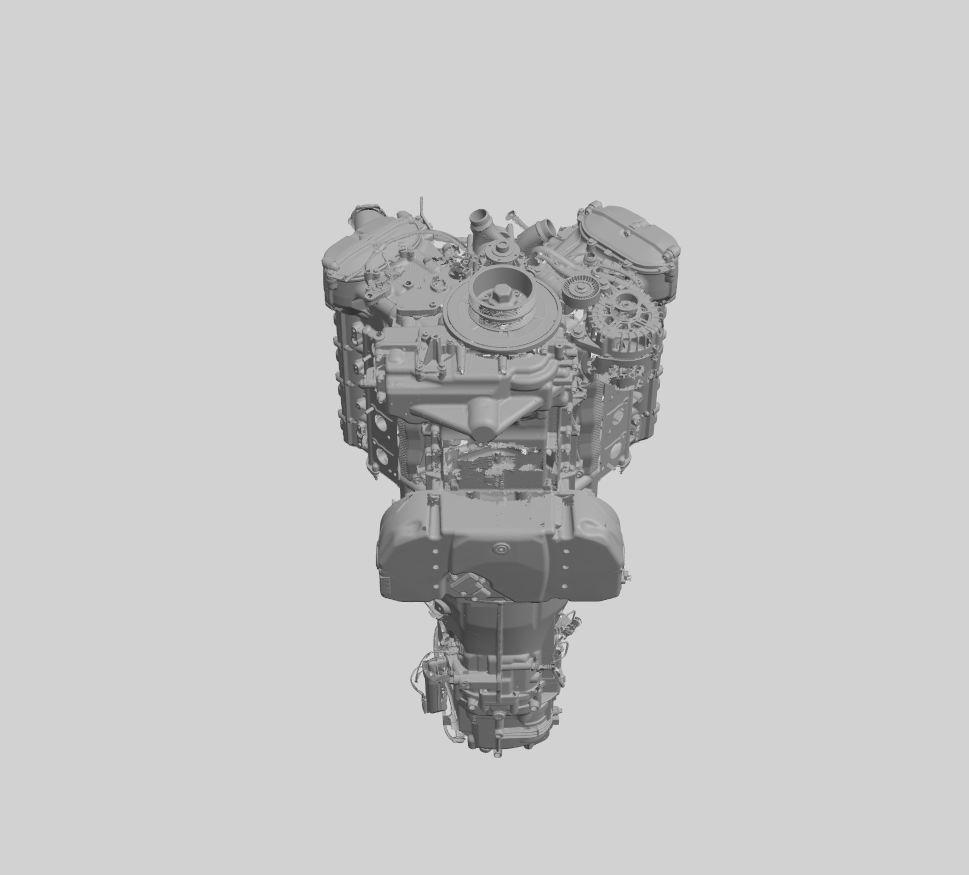

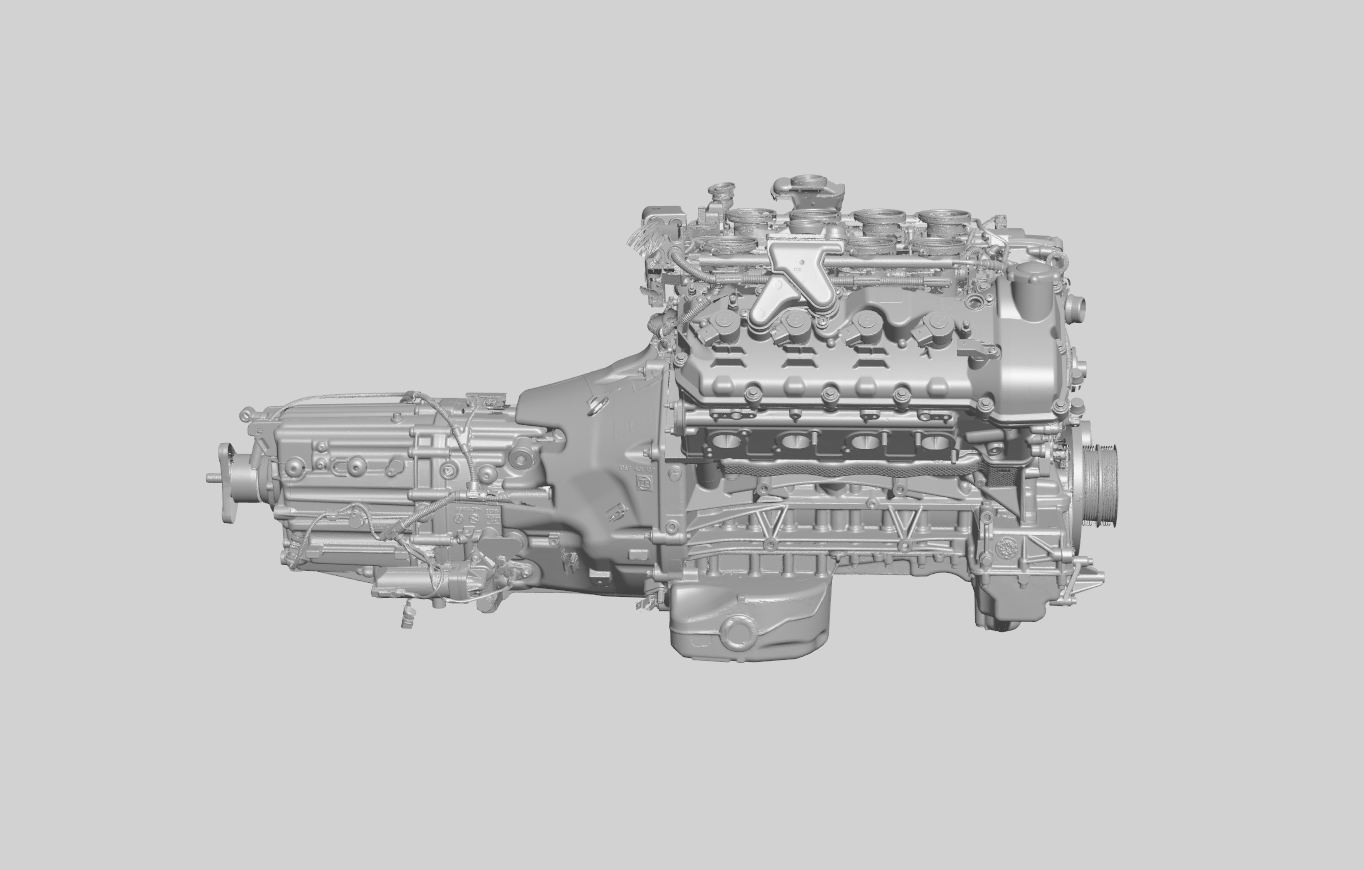

STL of S65B40 and ZF Manual Transmission
IGES of CAD primitives for S65B40 and ZF transmission

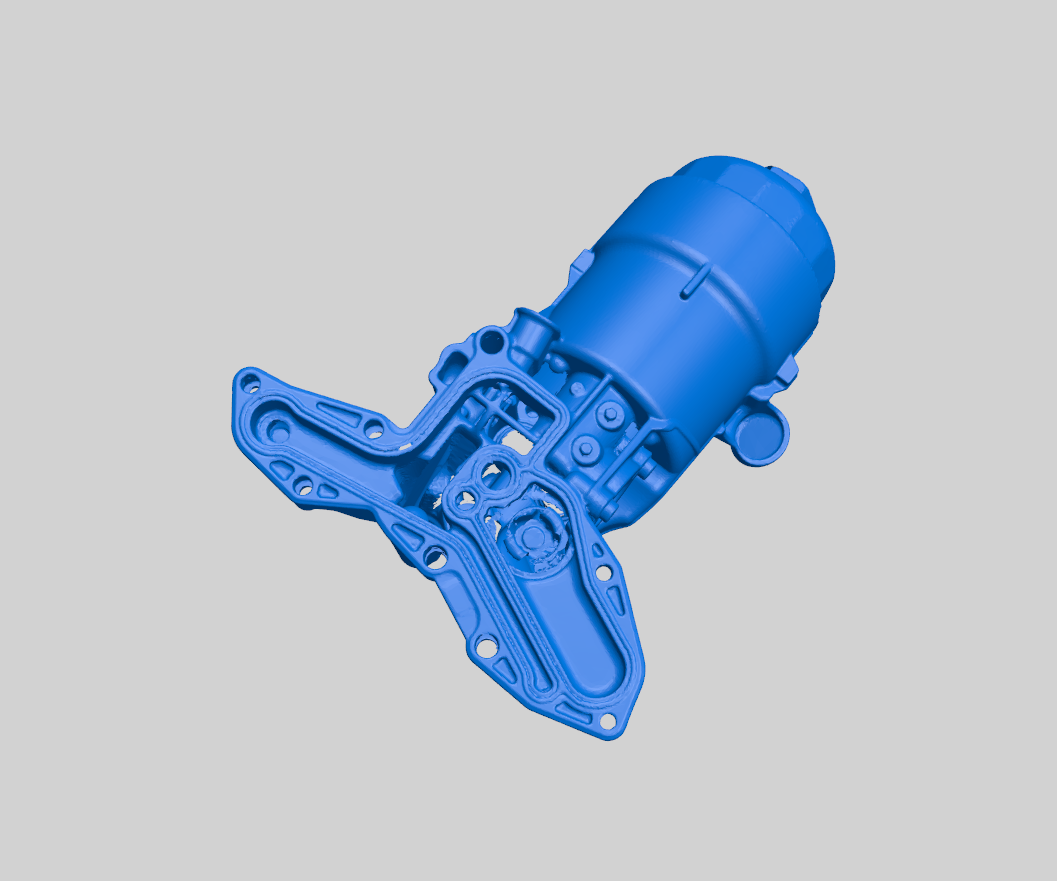

STL of oil filter housing
STP of CAD primitives for oil filter housing

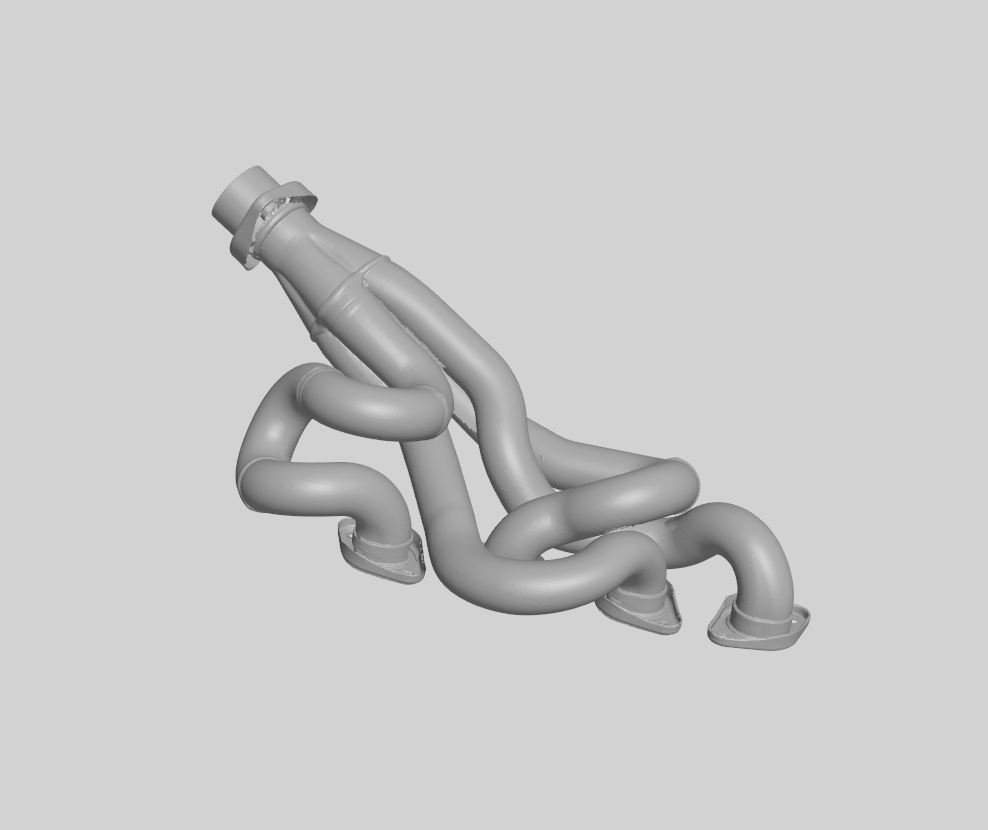

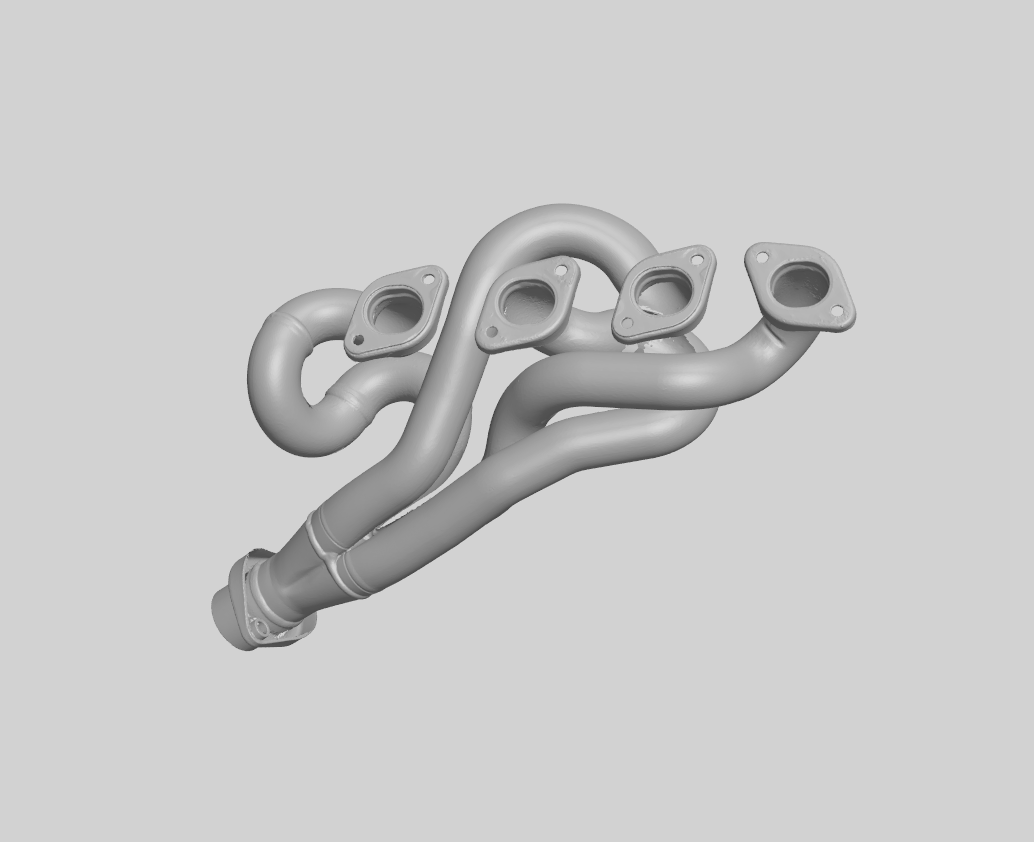

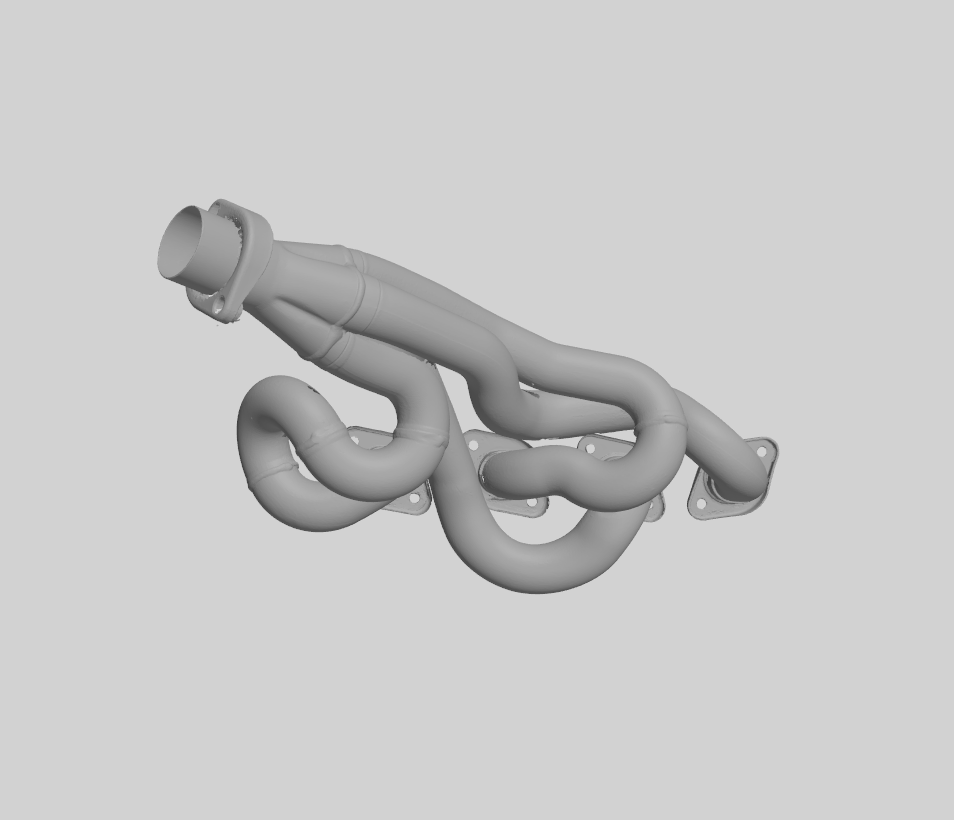

STL of LH and RH headers
IGES of CAD primitives for both LH and RH headers
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
