Contributor: Tim Roetz

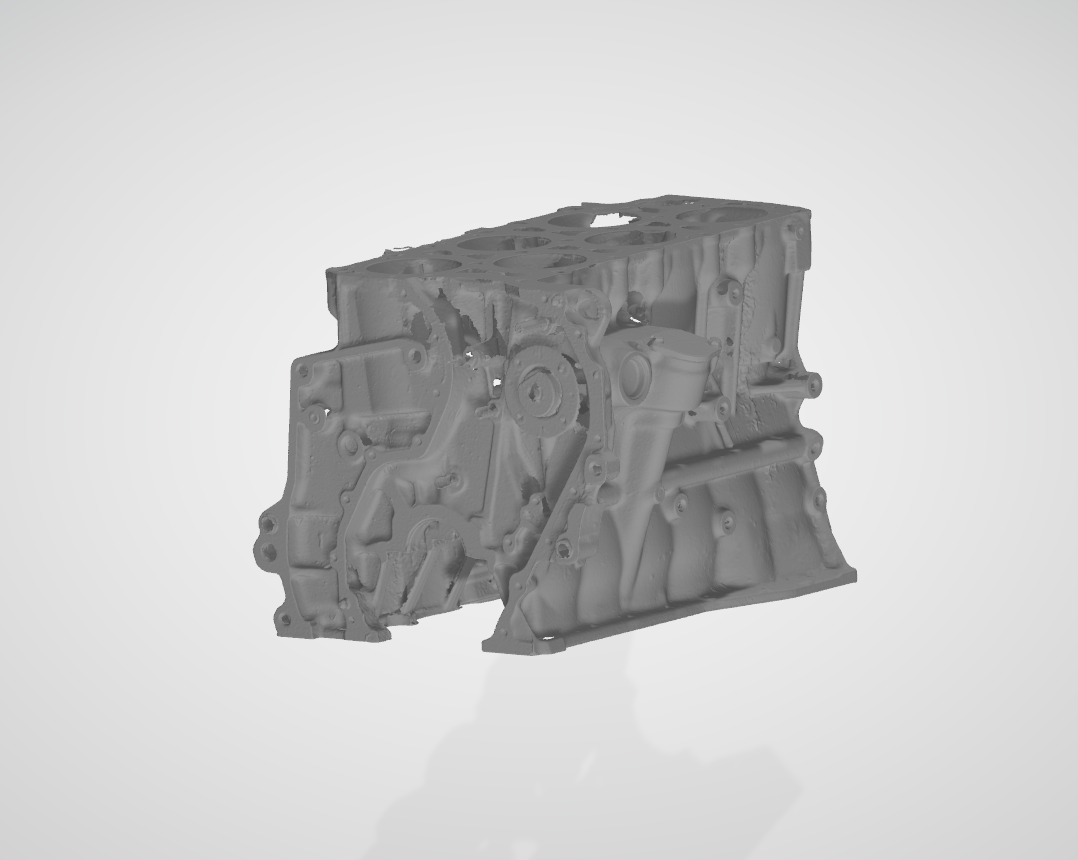

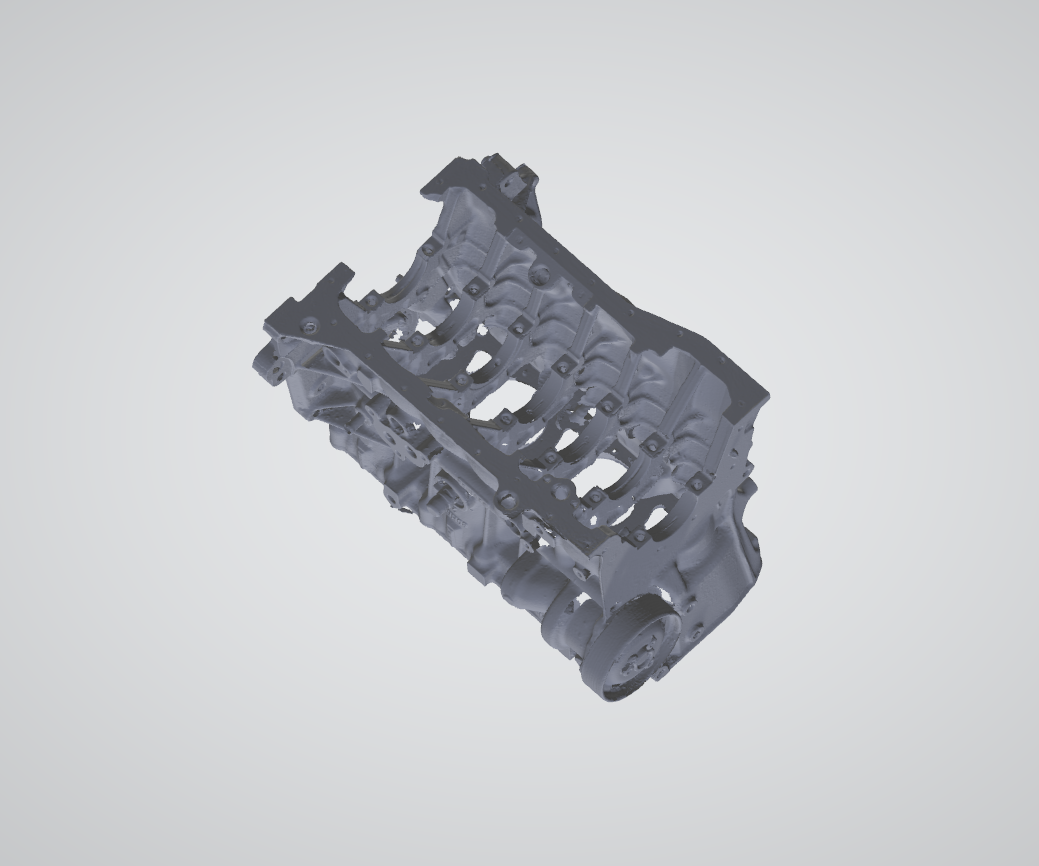

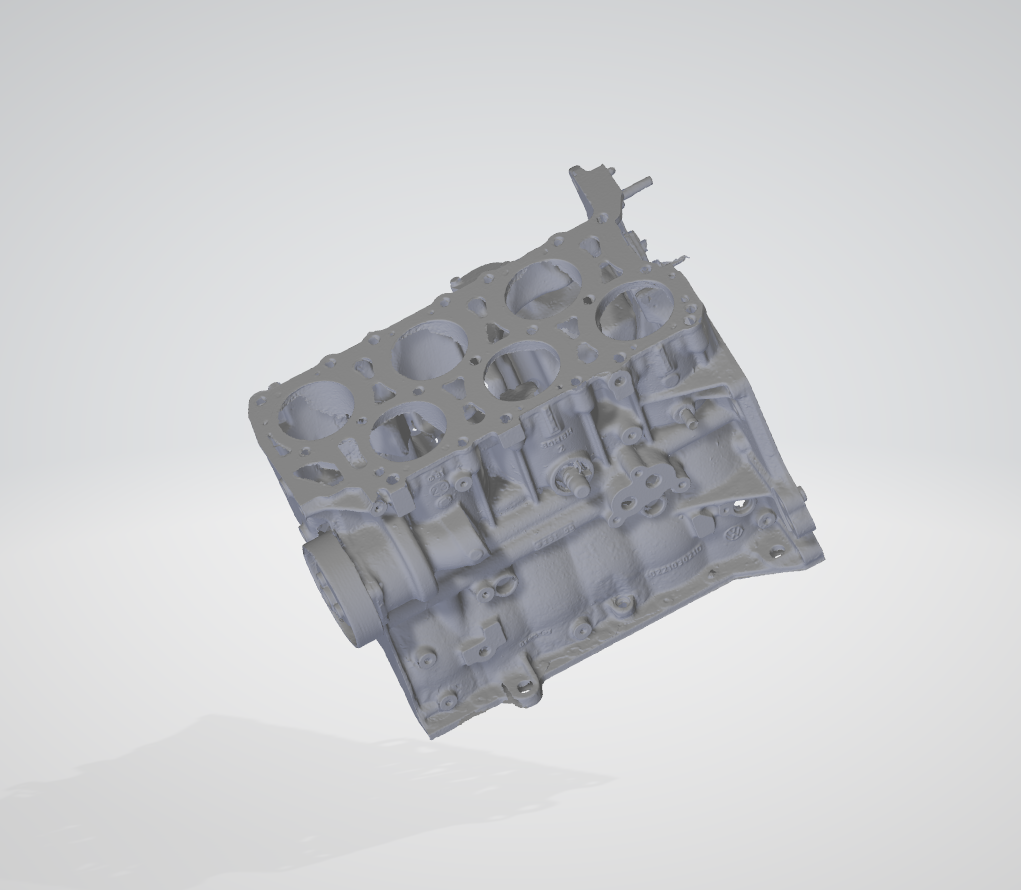

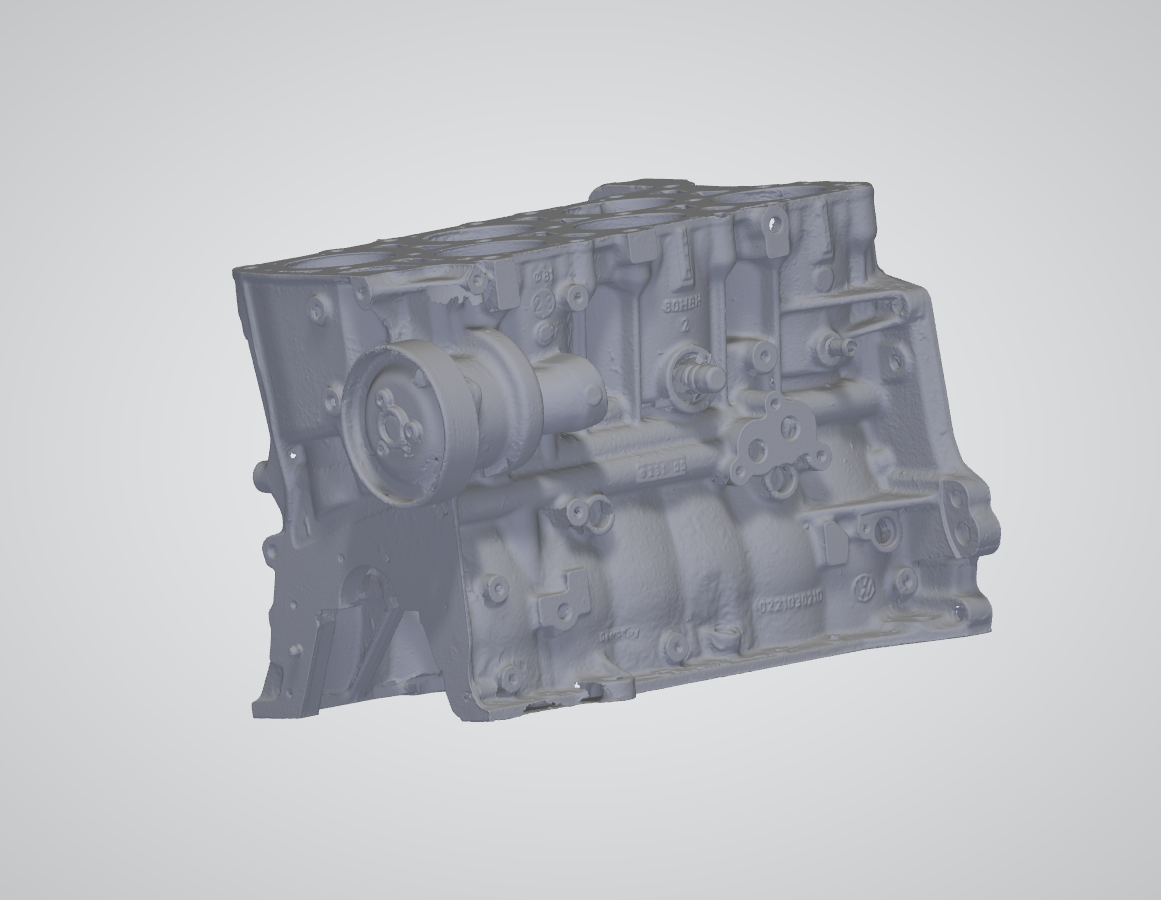

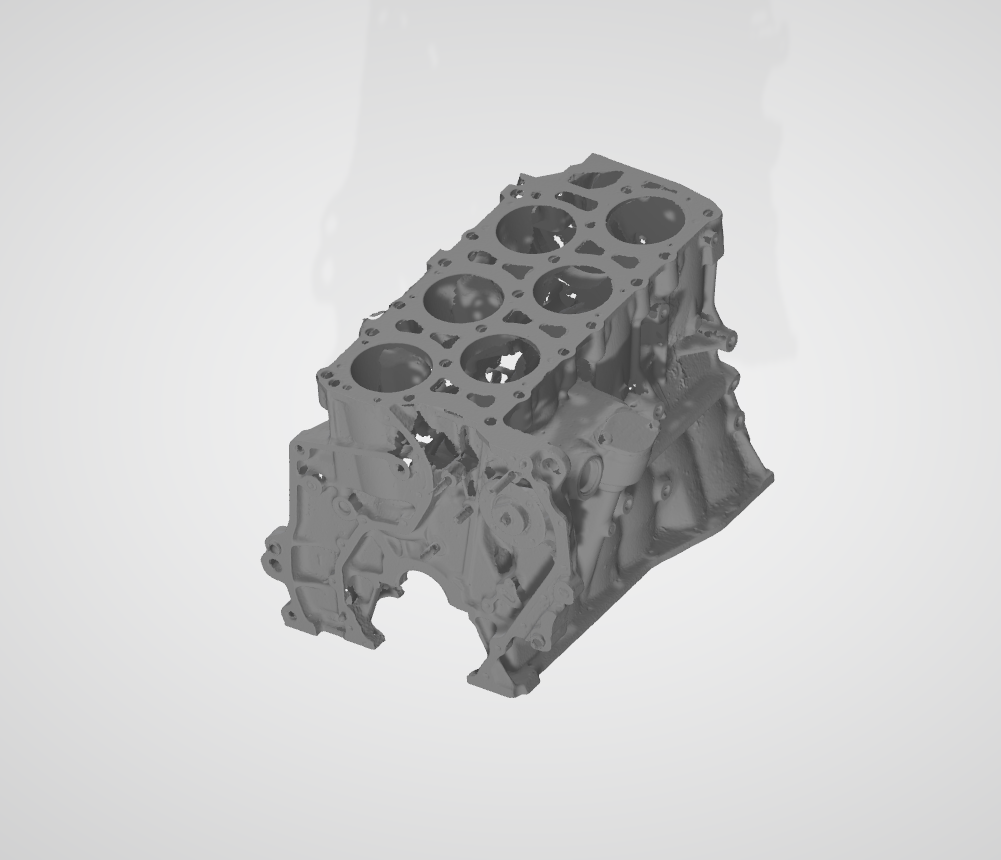

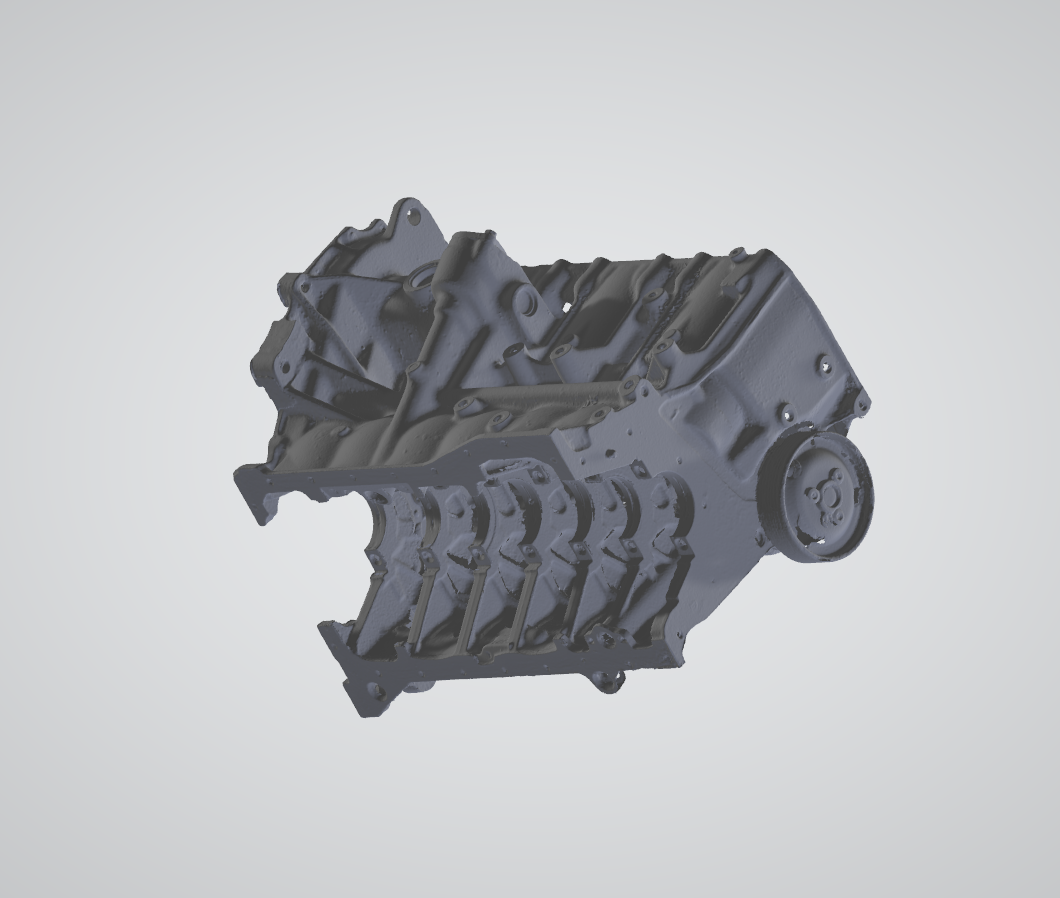

Scan of VR6 Block - 24v 3.2L, applicable to vehicles 2003-2009
Due to size limitations the scan’s intensity was reduced, please contact us for the high intensity scan, we will provide it at no additional cost.
The 3.2L 24v VR6 engine block is a robust cast iron component designed for high durability and performance, capable of handling substantial torque and supporting power levels up to 1000HP with appropriate modifications. The block is compatible with various vehicles, including the VW Golf R32 (MK4, MK5), Audi TT 3.2 (MK1, MK2), Audi A3 3.2, and VW Passat 3.2.
Note from Contributor: Scan used to reverse engineer gearbox adapters and engine mounts for different chassis
Scan is in STL format - NOT SOLID MODEL
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
