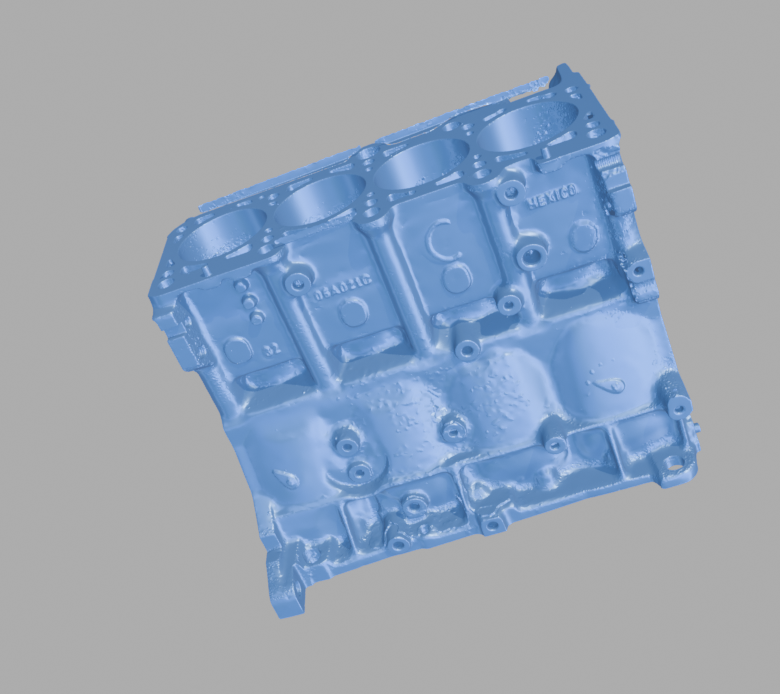

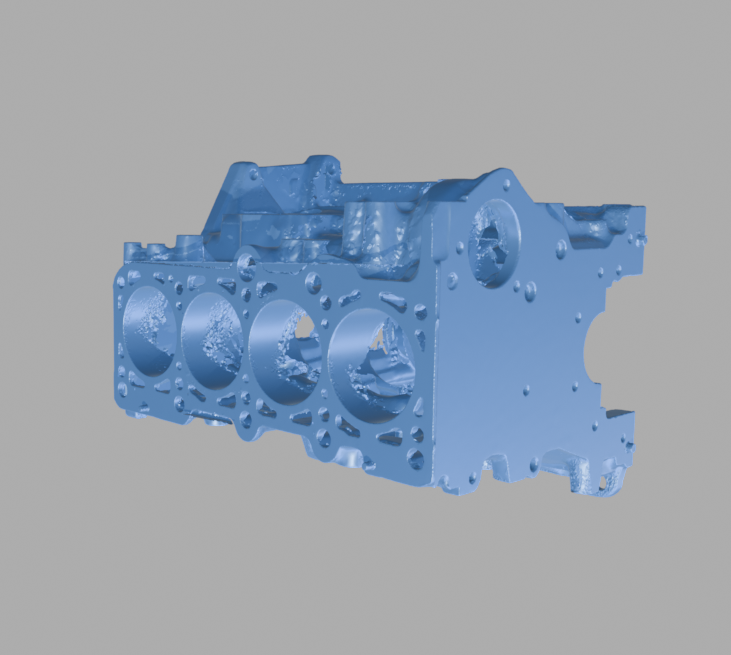

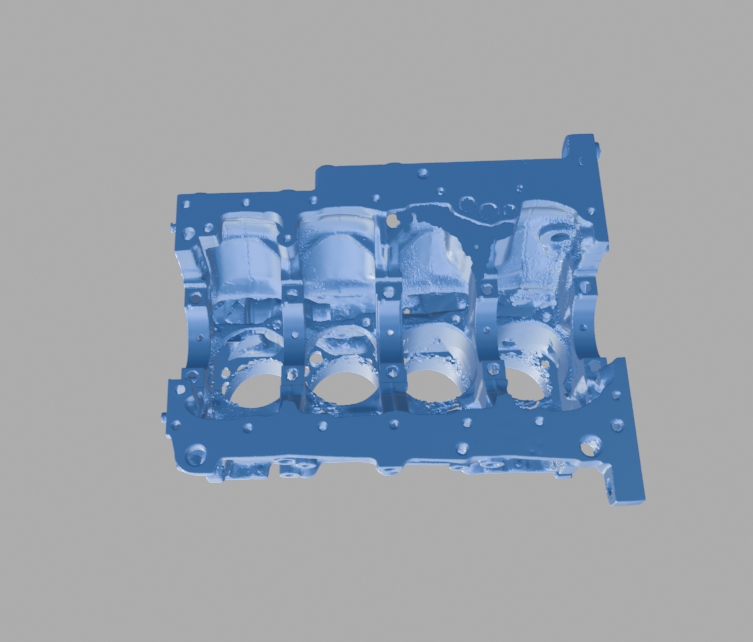

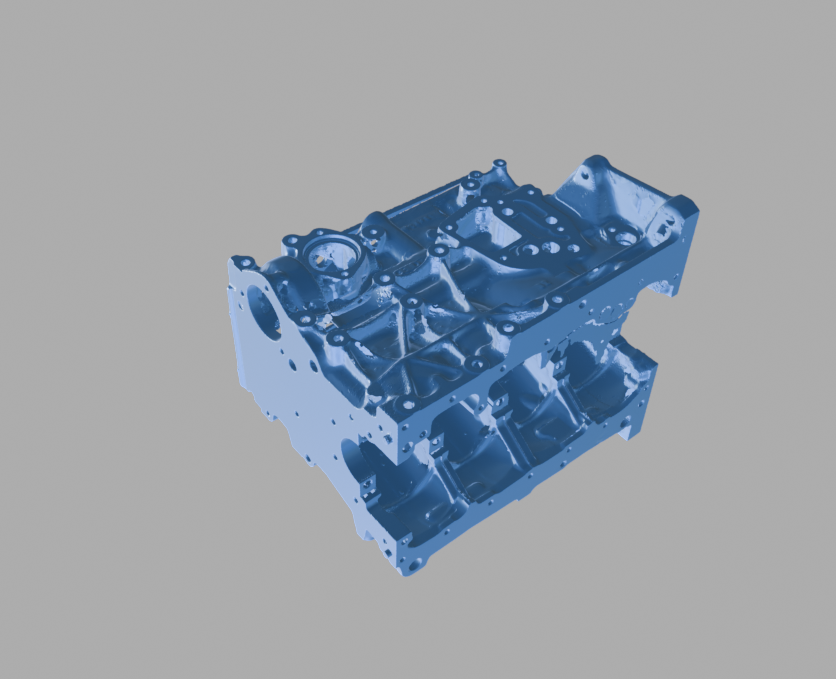

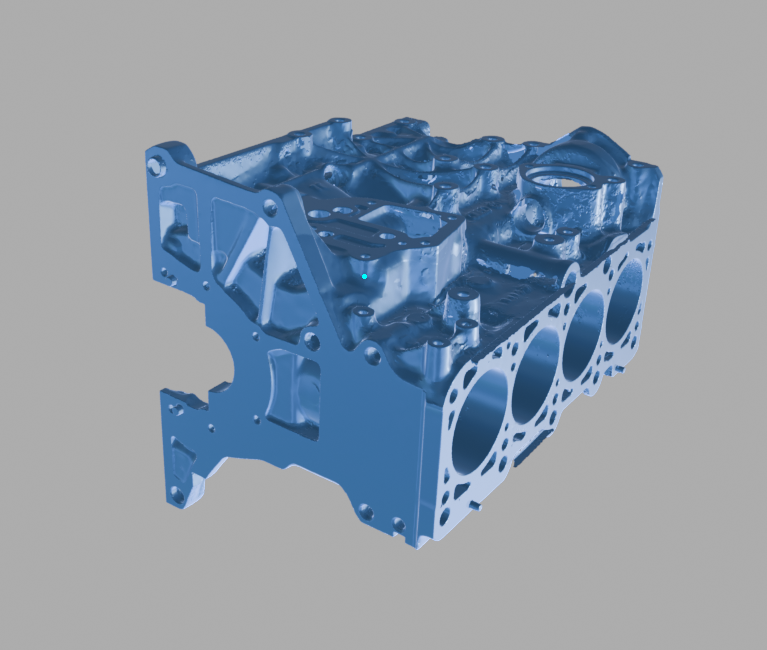

This listing provides a high-resolution 3D scan of a 06A 1.8T engine block used in late-model Mk4/A4 Volkswagen Group vehicles, including the 2000.5–2005 Golf GTI, Jetta, Bora, Beetle, and Passat. The scan captures the external casting geometry, mounting points, and key interface features, making it ideal for engine development, fitment validation, and reverse engineering applications.
This is a cast iron inline 4-cylinder engine block from the later 1.8T generation, featuring the internal water pump port design characteristic of the 06A platform. It represents the evolution of Volkswagen’s small displacement turbo engines within this era.
The scan captures detailed external geometry including engine mounts, accessory mounting points, and major interfaces, making it suitable for integration into engine bay packaging studies, custom fabrication, and CAD-based workflows.
Scan Compatibility
Compatible with 06A 1.8T engine applications found in 2000.5–2005 Volkswagen Golf GTI, Jetta, Bora, Beetle, and Passat models (please verify specific variant and configuration for your application).
Common Applications
Engine bay layout and packaging
Engine mount and bracket development
Turbo system and accessory integration
Custom engine swap and fabrication projects
Reverse engineering for replacement or performance parts
3D visualization and simulation
File Suitability
Ideal for CAD reference, packaging studies, and vehicle engineering workflows.
Important Notes
Scan is not watertight or fully complete; some areas may require cleanup or surface reconstruction depending on your use case.
External geometry only, no internal components are included.
Includes internal water pump port geometry where externally visible.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
