Contributor: Daniel Ferreira

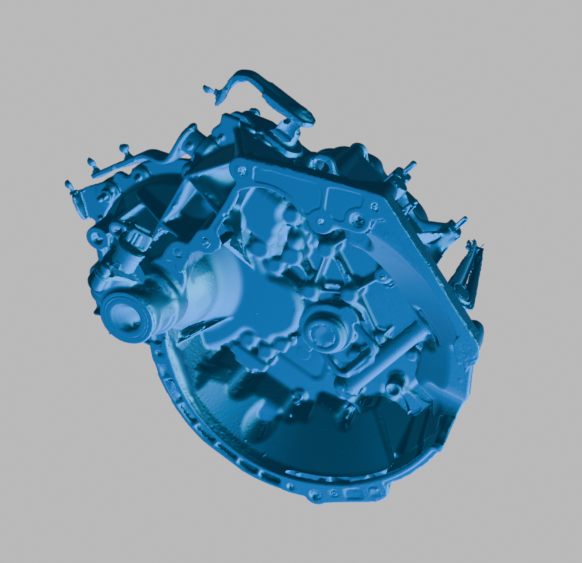

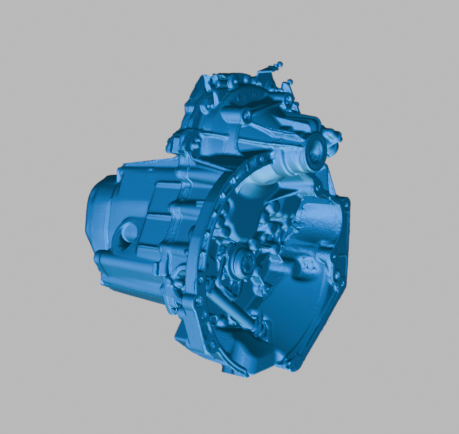

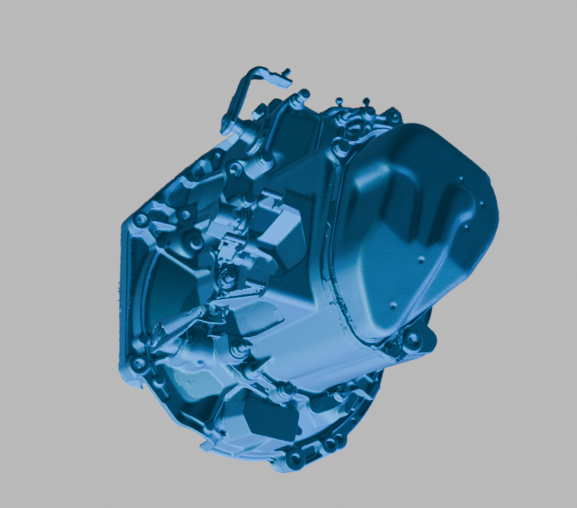

This listing provides a high-resolution 3D scan of the MA type gearbox used in Peugeot and Citroën models, including the 1997 Peugeot 106 GTi / Rallye and Citroën Saxo VTS. The scan captures the external casing geometry, mounting points, and key interface features, making it ideal for drivetrain development, fitment validation, and reverse engineering applications.
The scan captures detailed external geometry and mounting interfaces, making it suitable for integration within vehicle assemblies, drivetrain packaging studies, and custom component design in CAD environments.
Scan Compatibility
Compatible with MA type gearboxes found in Peugeot 106 GTi / Rallye and Citroën Saxo VTS models (verify fitment for specific years and variants).
Drivetrain and gearbox integration studies
Aftermarket component fitment validation
Custom mount and adapter design
Reverse engineering for replacement or performance parts
3D visualization and simulation
Ideal for CAD reference, packaging design, and vehicle engineering workflows.
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
