1997 Peugeot 106 GTi / Rallye & Saxo VTS Engine Bay – 3D Scan (STL) [Item: DFE]

Contributor: Daniel Ferreira

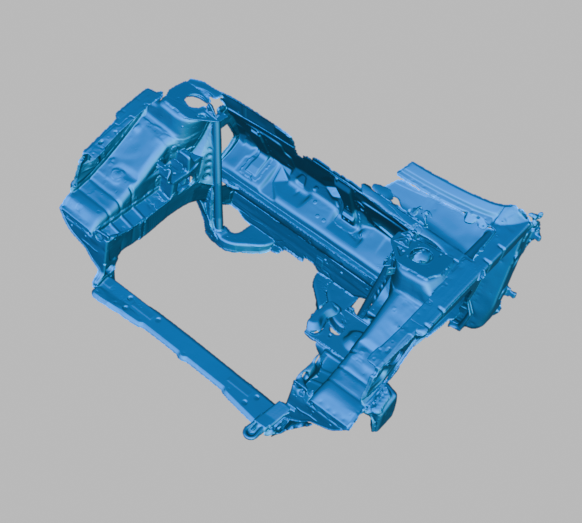

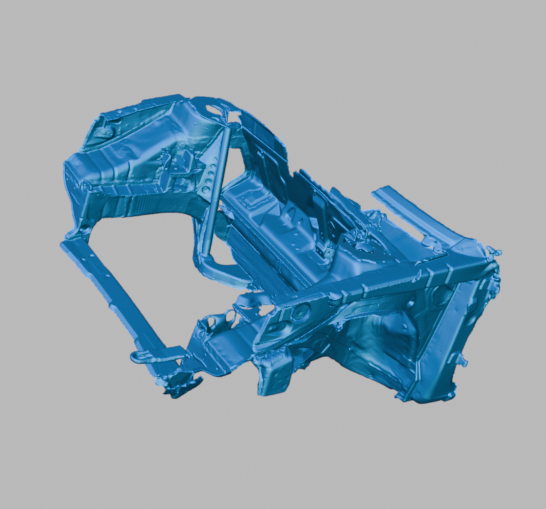

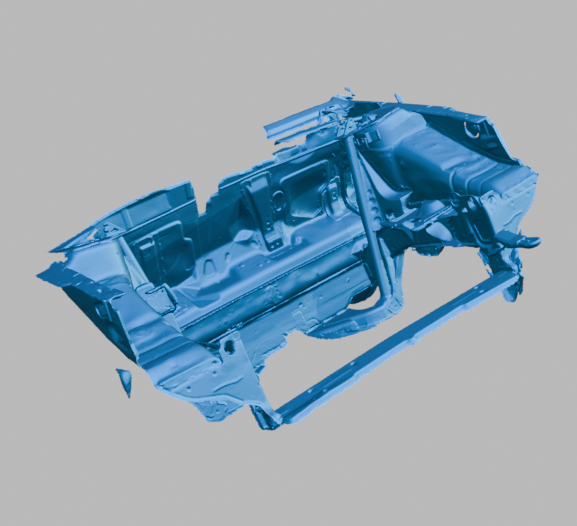

This listing provides a high-resolution 3D scan of the engine bay for the 1997 Peugeot 106 GTi / Rallye and Citroën Saxo VTS, capturing the structural geometry, mounting points, and key interface features within the engine compartment. The scan is ideal for drivetrain swaps, component packaging, and reverse engineering applications, offering accurate reference data for restoration, motorsport builds, or custom fabrication.

The scan captures detailed structural geometry and mounting interfaces, making it suitable for integration studies, engine and gearbox fitment, and CAD-based development workflows.

Scan Compatibility
Compatible with 1997 Peugeot 106 GTi / Rallye and Citroën Saxo VTS models (verify fitment for specific years and variants).

Common Applications

• Engine and drivetrain swap planning

• Component packaging and clearance studies

• Custom mount and bracket design

• Reverse engineering for restoration or motorsport builds

• 3D visualization and simulation

File Suitability

Ideal for CAD reference, packaging design, and vehicle engineering workflows.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
