1997 Peugeot 106 GTi / Rallye S2 Steering Rack – 3D Scan (STL) [Item: DFE]

Contributor: Daniel Ferreira

This listing provides a high-resolution 3D scan of the steering rack for the 1997 Peugeot 106 GTi / Rallye S2, capturing the external housing geometry, mounting points, and key interface features. The scan is ideal for steering system development, fitment validation, and reverse engineering applications, offering accurate reference data for restoration, aftermarket upgrades, or custom fabrication.

The scan captures detailed external geometry and mounting interfaces, making it suitable for integration within chassis assemblies, steering linkage design, and packaging studies in CAD environments.

Scan Compatibility
Compatible with 1997 Peugeot 106 GTi / Rallye S2 models (verify fitment for specific years and variants).

Common Applications

• Steering system design and development

• Aftermarket steering component fitment validation

• Chassis integration and packaging studies

• Reverse engineering for replacement or custom parts

• 3D visualization and simulation

File Suitability

Ideal for CAD reference, packaging design, and vehicle engineering workflows.

Disclaimer:

We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.

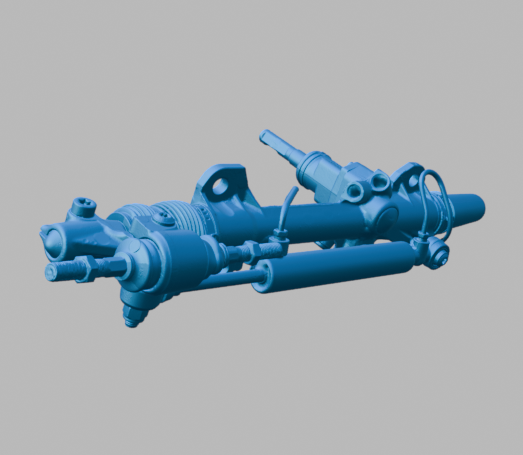

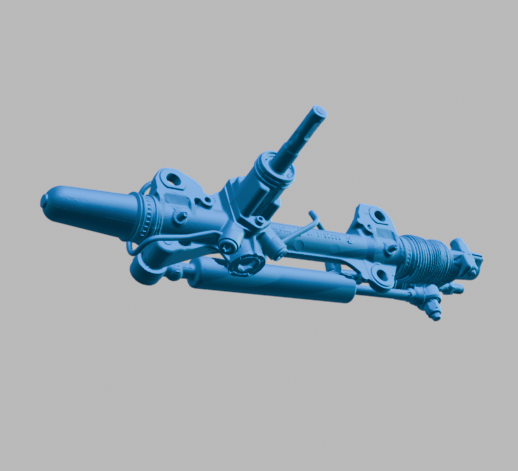

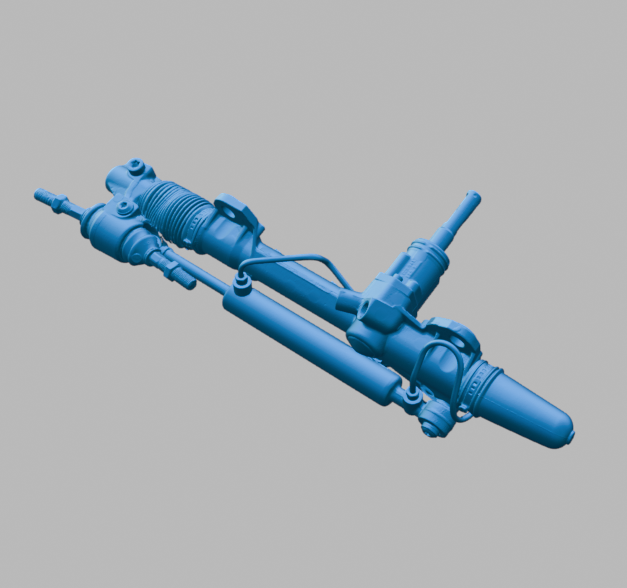

Please refer to the provided part images to evaluate file quality and representation.

While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.

Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
