Contributor: Rocco Cannata

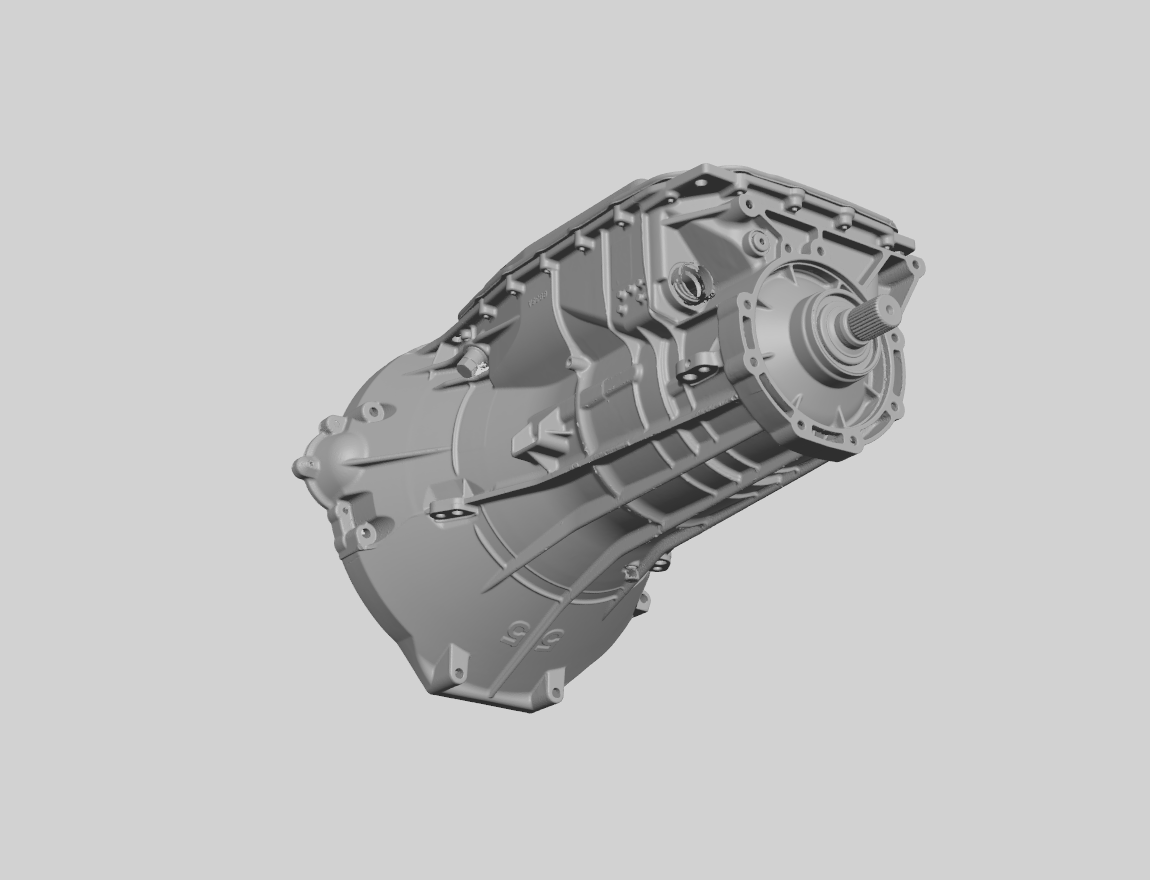

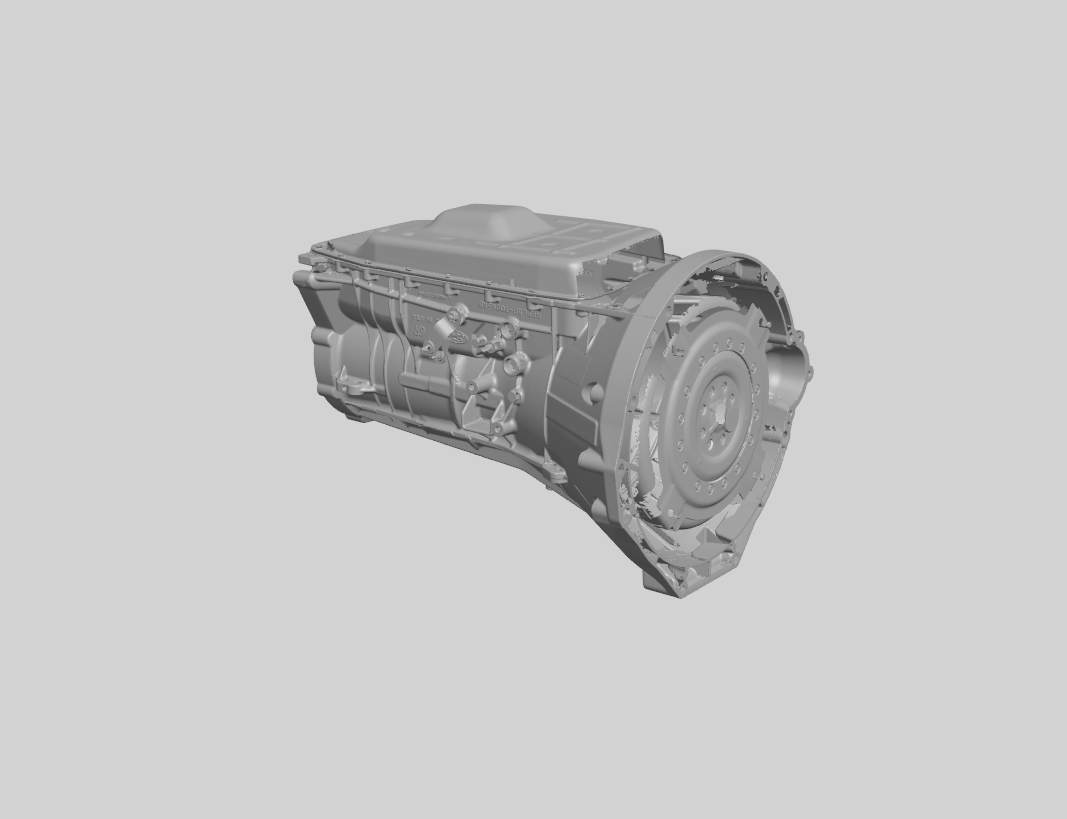

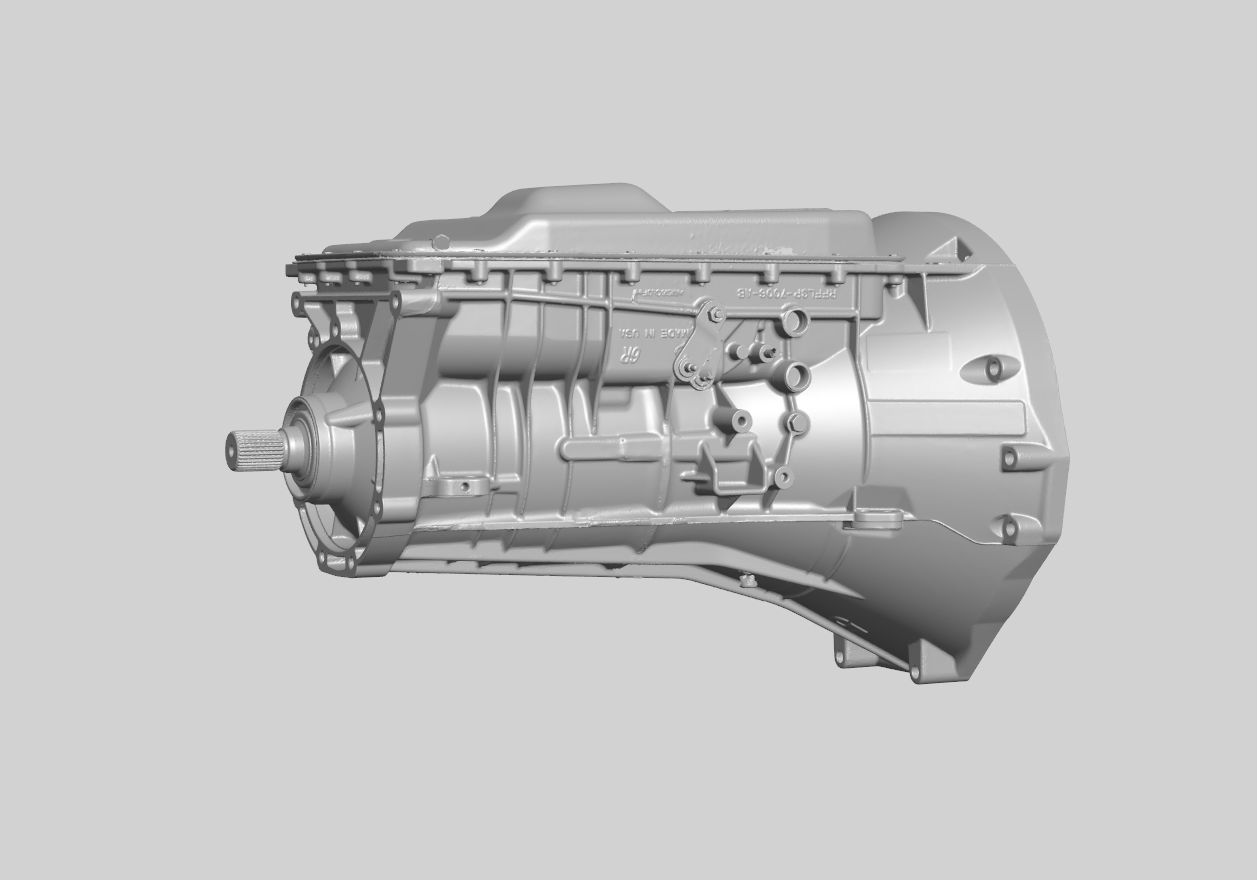

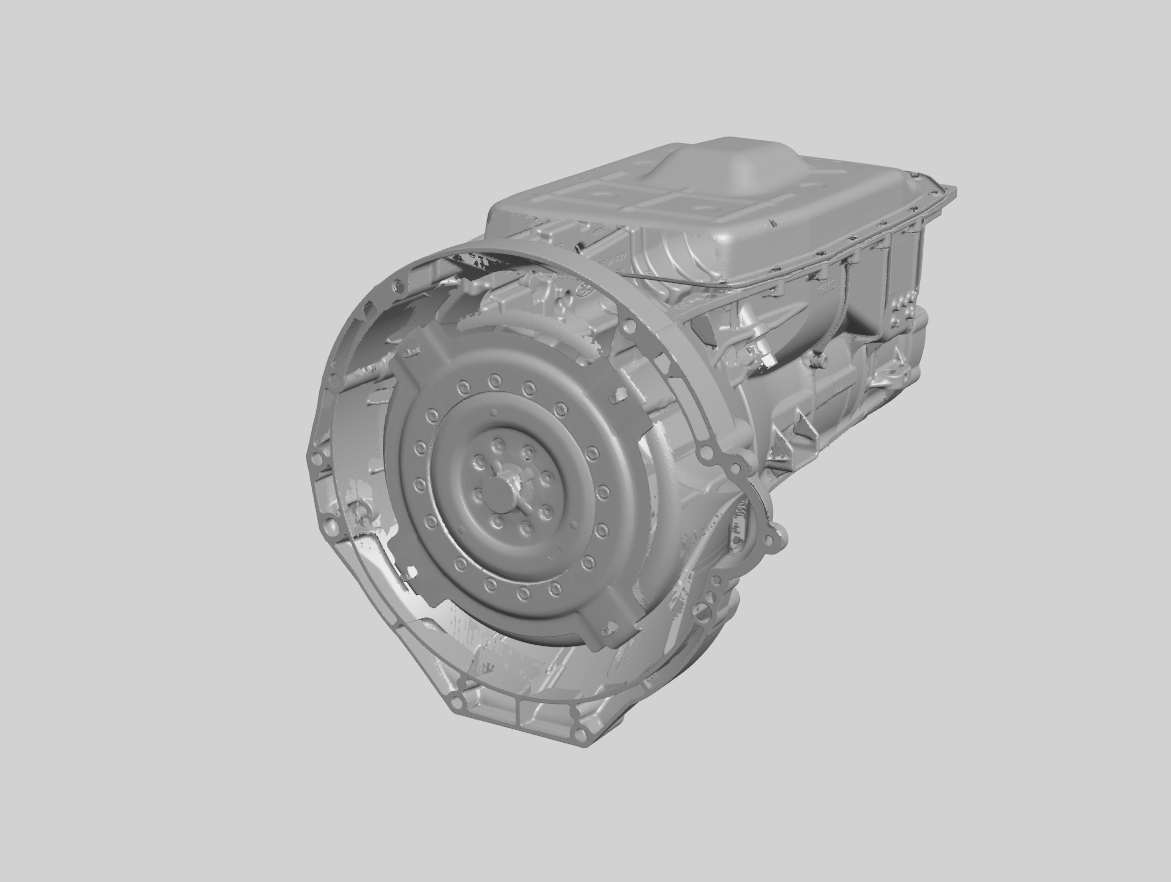

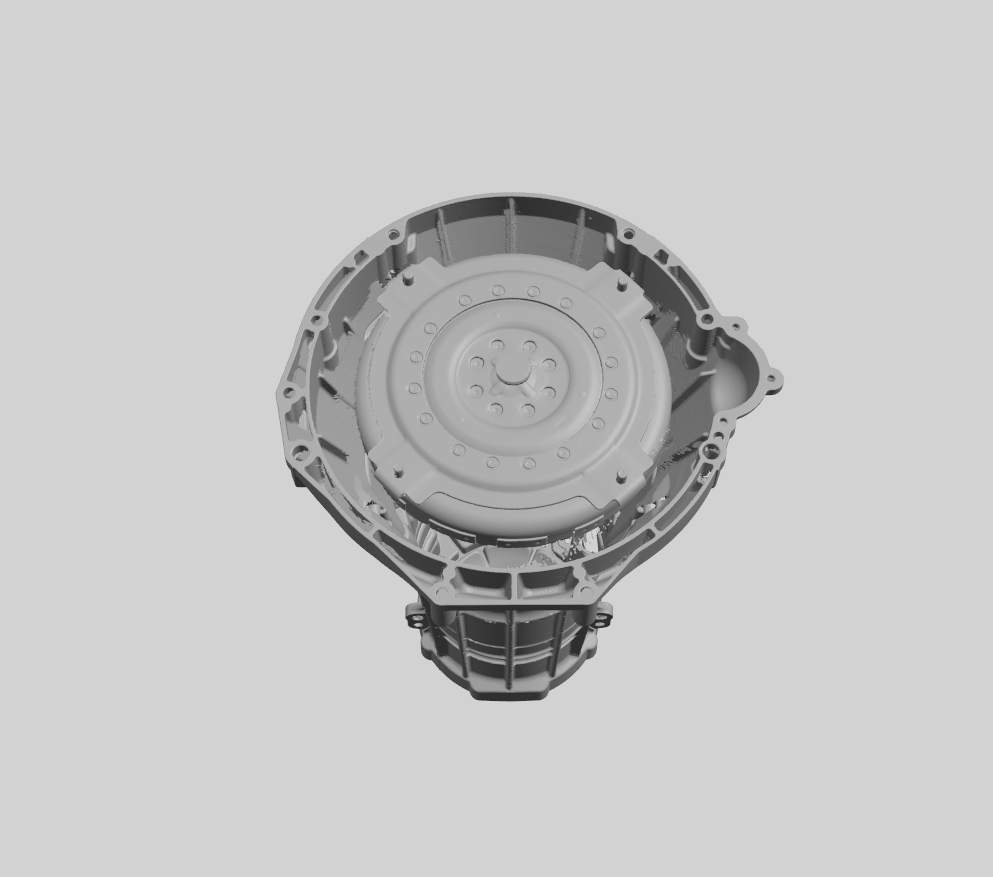

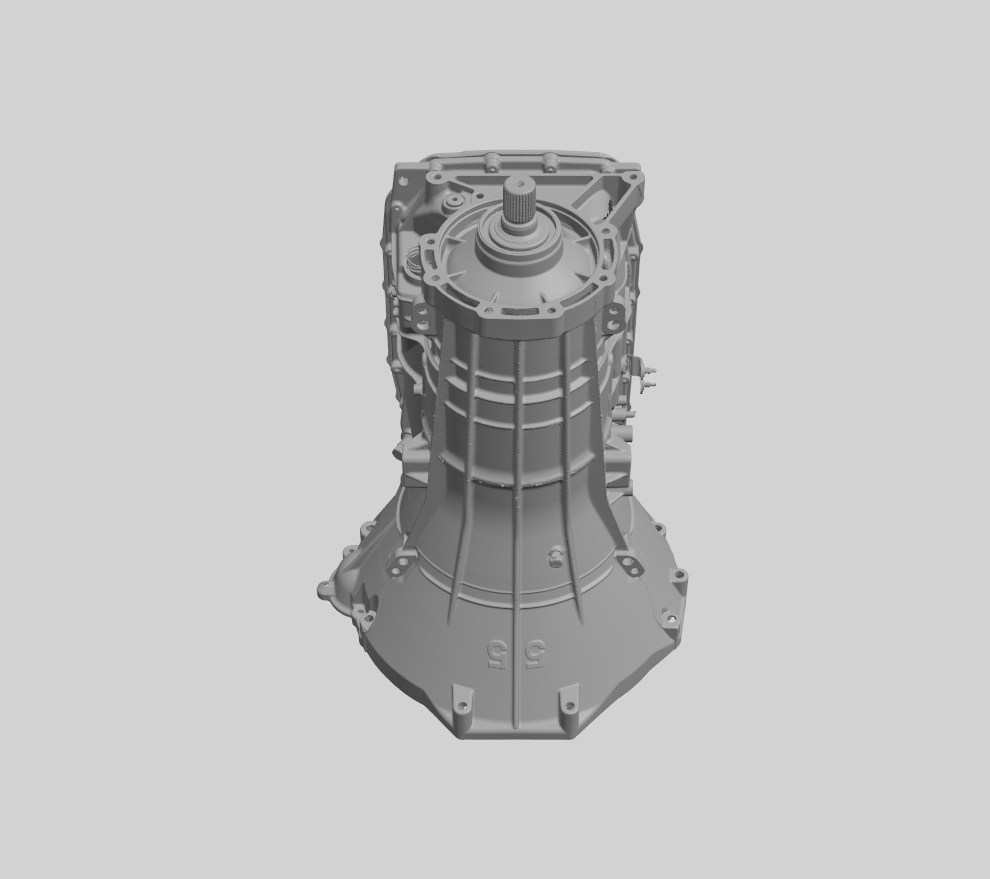

Highly detailed 3D scan that includes an .IGES with CAD primitives fit to various features of the transmission. Both a decimated and high intensity .STL are included.
The 6R80 is used in a variety of Ford vehicles, including the Ford F-150 (2009–2020, with 3.3L V6 from 2018–2020), Ford Expedition (2009–2018), Lincoln Navigator (2009–2018), Ford Mustang (2011–2017), Ford Ranger (2011–present), and Ford Transit (2015–2019).
This product contains an STL file and an IGES file with CAD primitives.
Disclaimer:
We encourage you to download the sample file to assess scan format, output quality, and how it performs in your preferred software. Different packages may interpret scan data differently, so verifying compatibility with your workflow is essential.
Please refer to the provided part images to evaluate file quality and representation.
While every effort is made during scanning to ensure accuracy, we advise verifying critical dimensions against the physical part if your application requires tight tolerances or precise referencing.
Reviewing both the sample file and images will help ensure the scan meets your requirements before purchase.
